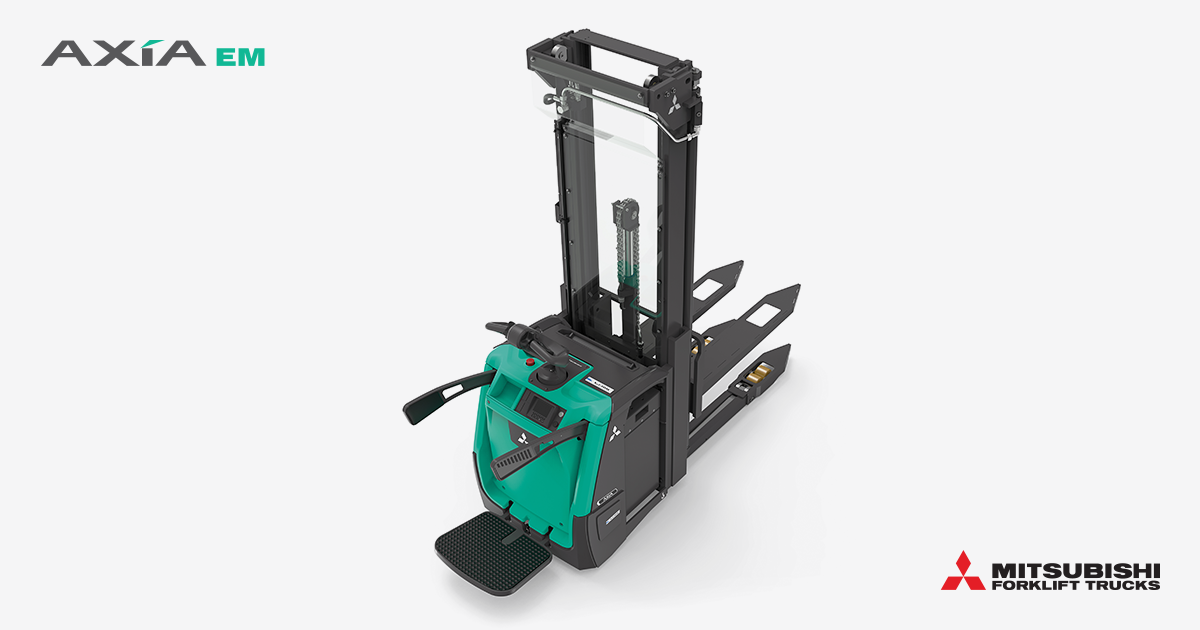

Mitsubishi
SBF16N3IS
3,527 lb (1,600 kg)
Load capacity
Documents
Full specifications
| Acceleration time (10 metres) with/without load | 6.3 / 5.313) s | ↗ |
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 1355 / 189513) kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 1175 / 44513) kg | ↗ |
| Battery voltage/capacity at 5-hour discharge | 24 / 270-400 V/Ah | ↗ |
| Battery weight | 628–772 lb (285–350 kg) | ↗ |
| Drive motor capacity (60 min. short duty) | 2.4 kW | ↗ |
| Energy consumption according to DIN EN 16796 | 0.7216) kWh/h | ↗ |
| Fork carriage width | 28.7 in (730 mm) | ↗ |
| Fork dimensions (thickness, width, length) | 70 / 180 / 1170 mm | ↗ |
| Fork height, fully lowered | 3.7 in (93 mm) | ↗ |
| Free lift (see tables) | ‡ mm | ↗ |
| Gradeability, with/without load | 10.9 / 15.0 % | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 0.8–5.1 in (20–130 mm) | ↗ |
| Height | ‡ mm | ↗ |
| Height of support legs | 87 | ↗ |
| Height of tiller arm/steering console (min./max.) | 1130 / 12978) mm | ↗ |
| Height to top of overhead guard | 89.9 in (2,283 mm) | ↗ |
| Height with mast extended | ‡ mm | ↗ |
| Initial Lift | 4.3 in (110 mm) | ↗ |
| Inner width of support legs | N/A7) mm | ↗ |
| Length to fork face (includes fork thickness) | 55.7 in (1,415 mm) | ↗ |
| Lift height (see tables) | ‡ mm | ↗ |
| Lift motor output at 15% duty factor | 3.015) kW | ↗ |
| Lifting speed, with/without load | 0.16 / 0.28 m/s | ↗ |
| Load capacity | 3,527 lb (1,600 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 31.5 in (800 mm) | ↗ |
| Lowering speed, with/without load | 0.42 / 0.36 m/s | ↗ |
| Manufacturer's model designation | SBF16N3IS | ↗ |
| Number of wheels, front/rear (x=driven) | 150 x 55 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Stand-on | ↗ |
| Outside width over forks (minimum/maximum) | 22.4 in (570 mm) | ↗ |
| Overall length | 102 in (2,585 mm) | ↗ |
| Overall width | 29.4 in (748 mm) | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Battery | ↗ |
| Seat height | 6.7 in (170 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric12) | ↗ |
| Sound pressure level at the driver's seat | <70 dB(A) dB (A) | ↗ |
| Track width (center of tyres), drive side | 19.6 in (497 mm) | ↗ |
| Track width (center of tyres), load side | 15.4 in (390 mm) | ↗ |
| Travel speed, with/without load | 8.5 / 8.5 km/h | ↗ |
| Truck weight without load, with maximum battery weight | 3,704 lb (1,680 kg) | ↗ |
| Turning circle radius | 87.4 in (2,220 mm) | ↗ |
| Type of drive control | AC | ↗ |
| Tyre dimensions, front | 235 x 75 | ↗ |
| Tyre dimensions, rear | 85 x 763) | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | Vul / Vul | ↗ |
| Wheelbase | 60.4 in (1,533 mm) | ↗ |
| Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 118 in (2,986 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
