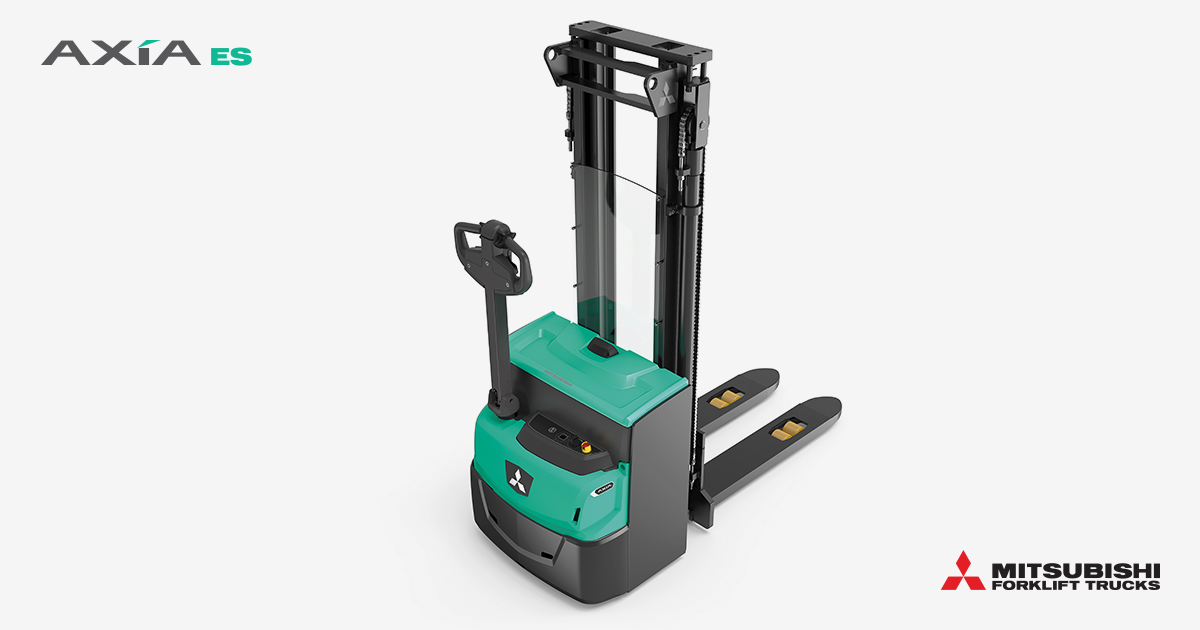

Mitsubishi
SBP16N3IR
3,527 lb (1,600 kg)
Load capacity
Documents
Full specifications
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 1200 / 1575 kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 840/335 kg | ↗ |
| Battery voltage/capacity at 5-hour discharge | 24 / 250 - 375 V/Ah | ↗ |
| Battery weight | 463 lb (210 kg) | ↗ |
| Drive motor capacity (60 min. short duty) | 1.0 kW | ↗ |
| Energy consumption according to DIN EN 16796 | 0.78 kWh/h | ↗ |
| Fork carriage width | 29.5 in (750 mm) | ↗ |
| Fork dimensions (thickness, width, length) | 56 / 186 / 1150 mm | ↗ |
| Fork height, fully lowered | 3.5 in (90 mm) | ↗ |
| Free lift (see tables) | ‡ mm | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 0.8 in (20 mm) | ↗ |
| Height of tiller arm/steering console (min./max.) | 1155 / 1550 mm | ↗ |
| Height with mast extended | ‡ mm | ↗ |
| Initial Lift | 7.9 in (200 mm) | ↗ |
| Length to fork face (includes fork thickness) | 975 / 1455 mm | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 487, drive/lift/idle LpAZ | < 2.5 dB(A) | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 4871 in work LpAZ | 0.8 dB(A) | ↗ |
| Lift height (see tables) | ‡ mm | ↗ |
| Lift motor output at 15% duty factor | 3.2 kW | ↗ |
| Lifting speed, with/without load | 0.15 / 0.32 m/s | ↗ |
| Load capacity | 3,527 lb (1,600 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 36.4 in (925 mm) | ↗ |
| Lowering speed, with/without load | 0.43 / 0.34 m/s | ↗ |
| Manufacturer's model designation | SBP16N3IR | ↗ |
| Maximum gradeability, with/without load | 8 / 15 s | ↗ |
| Number of wheels, front/rear (x=driven) | 125 x 60 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Pedestrian / Stand-on | ↗ |
| Outside width over forks (minimum/maximum) | 22.4 in (570 mm) | ↗ |
| Overall length | 2125 / 2605 mm | ↗ |
| Overall width | 31.5 in (800 mm) | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Battery | ↗ |
| Seat height | 6.9 in (175 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | ↗ |
| Track width (center of tyres), drive side | 20.3 in (515 mm) | ↗ |
| Track width (center of tyres), load side | 15.2 in (385 mm) | ↗ |
| Travel speed, with/without load | 6.0 / 6.0 km/h | ↗ |
| Truck weight without load, with maximum battery weight | 2,590 lb (1,175 kg) | ↗ |
| Turning circle radius | 1972 / 2452 mm | ↗ |
| Type of drive control | Stepless | ↗ |
| Tyre dimensions, front | 230 x 70 | ↗ |
| Tyre dimensions, rear | 85 x 75 | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | Vul / Vul | ↗ |
| Wheelbase | 63.4 in (1,610 mm) | ↗ |
| Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 2657 / 3137 mm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
