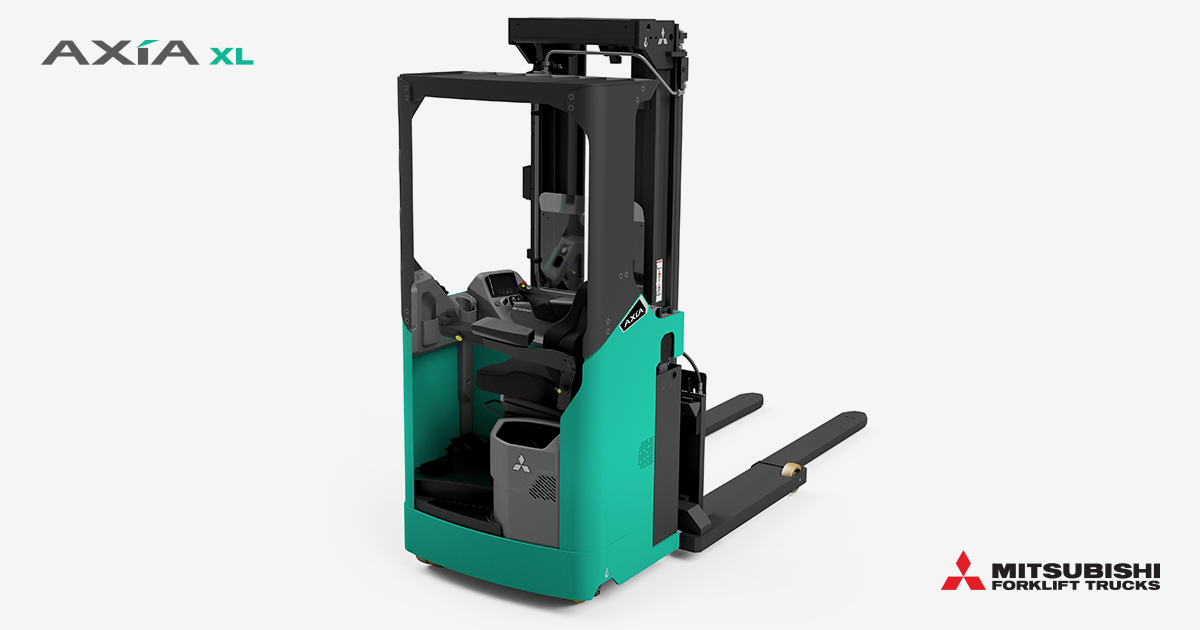

Mitsubishi
SBS12N2TF
2,646 lb (1,200 kg)
Load capacity
Documents
Full specifications
| Acceleration time (10 metres) with/without load | 6.5 / 5.5 s | ↗ |
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 1545 / 1833 kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 1525 / 653 kg | ↗ |
| Battery to DIN 43 531/35/36 A/B/C/no | DIN-cells | ↗ |
| Battery voltage/capacity at 5-hour discharge | 24 / 4656) V/Ah | ↗ |
| Battery weight | 330-4106) kg | ↗ |
| Drive motor capacity (60 min. short duty) | 2.7 kW | ↗ |
| Energy consumption according to DIN EN 16796 | 0.877) kWh/h | ↗ |
| Fork carriage to DIN 15 173 A/B/no | FEM 3/A | ↗ |
| Fork carriage width | 32.3 in (820 mm) | ↗ |
| Fork dimensions (thickness, width, length) | 57 / 169 / 1200 mm | ↗ |
| Fork height, fully lowered | 2.6 in (65 mm) | ↗ |
| Free lift (see tables) | ‡ mm | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 1.6 in (40 mm) | ↗ |
| Height | ‡ mm | ↗ |
| Height of support legs | 110 | ↗ |
| Height to top of overhead guard | 83.1 in (2,110 mm) | ↗ |
| Height with mast extended | ‡ mm | ↗ |
| Length to fork face (includes fork thickness) | 11472) mm | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 487, drive/lift/idle LpAZ | see instruction handbook dB(A) | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 4871 in work LpAZ | see instruction handbook dB(A) | ↗ |
| Lift height (see tables) | ‡ mm | ↗ |
| Lift motor output at 15% duty factor | 8.05) kW | ↗ |
| Lifting speed, with/without load | 0.15 / 0.264) m/s | ↗ |
| Load capacity | 2,646 lb (1,200 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 28.1 in (714 mm) | ↗ |
| Lowering speed, with/without load | 0.38 / 0.384) m/s | ↗ |
| Manufacturer's model designation | SBS12N2TF | ↗ |
| Mast reach | 8503) mm | ↗ |
| Maximum gradeability, with/without load | 7.2 / 7.2 s | ↗ |
| Number of wheels, front/rear (x=driven) | 150 x 55 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Sit-on | ↗ |
| Outside width over forks (minimum/maximum) | 578 / 842 mm | ↗ |
| Overall length | 23472) mm | ↗ |
| Overall width | 1010 / 1150 mm | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Battery | ↗ |
| Seat height | 38.0 in (966 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | ↗ |
| Sound pressure level at the driver's seat | <70 dB (A) | ↗ |
| Track width (center of tyres), drive side | 27.8 in (706 mm) | ↗ |
| Track width (center of tyres), load side | 850 / 1050 mm | ↗ |
| Travel speed, with/without load | 8.0 / 8.0 km/h | ↗ |
| Truck length over load legs | 19662) mm | ↗ |
| Truck weight without load, with maximum battery weight | 4,802 lb (2,178 kg) | ↗ |
| Turning circle radius | 73.3 in (1,861 mm) | ↗ |
| Type of drive control | AC | ↗ |
| Tyre dimensions, front | 250 x 105 | ↗ |
| Tyre dimensions, rear | 150 x 55 | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | Vul / Vul | ↗ |
| Wheelbase | 16602) mm | ↗ |
| Width over guide rollers (min). | 750 / 950 mm | ↗ |
| Working aisle width (Ast) with 1000 × 1200 mm pallets, load crosswise, platform up/down | 107 in (2,726 mm) | ↗ |
| Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 106 in (2,690 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
