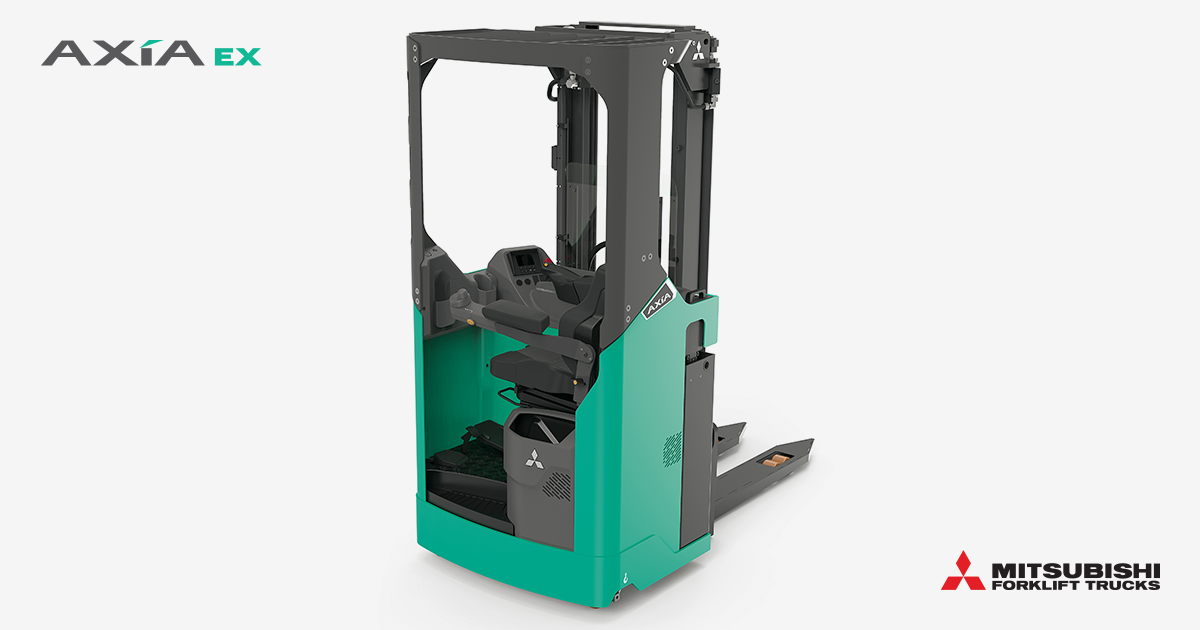

Mitsubishi
SBS16N2I
3,527 lb (1,600 kg)
Load capacity
Documents
Full specifications
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 1571 / 2045 kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 1411 / 605 kg | ↗ |
| Battery voltage/capacity at 5-hour discharge | 24 / 375 - 775 V/Ah | ↗ |
| Battery weight | 672–1,367 lb (305–620 kg) | ↗ |
| Drive motor capacity (60 min. short duty) | 2.7 kW | ↗ |
| Energy consumption according to DIN EN 16796 | 0.853) kWh/h | ↗ |
| Fork dimensions (thickness, width, length) | 70 / 180 / 1170 mm | ↗ |
| Fork height, fully lowered | 3.7 in (93 mm) | ↗ |
| Free lift (see tables) | ‡ mm | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 0.8 in (20 mm) | ↗ |
| Height | ‡ mm | ↗ |
| Height of support legs | 87 | ↗ |
| Height to top of overhead guard | 83.1 in (2,110 mm) | ↗ |
| Height with mast extended | ‡ mm | ↗ |
| Initial Lift | 4.3 in (110 mm) | ↗ |
| Length to fork face (includes fork thickness) | 10631) mm | ↗ |
| Lift height (see tables) | ‡ mm | ↗ |
| Lift motor output at 15% duty factor | 4.0 kW | ↗ |
| Lifting speed, with/without load | 0.16 / 0.32 m/s | ↗ |
| Load capacity | 3,527 lb (1,600 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 31.5 in (800 mm) | ↗ |
| Lowering speed, with/without load | 0.44 / 0.41 m/s | ↗ |
| Manufacturer's model designation | SBS16N2I | ↗ |
| Maximum gradeability, with/without load | 26.6 / 26.6 s | ↗ |
| Number of wheels, front/rear (x=driven) | 150 x 55 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Sit-on | ↗ |
| Outside width over forks (minimum/maximum) | 22.4 in (570 mm) | ↗ |
| Overall length | 2233 1) mm | ↗ |
| Overall width | 39.8 in (1,010 mm) | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Battery | ↗ |
| Seat height | 38.0 in (966 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | ↗ |
| Sound pressure level at the driver's seat | <70 dB (A) | ↗ |
| Track width (center of tyres), drive side | 27.8 in (706 mm) | ↗ |
| Track width (center of tyres), load side | 15.4 in (390 mm) | ↗ |
| Travel speed, with/without load | 9 / 9 km/h | ↗ |
| Truck weight without load, with maximum battery weight | 4,442 lb (2,015 kg) | ↗ |
| Turning circle radius | 18612) mm | ↗ |
| Type of drive control | AC | ↗ |
| Tyre dimensions, front | 250 x 105 | ↗ |
| Tyre dimensions, rear | 85 x 70 | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | Vul / Vul | ↗ |
| Wheelbase | 16611) mm | ↗ |
| Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 26272) mm | ↗ |
| Working aisle width (Ast3) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 96.9 in (2,461 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
