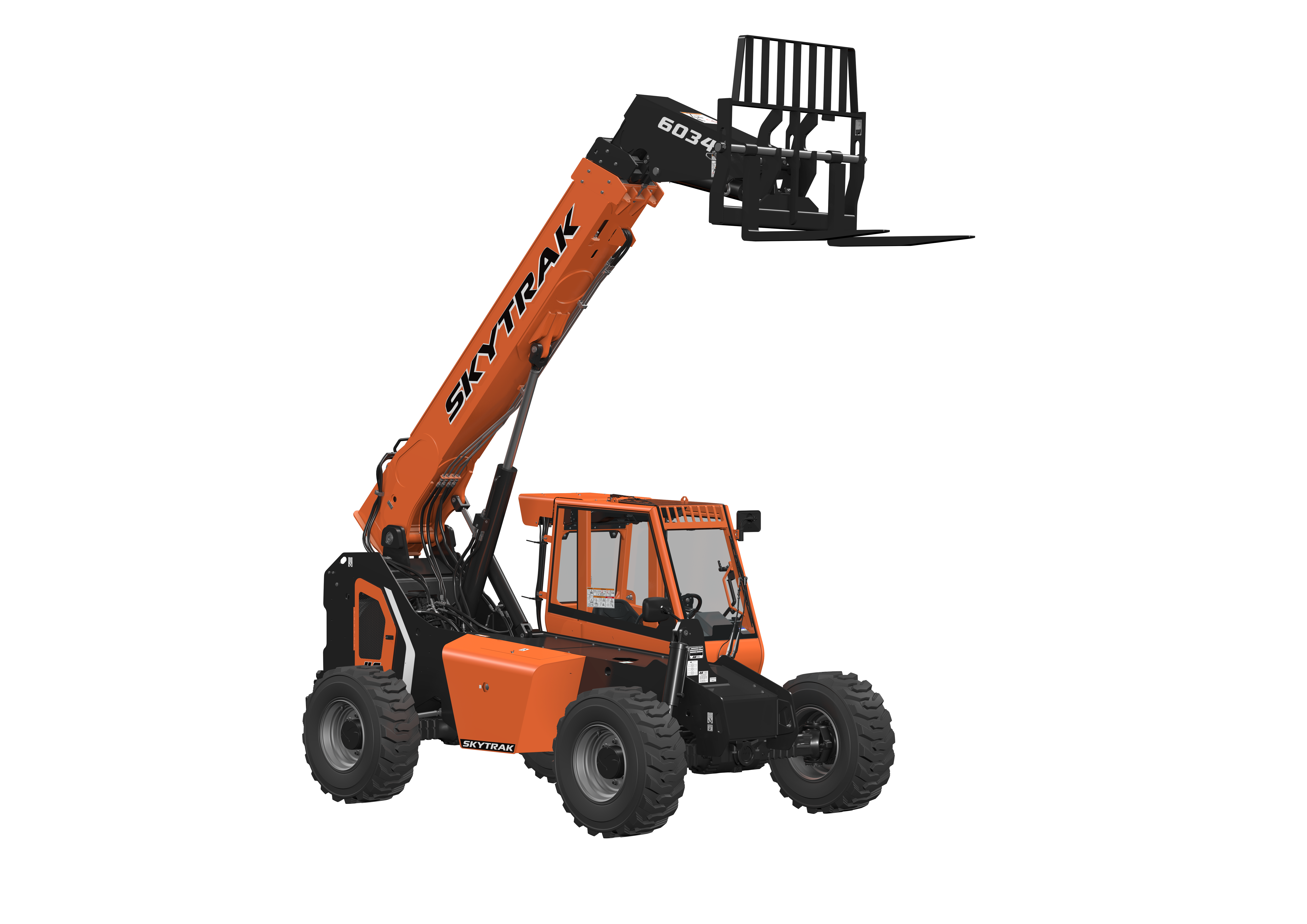

SkyTrak
6034
74 hp
Engine power
34.4 ft (10.5 m)
Lift height
6,001 lb (2,722 kg)
Load capacity
14,500 lb (6,577 kg)
Operating weight
106 L
fuel tank capacity
6,001 lb (2,722 kg)
lift capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Lift height | Load capacity |
|---|---|---|---|---|
| Gehl RS6-34 GEN:3 | 100% | 74 hp | 34.2 ft (10.4 m) | 6,001 lb (2,722 kg) |
| JLG SkyTrak 6034 | 100% | - | 34.4 ft (10.5 m) | 6,001 lb (2,722 kg) |
| Sany STH634A | 100% | 74 hp | - | 5,999 lb (2,721 kg) |
| Genie GTH-3007 | 95% | 74 hp | - | - |
| Manitou MTA 642 | 94% | 74 hp | 42.5 ft (13.0 m) | 6,001 lb (2,722 kg) |
| JCB 533-105 | 92% | 75 hp | 32.3 ft (9.8 m) | 7,275 lb (3,300 kg) |
Documents
Full specifications
| Axle Front | High Bias, Limited Slip | ↗ |
| Axle Rear | Oscillating | ↗ |
| Boom Speed Extending Out | 10 s | ↗ |
| Boom Speed Retracting In | 10 s | ↗ |
| Capacity Maximum Lift Height | 6,000 lb (2,722 kg) | ↗ |
| Capacity Maximum Reach | 1,000 lb (454 kg) | ↗ |
| Engine Horsepower | 74 hp | ↗ |
| Engine Manufacturer | Deutz | ↗ |
| Engine Type Diesel | TCD2.9 L4 | ↗ |
| Frame Leveling | 10 deg | ↗ |
| Fuel Tank Capacity Diesel | 28 gal (US) | ↗ |
| Ground Clearance | 15.4 in (39.1 cm) | ↗ |
| Hydraulic System Pump | Gear | ↗ |
| Is Current Model | true | ↗ |
| Lift Speed Down | 9 s | ↗ |
| Lift Speed Up | 11 s | ↗ |
| Machine Height | 97.8 in (248 cm) | ↗ |
| Machine Length | 210 in (532 cm) | ↗ |
| Machine Weight | 14,500 lb (6,577 kg) | ↗ |
| Machine Wheelbase | 110 in (279 cm) | ↗ |
| Machine Width | 95 in (241 cm) | ↗ |
| Max Travel Speed | 22 ft/s | ↗ |
| Maximum Lift Height | 413 in (1,049 cm) | ↗ |
| Maximum Reach | 278 in (706 cm) | ↗ |
| Outriggersor Stabilizers Info | false | ↗ |
| Rated Capacity | 6,000 lb (2,722 kg) | ↗ |
| Tire Size Type | 15-19.5 | ↗ |
| Transmission | Hydrostatic | ↗ |
| Turning Radius Outside | 143 in (363 cm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
