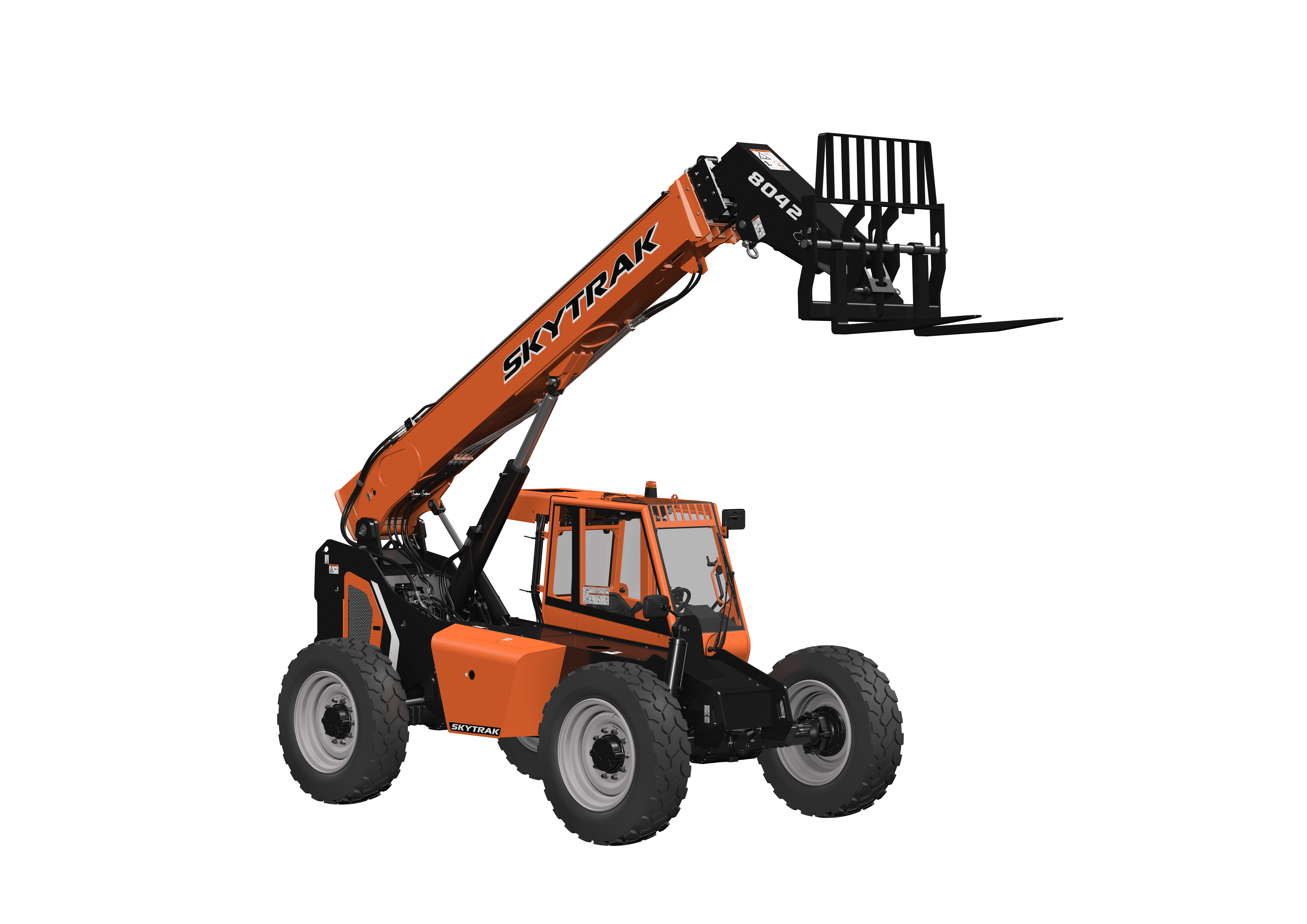

SkyTrak
8042
110 hp
Engine power
42.3 ft (12.9 m)
Lift height
8,001 lb (3,629 kg)
Load capacity
26,989 lb (12,242 kg)
Operating weight
132.5 L
fuel tank capacity
172.2 L
hydraulic system capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Lift height | Load capacity |
|---|---|---|---|---|
| JLG 8042 | 100% | 110 hp | 42 ft (12.8 m) | 8,001 lb (3,629 kg) |
| JLG 10042 | 95% | 110 hp | 42 ft (12.8 m) | 10,000 lb (4,536 kg) |
| Manitou MTA 842 | 95% | 127 hp | 42 ft (12.8 m) | 8,001 lb (3,629 kg) |
| JLG 943 | 94% | 111 hp | 43 ft (13.1 m) | 8,999 lb (4,082 kg) |
| Genie GTH-844 Telehandler | 94% | 99 hp | 43 ft (13.1 m) | 8,001 lb (3,629 kg) |
| JCB 509-42 | 94% | - | 42 ft (12.8 m) | 8,999 lb (4,082 kg) |
Documents
Full specifications
| Axle Front | High Bias, Limited Slip | ↗ |
| Axle Rear | Oscillating | ↗ |
| Boom Speed Extending Out | 14.6 s | ↗ |
| Boom Speed Retracting In | 12 s | ↗ |
| Capacity Maximum Lift Height | 6,000 lb (2,722 kg) | ↗ |
| Capacity Maximum Reach | 1,600 lb (726 kg) | ↗ |
| Engine Horsepower | 74 hp | ↗ |
| Engine Manufacturer | Deutz | ↗ |
| Engine Type Diesel | TCD2.9 L4 | ↗ |
| Frame Leveling | 10 deg | ↗ |
| Fuel Tank Capacity Diesel | 28 gal (US) | ↗ |
| Ground Clearance | 18.1 in (46.0 cm) | ↗ |
| HPRPM | 2400 rpm | ↗ |
| Hydraulic System Pump | Gear | ↗ |
| Is Current Model | false | ↗ |
| Lift Speed Down | 12.3 s | ↗ |
| Lift Speed Up | 15.5 s | ↗ |
| Machine Height | 102 in (259 cm) | ↗ |
| Machine Length | 239 in (607 cm) | ↗ |
| Machine Weight | 21,200 lb (9,616 kg) | ↗ |
| Machine Wheelbase | 122 in (310 cm) | ↗ |
| Machine Width | 99.6 in (253 cm) | ↗ |
| Max Travel Speed | 22 ft/s | ↗ |
| Maximum Lift Height | 508 in (1,290 cm) | ↗ |
| Maximum Reach | 354 in (899 cm) | ↗ |
| Outriggersor Stabilizers Info | false | ↗ |
| Rated Capacity | 8,000 lb (3,629 kg) | ↗ |
| Service Brake Type | Wet Multi-Disc | ↗ |
| Tire Size Type | 370/75-28 | ↗ |
| Transmission | Hydrostatic | ↗ |
| Turning Radius Outside | 154 in (391 cm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
