Sumner

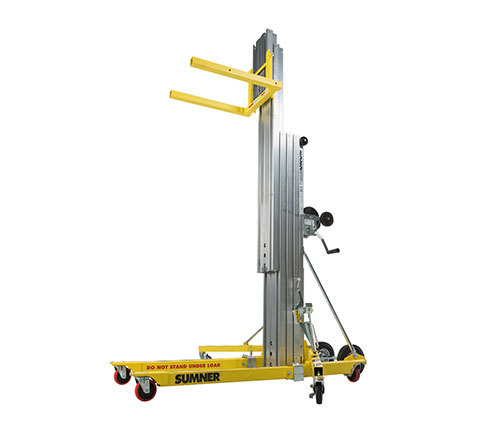

Series 2000 Material Lift
992 lb (450 kg)
Load capacity
Documents
Full specifications
| Capacity Range | 650 to 1000 lbs (294 to 450 kg) | ↗ |
| Footprint (2010/2015) | 5 ft 2 in x 31.25 in | ↗ |
| Ground Clearance | 2.5 in (63.5 mm) | ↗ |
| Height Stowed | 6 ft 4 in | ↗ |
| Lift Height Range | 10 to 25 ft | ↗ |
| Model 2010 Capacity | 1,000 lbs (454 kg) | ↗ |
| Model 2010 Lift Height | 10 ft (3.0 m) | ↗ |
| Model 2010 Part Number | 783700 | ↗ |
| Model 2010 Shipping Weight | 284 lbs (129 kg) | ↗ |
| Model 2015 Capacity | 800 lbs (363 kg) | ↗ |
| Model 2015 Lift Height | 15 ft (4.6 m) | ↗ |
| Model 2015 Part Number | 783701 | ↗ |
| Model 2015 Shipping Weight | 322 lbs (146 kg) | ↗ |
| Model 2020 Capacity | 800 lbs (363 kg) | ↗ |
| Model 2020 Lift Height | 20 ft (6.1 m) | ↗ |
| Model 2020 Part Number | 783702 | ↗ |
| Model 2020 Shipping Weight | 396 lbs (180 kg) | ↗ |
| Model 2025 Capacity | 650 lbs (295 kg) | ↗ |
| Model 2025 Lift Height | 25 ft (7.6 m) | ↗ |
| Model 2025 Part Number | 783703 | ↗ |
| Model 2025 Shipping Weight | 490 lbs (222 kg) | ↗ |
| Width with Stabilizer Legs | 6 ft 2 in | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
