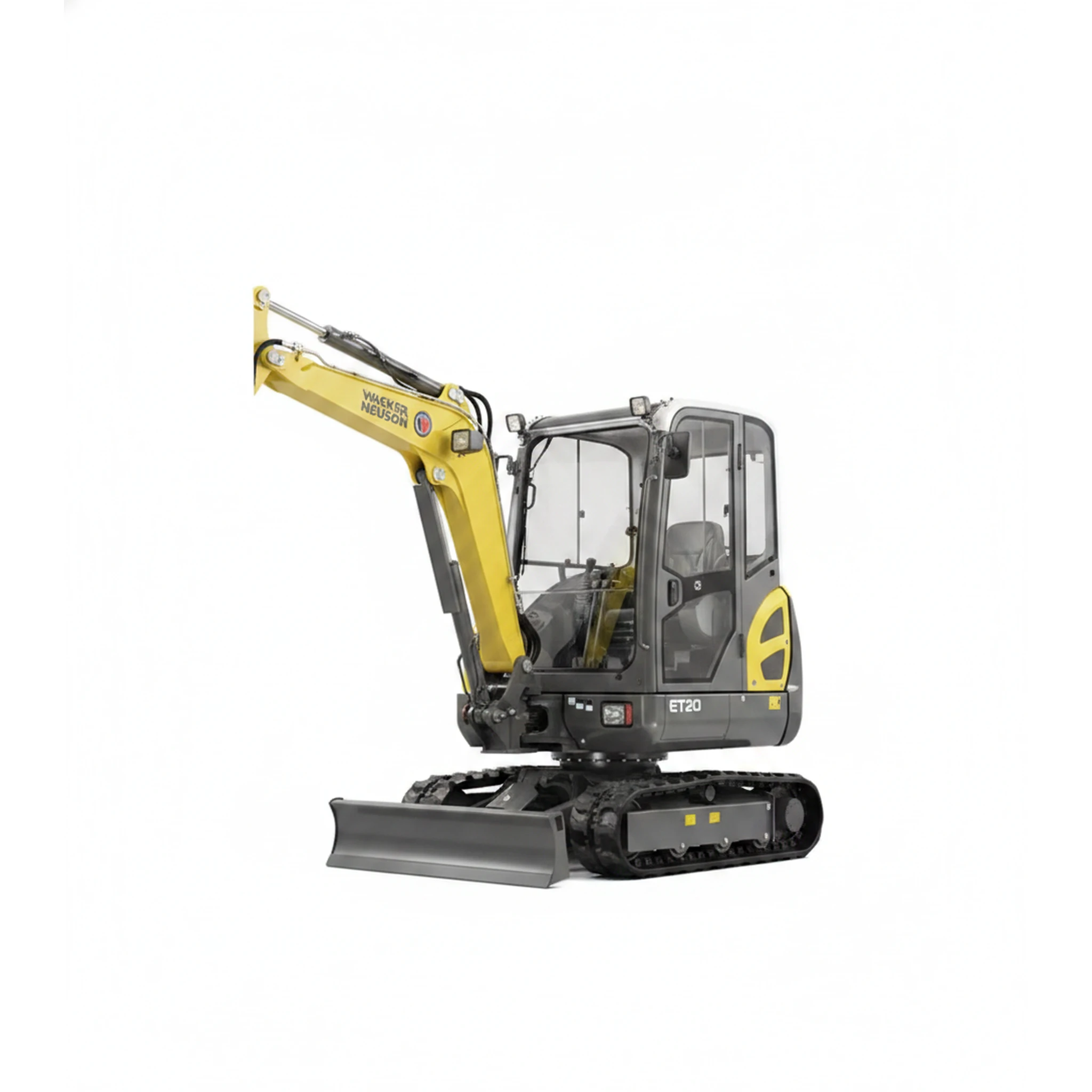

Wacker Neuson
ET20
8.8 ft (2.7 m)
Max dig depth
5,569 lb (2,526 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Max dig depth | Operating weight |
|---|---|---|---|
| Kubota U27-4 | 96% | 9.4 ft (2.9 m) | 5,688 lb (2,580 kg) |
| Hitachi ZX26U-6 | 95% | 9 ft (2.7 m) | 6,041 lb (2,740 kg) |
| Sany SY26U | 95% | 9 ft (2.7 m) | 6,085 lb (2,760 kg) |
| Case CX26C Mini Excavator | 95% | 8 ft (2.4 m) | 5,520 lb (2,504 kg) |
| Develon DX27Z-7 | 91% | 8 ft (2.4 m) | 6,173 lb (2,800 kg) |
| Volvo ECR25 Electric | 91% | 8 ft (2.4 m) | 6,129 lb (2,780 kg) |
Documents
Full specifications
| Battery capacity (nom. value) | 44 Ah | ↗ |
| Break Out Force Lift Arm | 2,810.1 lbf | ↗ |
| Breakout force | 4,226.4 lbf | ↗ |
| Cylinder | 3 | ↗ |
| Cylinder capacity | 68.1 in³ | ↗ |
| Digging depth (max.) | 105.6 " | ↗ |
| Effective power | 18.5 hp | ↗ |
| Flow rate | 19.3 gal/mi | ↗ |
| Height | 93.9 " | ↗ |
| Inclined position max. | 30 ° | ↗ |
| Length | 159.4 " | ↗ |
| Nominal Engine speed | 2,200 1/min | ↗ |
| Operating pressure hydraulics | 2,900 psi | ↗ |
| Operating pressure slewing gear | 150 bar | ↗ |
| Operating weight (min.-max.) | 4,420–5,569 lb (2,005–2,526 kg) | ↗ |
| Shipping weight | 4,105 lb (1,862 kg) | ↗ |
| Superstructure turning speed | 10 1/min | ↗ |
| Tank capacity | 5 gal US | ↗ |
| Travel speed | 4.1 km/h | ↗ |
| Width | 39 " | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
