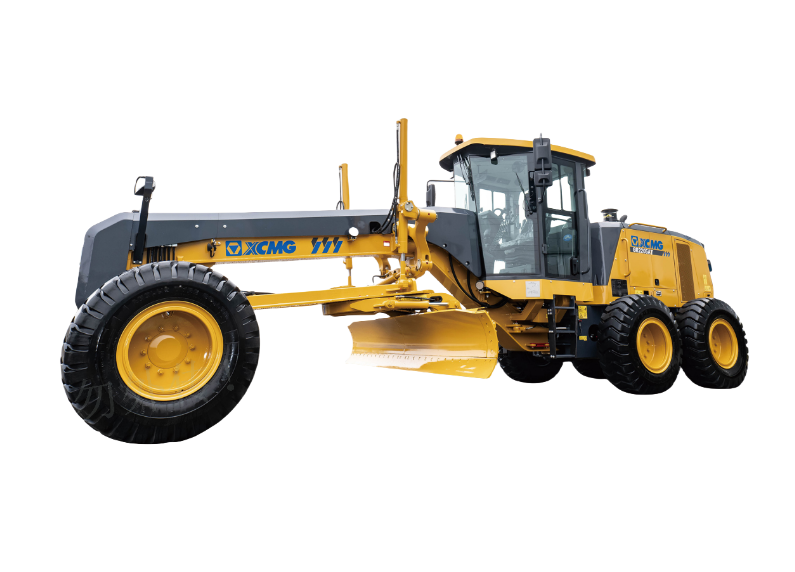

XCMG
GR2205AT
220 hp
Engine power
36,376 lb (16,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Case 885B-II | 96% | 212 hp | 38,030 lb (17,250 kg) |
| Dynapac F1000T | 96% | 230 hp | 37,997 lb (17,235 kg) |
| Case 865B 2 | 94% | 220 hp | 32,077 lb (14,550 kg) |
| Dynapac F1000W | 93% | 230 hp | 33,003 lb (14,970 kg) |
| Ammann ABG 7820 | 92% | 235 hp | 32,849 lb (14,900 kg) |
| Bell G140 Motor Grader | 91% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Blade Length x Height | 3965×610 mm | ↗ |
| Drive speed, forward | 5、9、12、20、25、45 km/h | ↗ |
| Drive speed, reverse | 5、12、25 km/h | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Engine model | SC9DK220G3 | ↗ |
| Machine dimension | 9343 x 2465 x 3432 mm | ↗ |
| Machine weight | 36,376 lb (16,500 kg) | ↗ |
| Maximum gradeability | ≥25 % | ↗ |
| Minimum turning radius | 24.9 ft (7.6 m) | ↗ |
| Rated power/speed | 164/2200 kW/rpm | ↗ |
| Traction force f=0.75 | ≥111 kN | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
