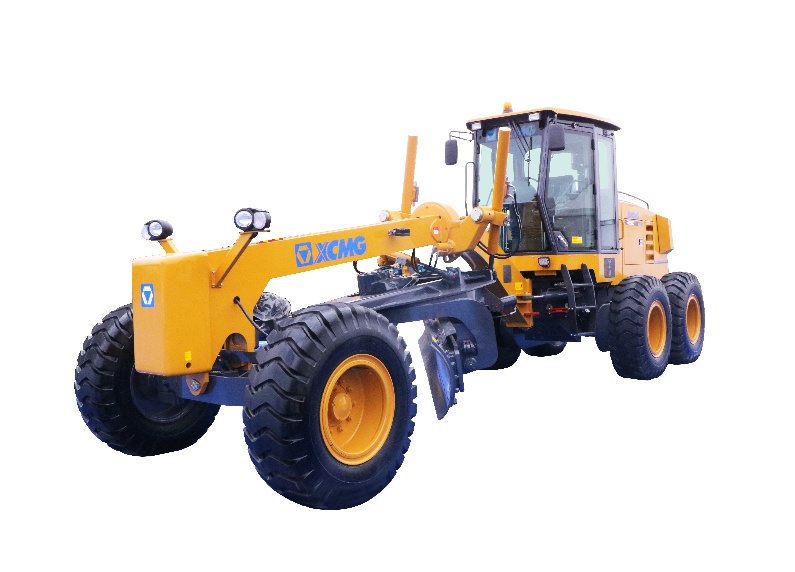

XCMG
GR2403
239 hp
Engine power
Full specifications
| Blade Length x Height | 3965 x 610 mm | ↗ |
| Drive speed, forward | 5、8、11、19、23、38 km/h | ↗ |
| Drive speed, reverse | 5、11、23 km/h | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Engine model | QSB6.7 | ↗ |
| Machine dimension | 8970 x 2625 x 3420(standard) mm | ↗ |
| Machine weight | 17000 (standard) kg | ↗ |
| Maximum gradeability | ≥25 % | ↗ |
| Minimum turning radius | 24.0 ft (7.3 m) | ↗ |
| Rated power/speed | 178/2000 kW/rpm | ↗ |
| Traction force f=0.75 | ≥87 kN | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
