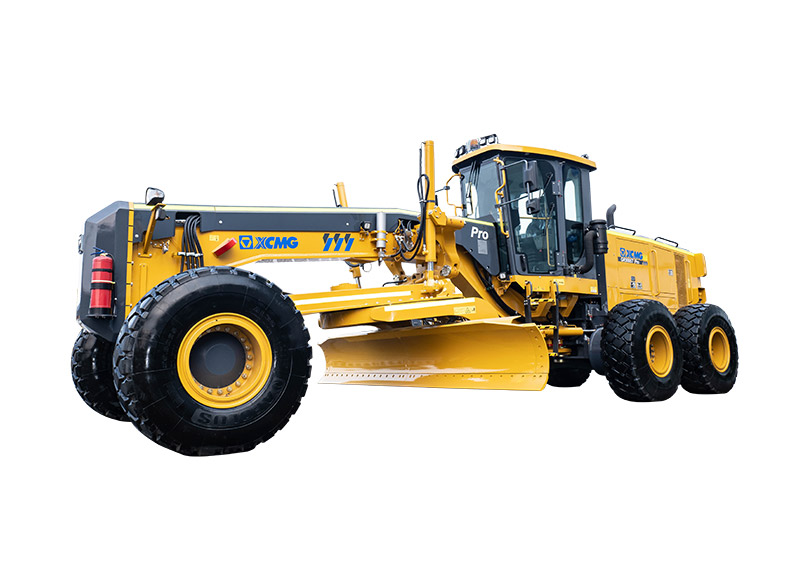

XCMG
GR3005T Pro(Weichai)
331 hp
Engine power
62,832 lb (28,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Bell G200 Motor Grader | 81% | 310 hp | 43,067 lb (19,535 kg) |
| Bell G160 Motor Grader | 75% | 280 hp | 41,359 lb (18,760 kg) |
| Ammann ABG 8820 | 71% | 268 hp | 38,250 lb (17,350 kg) |
| Dynapac SD2500C | 71% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac SD2500CS | 71% | 200 hp | 51,368 lb (23,300 kg) |
| Bell G140 Motor Grader | 69% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Blade Length x Height | 4572x686 mm | ↗ |
| Drive speed, forward | 5、8、11、19、23、40 km/h | ↗ |
| Drive speed, reverse | 5、11、23 km/h | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Engine model | Weichai | ↗ |
| Machine dimension | 11096 x 3270 x 3850 mm | ↗ |
| Machine weight | 62,832 lb (28,500 kg) | ↗ |
| Maximum gradeability | ≥30 % | ↗ |
| Minimum turning radius | 29.5 ft (9 m) | ↗ |
| Rated power/speed | 247/2200 kW/rpm | ↗ |
| Traction force f=0.75 | ≥140 kN | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
