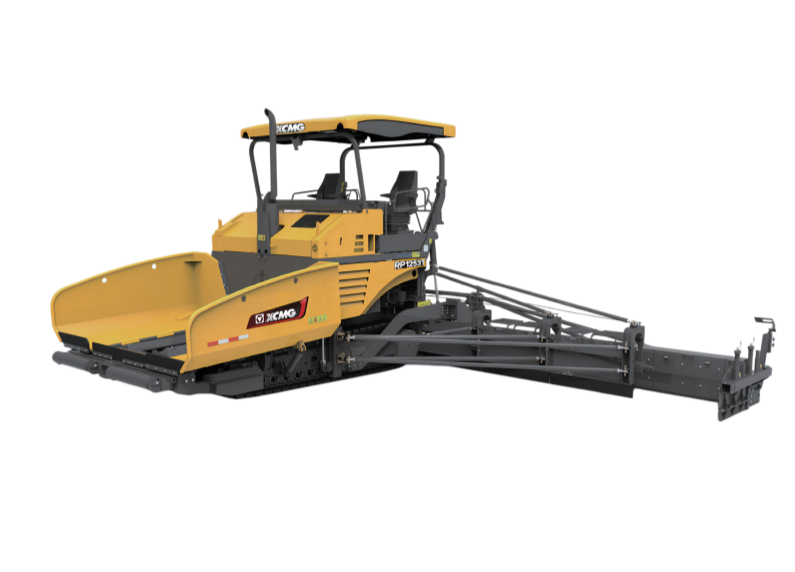

XCMG
RP1253T
326 hp
Engine power
52,911 lb (24,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Bell G200 Motor Grader | 88% | 310 hp | 43,067 lb (19,535 kg) |
| Bell G160 Motor Grader | 82% | 280 hp | 41,359 lb (18,760 kg) |
| Dynapac SD2500C | 79% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac SD2500CS | 79% | 200 hp | 51,368 lb (23,300 kg) |
| Ammann ABG 8820 | 77% | 268 hp | 38,250 lb (17,350 kg) |
| Bell G140 Motor Grader | 75% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Basic paving width | 9.8 ft (3 m) | ↗ |
| Diesel engine power | 243 kW | ↗ |
| Emission | Stage Ⅲ | ↗ |
| Engine Manufacturer | Shangchai | ↗ |
| Engine Model | SC9DF330 | ↗ |
| Hopper capacity | 33,069 lb (15 t) | ↗ |
| Max. paving thickness | 19.7 in (500 mm) | ↗ |
| Max. paving width | 41.0 ft (12.5 m) | ↗ |
| Overall dimensions | 6980×3544×4065 mm | ↗ |
| Theoretical productivity | 1200 t/h | ↗ |
| Total weight | 24～36 t | ↗ |
| Travel speed | 3 km/h | ↗ |
| Working speed | 20 m/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
