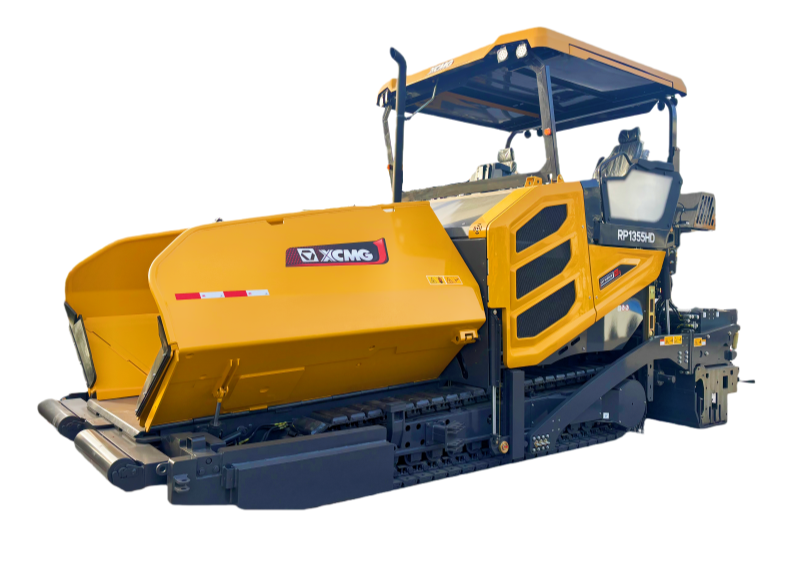

XCMG
RP1355HD
324 hp
Engine power
67,241 lb (30,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Bell G200 Motor Grader | 80% | 310 hp | 43,067 lb (19,535 kg) |
| Bell G160 Motor Grader | 74% | 280 hp | 41,359 lb (18,760 kg) |
| Ammann ABG 8820 | 70% | 268 hp | 38,250 lb (17,350 kg) |
| Dynapac SD2500C | 69% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac SD2500CS | 69% | 200 hp | 51,368 lb (23,300 kg) |
| Bell G140 Motor Grader | 67% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Basic paving width | 9.8 ft (3 m) | ↗ |
| Diesel engine power | 242 kW | ↗ |
| Emission | Stage Ⅲ | ↗ |
| Engine Manufacturer | Cummins | ↗ |
| Engine Model | QSL8.9C325 | ↗ |
| Hopper capacity | 35,274 lb (16 t) | ↗ |
| Max. paving thickness | 21.7 in (550 mm) | ↗ |
| Max. paving width | 44.3 ft (13.5 m) | ↗ |
| Overall dimensions | 7680×3210×4110 mm | ↗ |
| Theoretical productivity | 1300 t/h | ↗ |
| Total weight | 30.5～40.5 t | ↗ |
| Travel speed | 3.3 km/h | ↗ |
| Working speed | 25 m/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
