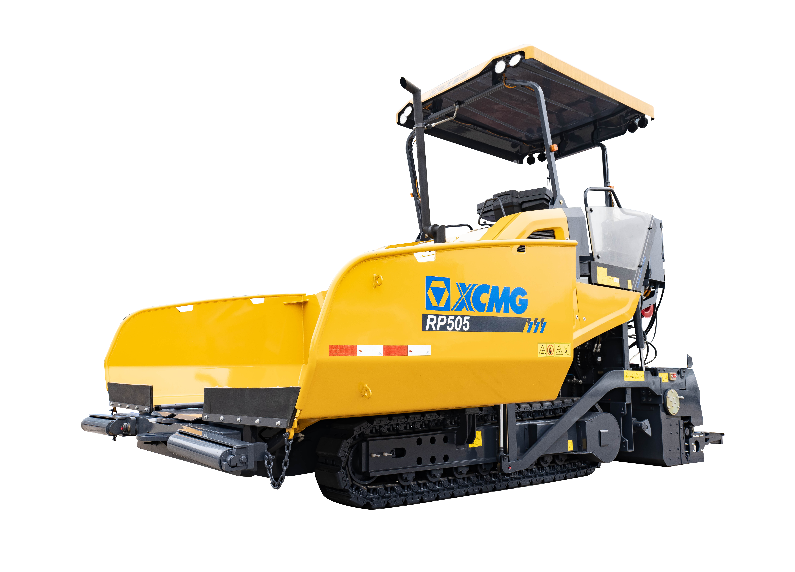

XCMG
RP505
140 hp
Engine power
27,558 lb (12,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Case 836D | 97% | 137 hp | 26,495 lb (12,018 kg) |
| Caterpillar 120 | 92% | 130 hp | 30,642 lb (13,899 kg) |
| Dynapac F2500W | 85% | 148 hp | 36,376 lb (16,500 kg) |
| Dynapac F2500C | 82% | 148 hp | 39,683 lb (18,000 kg) |
| Ammann ABG 6820 | 81% | 188 hp | 31,636 lb (14,350 kg) |
| Case 856D | 81% | 173 hp | 33,995 lb (15,420 kg) |
Full specifications
| Basic paving width | 1.8～3.4 m | ↗ |
| Diesel engine power | 104 kW | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Engine Manufacturer | Cummins | ↗ |
| Engine Model | QSF3.8 | ↗ |
| Hopper capacity | 26,455 lb (12 t) | ↗ |
| Max. paving thickness | 11.0 in (280 mm) | ↗ |
| Max. paving width | 16.4 ft (5 m) | ↗ |
| Theoretical productivity | 400 t/h | ↗ |
| Total weight | 27,558 lb (12.5 t) | ↗ |
| Transportation dimensions | 5864×1925×3106 mm | ↗ |
| Travel speed | 4 km/h | ↗ |
| Working speed | 28 m/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
