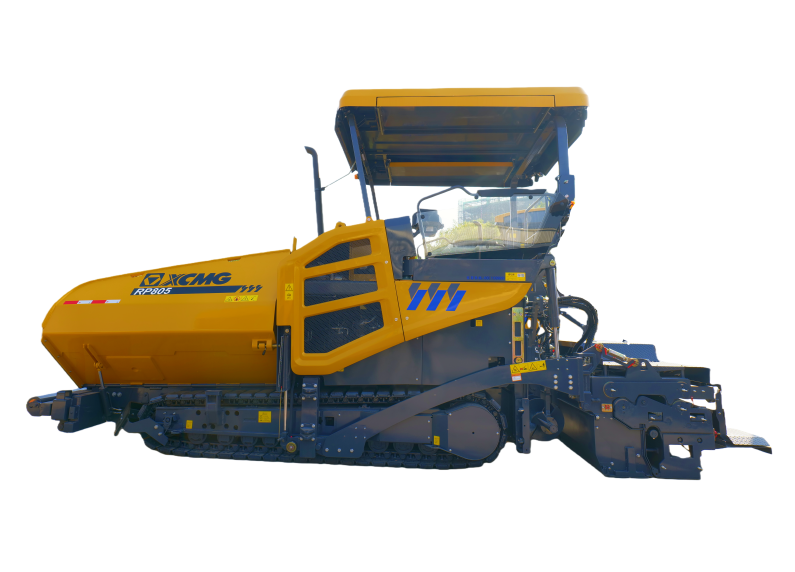

XCMG
RP805S
190 hp
Engine power
45,195 lb (20,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Dynapac SD2500C | 92% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac SD2500CS | 92% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac CM2500 | 88% | 231 hp | 41,888 lb (19,000 kg) |
| Case 885B-II | 87% | 212 hp | 38,030 lb (17,250 kg) |
| Bell G140 Motor Grader | 85% | 240 hp | 40,589 lb (18,411 kg) |
| Ammann ABG 6820 | 84% | 188 hp | 31,636 lb (14,350 kg) |
Full specifications
| Basic paving width | 2.5~5.0 m | ↗ |
| Diesel engine power | 142 kW | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Engine Manufacturer | Cummins | ↗ |
| Engine Model | QSB6.7 | ↗ |
| Hopper capacity | 30,865 lb (14 t) | ↗ |
| Max. paving thickness | 11.8 in (300 mm) | ↗ |
| Max. paving width | 26.2 ft (8 m) | ↗ |
| Theoretical productivity | 800 t/h | ↗ |
| Total weight | 20.5～21.8 t | ↗ |
| Transportation dimensions | 6900x2550x3080 mm | ↗ |
| Travel speed | 0～4.0 km/h | ↗ |
| Working speed | 0～25 m/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
