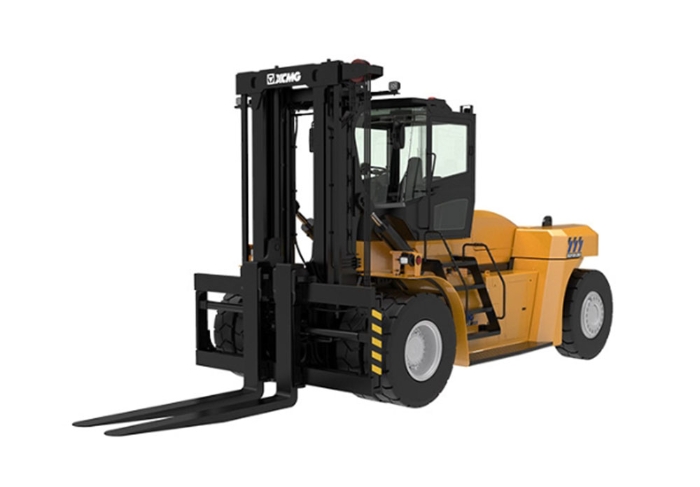

XCMG
XCF3512K
13.1 ft (4.0 m)
Lift height
77,162 lb (35,000 kg)
Load capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Lift height | Load capacity |
|---|---|---|---|
| Komatsu FH135-1 | 69% | 13.1 ft (4.0 m) | 29,762 lb (13,500 kg) |
| Mitsubishi FB120NH | 60% | 11.2 ft (3.4 m) | 26,455 lb (12,000 kg) |
| Mitsubishi FB100N | 57% | 11.2 ft (3.4 m) | 22,046 lb (10,000 kg) |
| Mitsubishi FB100NH | 57% | 11.2 ft (3.4 m) | 22,046 lb (10,000 kg) |
| Mitsubishi FB90N | 56% | 11.2 ft (3.4 m) | 19,842 lb (9,000 kg) |
| Mitsubishi FB90NH | 56% | 11.2 ft (3.4 m) | 19,842 lb (9,000 kg) |
Full specifications
| Dimensions without fork | 6760×3460×4120 | ↗ |
| Fork adjustment range | 36.2–112 in (920–2,850 mm) | ↗ |
| Fork dimensions | 2440×300×115 mm | ↗ |
| Load center | 47.2 in (1,200 mm) | ↗ |
| Maximum gradeability（loaded） | 0.23 | ↗ |
| Maximum lifting height | 157 in (4,000 mm) | ↗ |
| Maximum lifting speed （unloaded\loaded） | 245/230 km/h | ↗ |
| Maximum travelling speed （unloaded\loaded） | 22/24 km/h | ↗ |
| Minimum turning radius | 6360 | ↗ |
| Optional | / | ↗ |
| Overall weight | 99,208 lb (45,000 kg) | ↗ |
| Rated capacity | 77,162 lb (35,000 kg) | ↗ |
| Type of mast Secondary standard type | / | ↗ |
| Wheel base | 183 in (4,650 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
