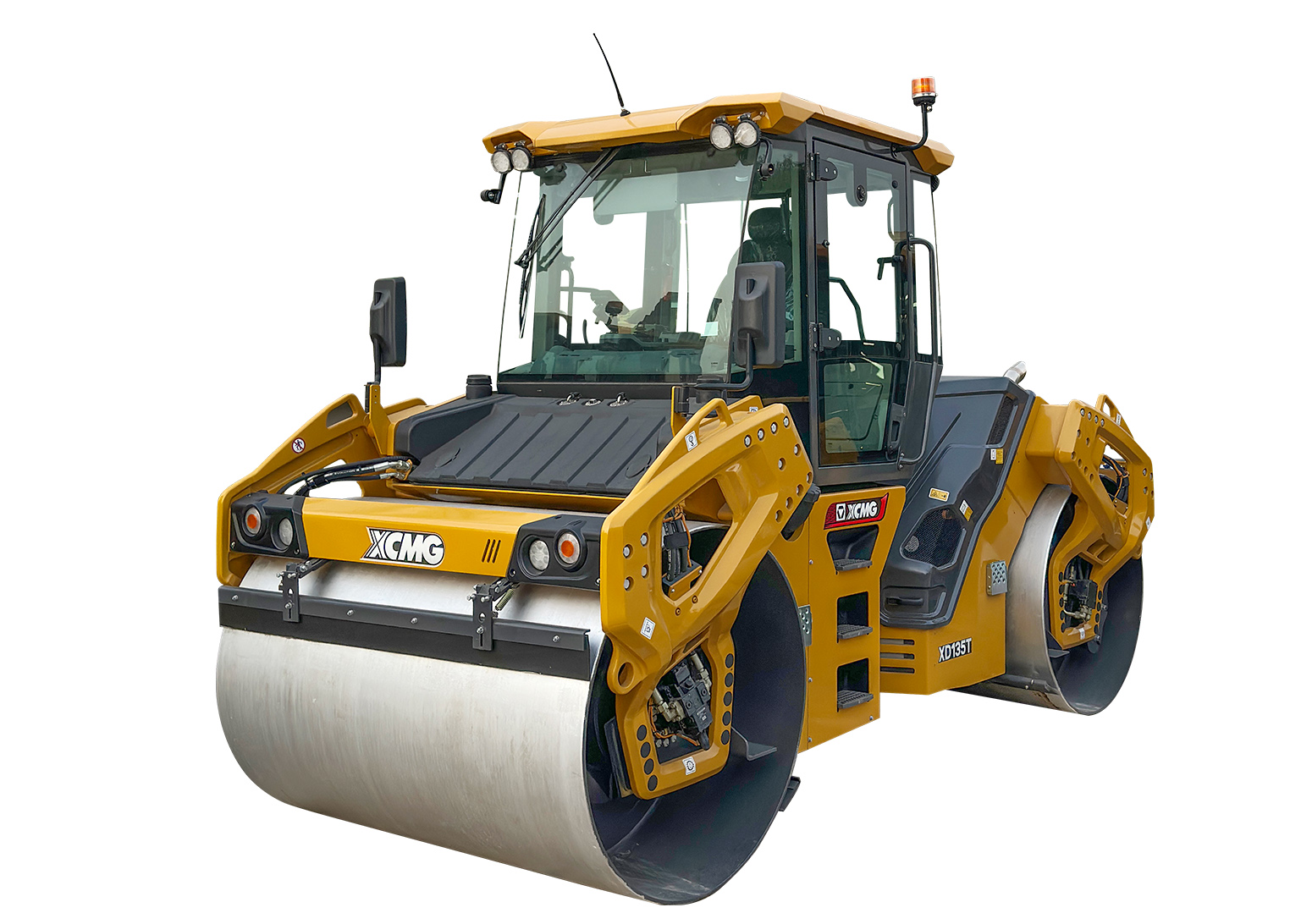

XCMG
XD135T(Stage Ⅲ)
140 hp
Engine power
28,660 lb (13,000 kg)
Operating weight
83.9 in (2,130 mm)
drum width
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | drum width |
|---|---|---|---|---|
| Bomag BW211 | 99% | 138 hp | 28,418 lb (12,890 kg) | 83.9 in (2,130 mm) |
| Bomag BW211D-5 | 99% | 138 hp | 28,418 lb (12,890 kg) | 83.9 in (2,130 mm) |
| Bomag BW211PD-5 | 99% | 138 hp | 28,109 lb (12,750 kg) | 83.9 in (2,130 mm) |
| Bomag BW 202 AD-50 | 98% | 138 hp | 27,117 lb (12,300 kg) | 84.1 in (2,135 mm) |
| Bomag BW 206 ADO-5 | 98% | 141 hp | 30,203 lb (13,700 kg) | 84.1 in (2,135 mm) |
| Ammann ARX 140 | 97% | 134 hp | 29,454 lb (13,360 kg) | - |
Full specifications
| Drum width | 83.9 in (2,130 mm) | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Excitation force | 178/96 kN | ↗ |
| Model | Cummins QSF3.8 | ↗ |
| Operating weight | 28,660 lb (13,000 kg) | ↗ |
| Rated power | 104 kW | ↗ |
| Rated speed | 2200 r/min | ↗ |
| Static linear load | 299/299 N/cm | ↗ |
| Theoretical gradeability | 35 % | ↗ |
| Vibration frequency | 50/60 Hz | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
