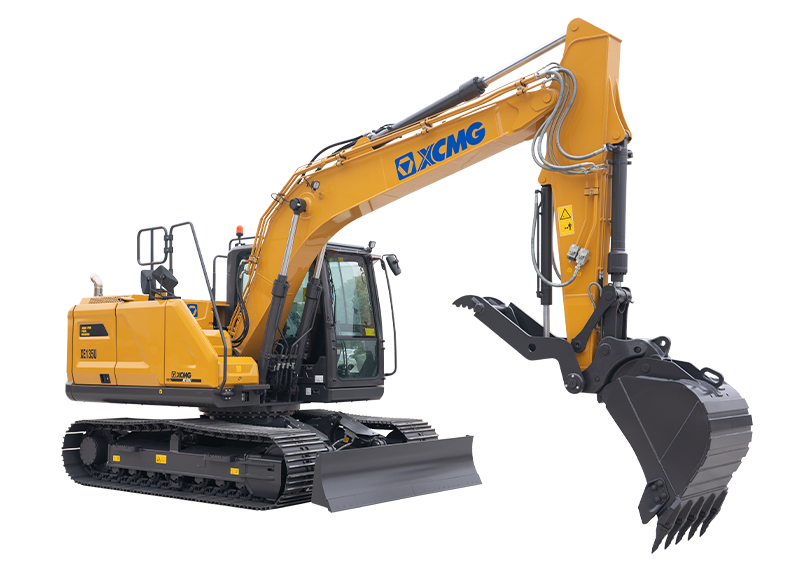

XCMG
XE135U
121 hp
Engine power
33,069 lb (15,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Volvo EC140E | 99% | 121 hp | 32,249 lb (14,628 kg) |
| Volvo ECR145 | 98% | 121 hp | 34,654 lb (15,719 kg) |
| Volvo ECR145E | 98% | 121 hp | 34,280 lb (15,549 kg) |
| Kobelco SK140SRLC-7 | 97% | 115 hp | 32,800 lb (14,878 kg) |
| Kobelco SK140SRLC-7 Offset Boom | 97% | 115 hp | 33,700 lb (15,286 kg) |
| Hyundai Construction Equipment R140LC-9 | 96% | 114 hp | 32,187 lb (14,600 kg) |
Documents
Full specifications
| Arm digging force | 80 kN | ↗ |
| Bucket capacity | 0.55 m³ | ↗ |
| Bucket digging force | 107 kN | ↗ |
| Displacement | 3.8 L | ↗ |
| Emission standard | Tier 4 Final | ↗ |
| Engine model | Cummins F3.8 | ↗ |
| Maximum torque/speed | 500/1500 N.m | ↗ |
| Operating weight | 33,069 lb (15,000 Kg) | ↗ |
| Rated power | 90 kW/rpm | ↗ |
| Swing speed | 11.3 r/min | ↗ |
| Travel speed | 4.7/2.9 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
