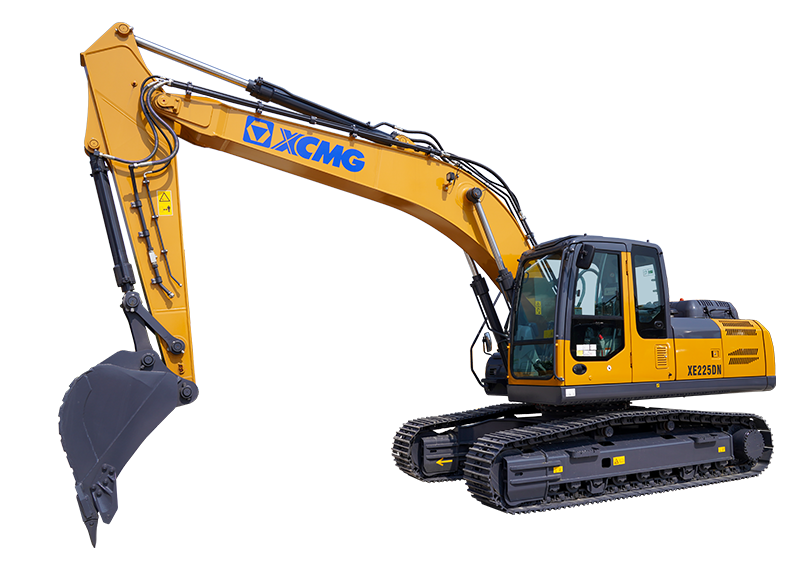

XCMG
XE225DN
142 hp
Engine power
49,604 lb (22,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Hitachi MA200-G Special Applications | 97% | 145 hp | 47,179 lb (21,400 kg) |
| Komatsu PC200LC-8 | 95% | 148 hp | 53,116 lb (24,093 kg) |
| Caterpillar 323 | 94% | 157 hp | 50,486 lb (22,900 kg) |
| Hyundai Construction Equipment R220LC-9S | 94% | 158 hp | 50,045 lb (22,700 kg) |
| Hyundai Construction Equipment R220LC-9 | 94% | 162 hp | 49,604 lb (22,500 kg) |
| Volvo EC160E | 94% | 148 hp | 45,592 lb (20,680 kg) |
Documents
Full specifications
| Arm digging force | 111 kN | ↗ |
| Bucket capacity | 1 m³ | ↗ |
| Bucket digging force | 149 kN | ↗ |
| Displacement | 4.4 L | ↗ |
| Emission standard | National Stage Ⅲ | ↗ |
| Engine model | Perkins 1104D-E44TA | ↗ |
| Maximum torque/speed | 516/1400 N.m | ↗ |
| Operating weight | 49,604 lb (22,500 Kg) | ↗ |
| Rated power | 106 kW/rpm | ↗ |
| Swing speed | 11.8 r/min | ↗ |
| Travel speed | 5.3/3.1 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
