XCMG

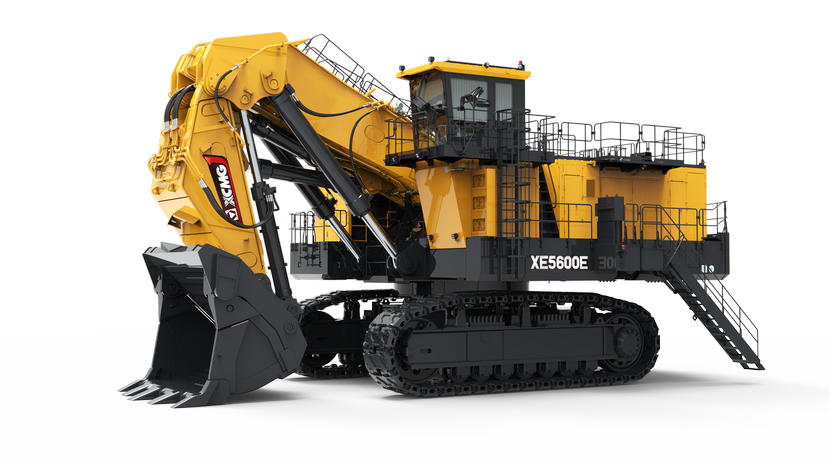

XE5600 (Loading-shovel)
14.1 ft (4.3 m)
Max dig depth
1,255,974 lb (569,700 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Max dig depth | Operating weight |
|---|---|---|---|
| Hitachi EX8000-7 | 82% | 14.5 ft (4.4 m) | 1,869,520 lb (848,000 kg) |
| Sany SY80U | 50% | 14 ft (4.3 m) | 19,401 lb (8,800 kg) |
| Kobelco SK85CS-7 | 49% | 14.6 ft (4.5 m) | 20,100 lb (9,117 kg) |
| Kobelco SK75SR-7 | 48% | 15 ft (4.6 m) | 18,700 lb (8,482 kg) |
| Bobcat E88 | 47% | 15.2 ft (4.6 m) | 19,601 lb (8,891 kg) |
| Develon DX100W-7 | 47% | 13 ft (4.0 m) | 25,221 lb (11,440 kg) |
Full specifications
| Bucket Capacity | 27-35 m³ | ↗ |
| Bucket Digging Force | 1550 kN | ↗ |
| Maximum Digging Depth | 169 in (4,300 mm) | ↗ |
| Operational Weight | 1,255,974 lb (569,700 kg) | ↗ |
| Overall Dimensions | 22110x10300x9155 mm | ↗ |
| Rated Power | 2×1119/1800 kW/rpm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
