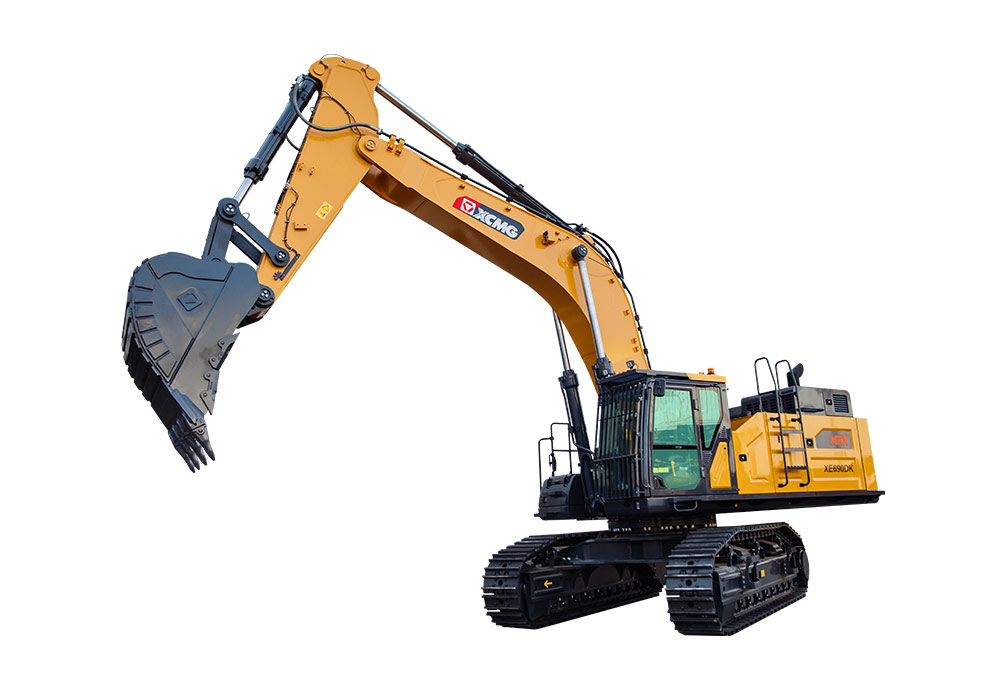

XCMG
XE690DK
759 hp
Engine power
145,064 lb (65,800 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Hitachi EX1200-7 | 79% | 760 hp | 253,532 lb (115,000 kg) |
| Hitachi ZX690-7G Large | 78% | 463 hp | 151,788 lb (68,850 kg) |
| Volvo EC750E | 78% | 516 hp | 164,024 lb (74,400 kg) |
| Hitachi ZX690LCH-7 / ZX690LCR-7 | 77% | 467 hp | 155,205 lb (70,400 kg) |
| Komatsu PC1250-8 | 75% | 673 hp | 234,792 lb (106,500 kg) |
| Hitachi ZX890-7G Large | 73% | 506 hp | 184,086 lb (83,500 kg) |
Full specifications
| Arm digging force | 318 kN | ↗ |
| Bucket capacity | 4/5 m³ | ↗ |
| Bucket digging force | 382 kN | ↗ |
| Displacement | 16.72 L | ↗ |
| Emission standard | National Stage Ⅲ | ↗ |
| Engine model | Weichai WP17 | ↗ |
| Maximum torque/speed | 3000/(1200-1500) N.m | ↗ |
| Operating weight | 65800/69800 Kg | ↗ |
| Rated power | 566 kW/rpm | ↗ |
| Swing speed | 7.1 r/min | ↗ |
| Travel speed | 4.7/2.8 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
