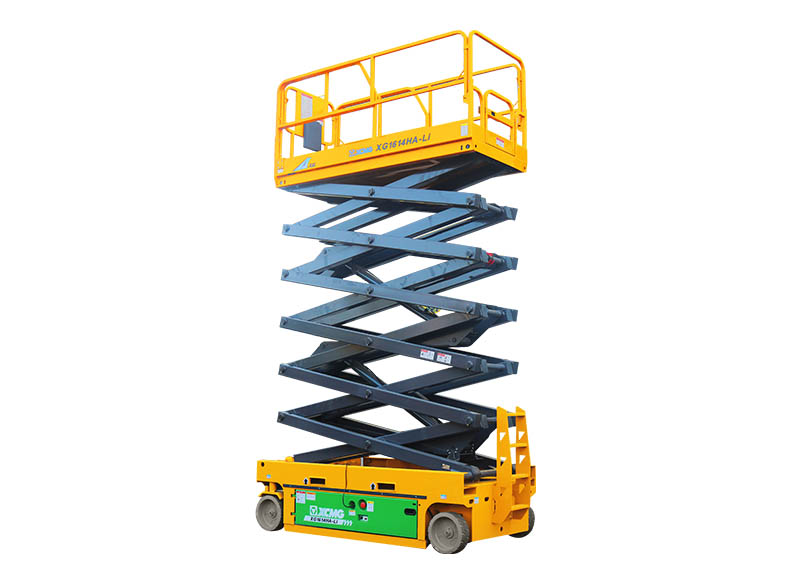

XCMG
XG1614HA
772 lb (350 kg)
Platform capacity
51.8 ft (15.8 m)
Working height
52.5 ft (working_height)
platform height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height | platform height |
|---|---|---|---|---|
| MEC 4555SEAC Compact | 92% | 750 lb (340 kg) | 45 ft (13.7 m) | - |
| Haulotte C14 | 90% | 705 lb (320 kg) | 45.4 ft (13.8 m) | - |
| Haulotte Compact 14 DUAL | 89% | 705 lb (320 kg) | 45.1 ft (13.7 m) | 45.9 ft (working_height) |
| JLG ES4046 | 88% | 769 lb (349 kg) | 39 ft (11.9 m) | - |
| Noblelift SC3945E | 88% | 701 lb (318 kg) | 44 ft (13.4 m) | - |
| Snorkel S4732E | 87% | 769 lb (349 kg) | 38 ft (11.6 m) | - |
Full specifications
| Max. Grade Ability | 25 % | ↗ |
| Max. Platform Height | 45.3 ft (13.8 m) | ↗ |
| Max. Working Height | 51.8 ft (15.8 m) | ↗ |
| Max.Lift capacity | 772 lb (350 kg) | ↗ |
| Max.driving speed | 3（stowed) 0.8（raised） km/h | ↗ |
| Min. ground clearance | 20（pothole protection support） 77.5（retraction） mm | ↗ |
| Min. turning radius | 2.65（outside） m | ↗ |
| Total Weight | 7,826 lb (3,550 kg) | ↗ |
| Wheel Base | 88.2 in (2,240 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
