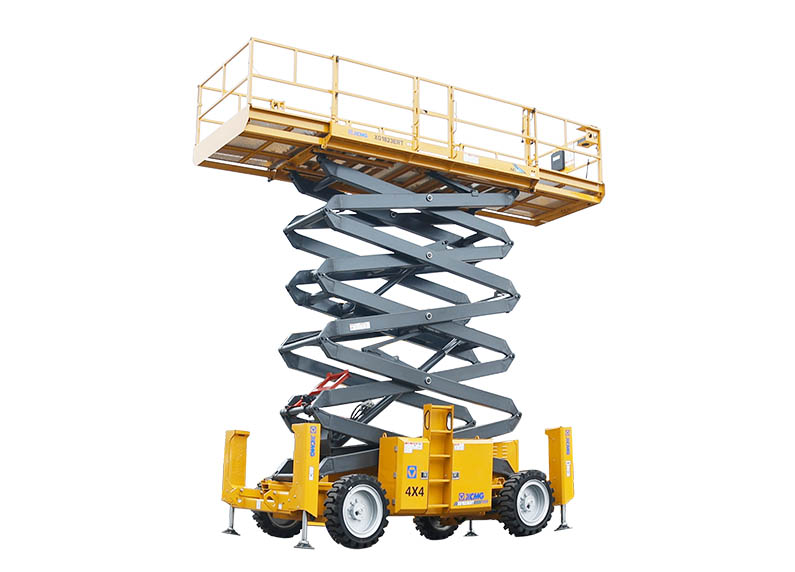

XCMG
XG1823ERT
59.1 ft (working_height)
platform height
Full specifications
| Battery capacity | 480 Ah | ↗ |
| Battery voltage | 48 V | ↗ |
| Max.Grade Ability | 40% | ↗ |
| Max.Platform Height | 52.8 ft (16.1 m) | ↗ |
| Max.Working Height | 59.4 ft (18.1 m) | ↗ |
| Min.ground clearance | 10.0 in (253 mm) | ↗ |
| Min.turning radius | 2.5(inside) 5.6(outside) m | ↗ |
| Rated load | 1,543 lb (700 kg) | ↗ |
| Total Weight | 18,475 lb (8,380 kg) | ↗ |
| Wheel Base | 112 in (2,850 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
