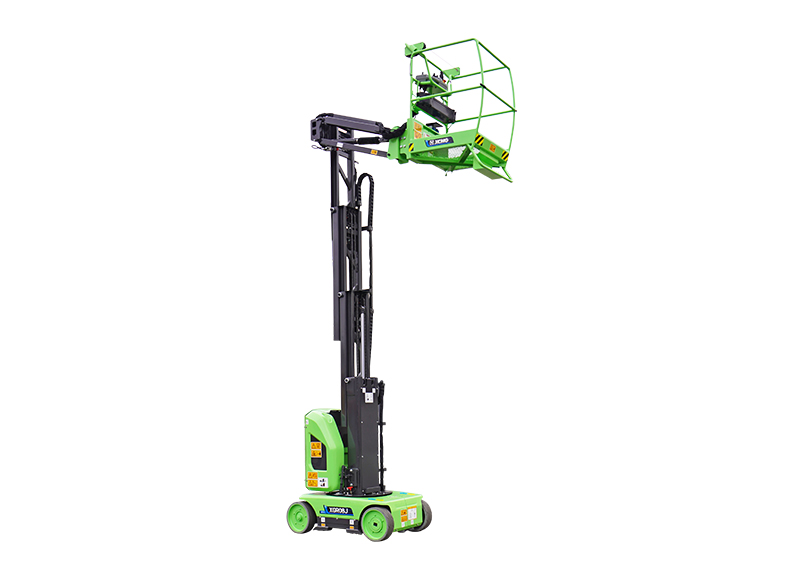

XCMG
XGR08J
441 lb (200 kg)
Platform capacity
26.9 ft (8.2 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| JLG TOUCAN-8EL | 100% | 441 lb (200 kg) | 26.9 ft (8.2 m) |
| Haulotte Star 8 S | 99% | 441 lb (200 kg) | 26.1 ft (8.0 m) |
| Haulotte Star 10 | 91% | 441 lb (200 kg) | 32.8 ft (10.0 m) |
| JLG E18MCL | 90% | 399 lb (181 kg) | 24 ft (7.3 m) |
| JLG E18MML | 90% | 399 lb (181 kg) | 24 ft (7.3 m) |
| Dingli AMWP8-1200 | 89% | 351 lb (159 kg) | 26.2 ft (8.0 m) |
Full specifications
| Battery | 24/265 V/Ah | ↗ |
| Gradeability | 25% (14°) | ↗ |
| Height stowed | 6.6 ft (2 m) | ↗ |
| Length stowed | 7.3 ft (2.2 m) | ↗ |
| Lift capacity | 200 (unlimited) kg | ↗ |
| Max platform height | 20.3 ft (6.2 m) | ↗ |
| Max working height | 26.9 ft (8.2 m) | ↗ |
| Turning radius | 1.3/2.1 (front) 0.7/1.7 (back) m | ↗ |
| Weight | 4,960 lb (2,250 kg) | ↗ |
| Width stowed | 3.2 ft (1.0 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
