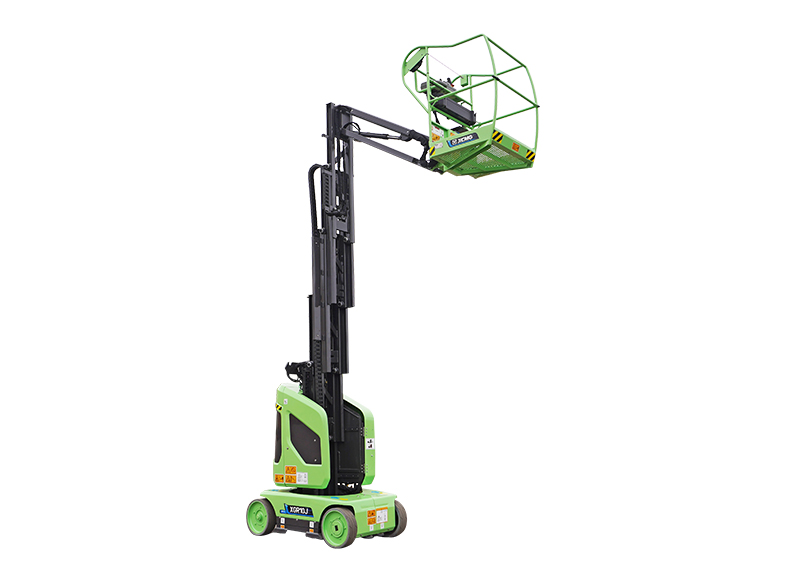

XCMG
XGR10J
441 lb (200 kg)
Platform capacity
33.1 ft (10.1 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Haulotte Star 10 | 100% | 441 lb (200 kg) | 32.8 ft (10.0 m) |
| Dingli AMWP11.5-8200AC | 95% | 441 lb (200 kg) | 36.7 ft (11.2 m) |
| JLG 32E Toucan Mast Boom Lift | 92% | 500 lb (227 kg) | 32 ft (9.8 m) |
| JLG TOUCAN-8EL | 91% | 441 lb (200 kg) | 26.9 ft (8.2 m) |
| MEC MME30-RJ | 90% | 500 lb (227 kg) | 36.1 ft (11.0 m) |
| Haulotte Star 8 S | 89% | 441 lb (200 kg) | 26.1 ft (8.0 m) |
Full specifications
| Battery | 24/265 V/Ah | ↗ |
| Gradeability | 25% (14°) | ↗ |
| Height stowed | 6.6 ft (2 m) | ↗ |
| Length stowed | 9.9 ft (3.0 m) | ↗ |
| Lift capacity | 200(unlimited) kg | ↗ |
| Max platform height | 26.6 ft (8.1 m) | ↗ |
| Max working height | 33.1 ft (10.1 m) | ↗ |
| Turning radius | 1.3/2.1 (front) 0.7/1.7 (back) m | ↗ |
| Weight | 6,724 lb (3,050 kg) | ↗ |
| Width stowed | 3.2 ft (1.0 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
