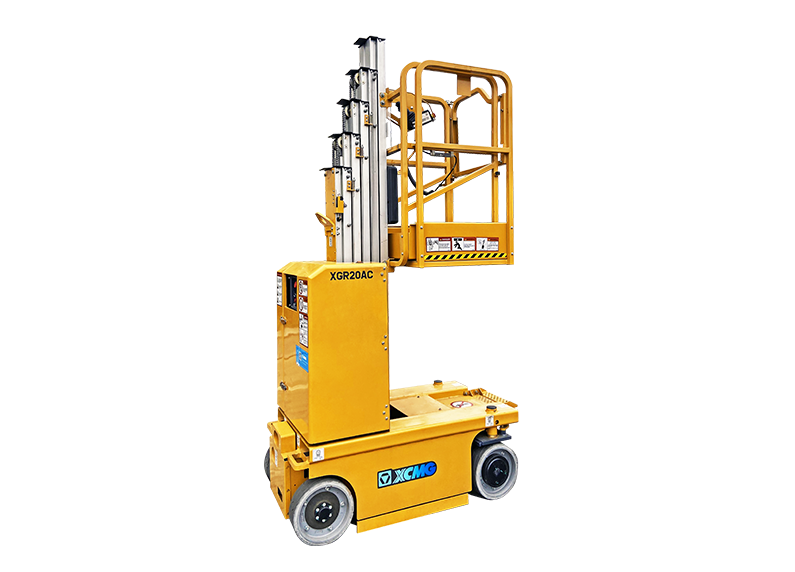

XCMG
XGR20AC-ANSI
351 lb (159 kg)
Platform capacity
26 ft (7.9 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Dingli AMWP8-1200 | 100% | 351 lb (159 kg) | 26.2 ft (8.0 m) |
| Genie GR-20 | 99% | 351 lb (159 kg) | 26.5 ft (8.1 m) |
| Haulotte Quick Up 8 | 99% | 351 lb (159 kg) | 26.6 ft (8.1 m) |
| MEC MME25 | 98% | 351 lb (159 kg) | 25 ft (7.6 m) |
| Haulotte Quick Up 9 | 92% | 351 lb (159 kg) | 31.2 ft (9.5 m) |
| JLG 25AM | 92% | 351 lb (159 kg) | 31 ft (9.4 m) |
Full specifications
| Battery | 24/150 V/Ah | ↗ |
| Gradeability | 25 % | ↗ |
| Height stowed | 6'6'' ft | ↗ |
| Length stowed | 4'6'' ft | ↗ |
| Lift capacity | 350 lb (159 kg) | ↗ |
| Max platform height | 19'8'' ft | ↗ |
| Max working height | 26'2'' ft | ↗ |
| Turning radius | 0(inner)/5(outer) ft | ↗ |
| Weight | 2,800 lbs (1,270 kg) | ↗ |
| Width stowed | 2'6'' ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
