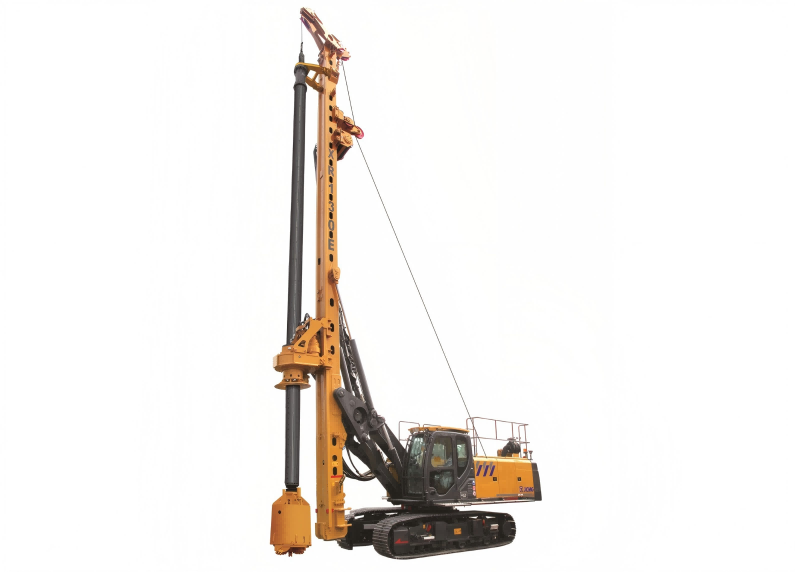

XCMG
XR130E
94,799 lb (43,000 kg)
Operating weight
Documents
Full specifications
| Auxiliary winch Max.lifting force | 50 kN | ↗ |
| Auxiliary winch Max.line speed | 70 m/min | ↗ |
| Auxiliary winch Wire rope diameter | Ф16 mm | ↗ |
| Chassis Max.gradeability | 40 % | ↗ |
| Chassis Track length | 184 in (4,667 mm) | ↗ |
| Chassis Track shoe width | 23.6 in (600 mm) | ↗ |
| Chassis Max traveling speed | 2.7 km/h | ↗ |
| Crowd cylinder Max crowd force | 120 kN | ↗ |
| Crowd cylinder Max lifting force | 140 kN | ↗ |
| Crowd cylinder Max.stroke | 11.5 ft (3.5 m) | ↗ |
| Dimensions Transport state | 14097×2500×3500 mm | ↗ |
| Dimensions Working state | 7546×3600×17724 mm | ↗ |
| Engine Brand | Cummins | ↗ |
| Engine Model | QSB7 | ↗ |
| Engine Ratedpower | 169 kW | ↗ |
| Hydraulic system Operating weight | 94,799 lb (43 t) | ↗ |
| Hydraulic system Working pressure | 35 MPa | ↗ |
| Main winch Max.lifting force | 140 kN | ↗ |
| Main winch Max.line speed | 75 m/min | ↗ |
| Main winch Wire ropediameter | Ф26 mm | ↗ |
| Mast inclination Lateral/Forward/ Backward | ±3/5/90 ° | ↗ |
| Max. drilling depth | 40/50 m | ↗ |
| Max. drilling diameter | Ф1500/Ф1300* mm | ↗ |
| Max.span of track | 98.4–142 in (2,500–3,600 mm) | ↗ |
| Rotary drive Rated output torque | 130 kNm | ↗ |
| Rotary drive Working speed | 8-35 r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
