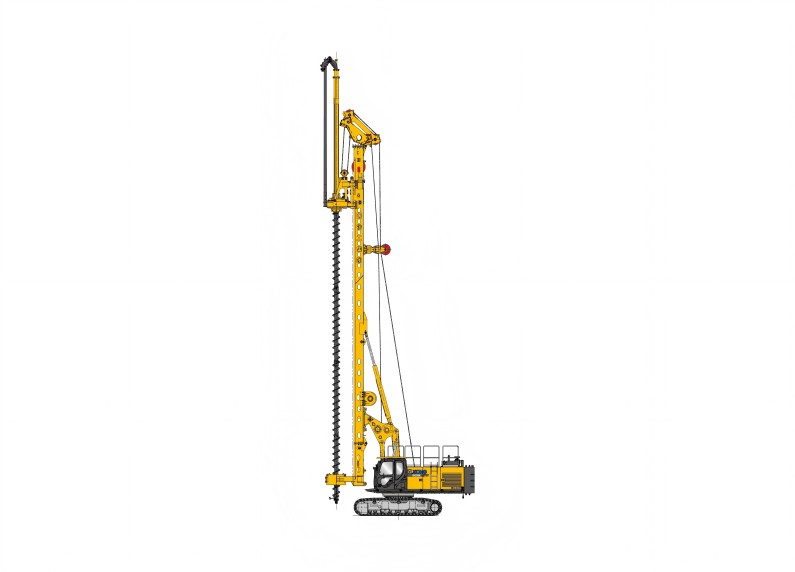

XCMG
XR200E
154,324 lb (70,000 kg)
Operating weight
Full specifications
| Auxiliary winch Max.lifting force | 80 kN | ↗ |
| Auxiliary winch Max.line speed | 70 m/min | ↗ |
| Auxiliary winch Wire rope diameter | Ф20 mm | ↗ |
| Chassis Max.gradeability | 40 % | ↗ |
| Chassis Track length | 202 in (5,142 mm) | ↗ |
| Chassis Track shoe width | 27.6 in (700 mm) | ↗ |
| Chassis Max traveling speed | 1.9 km/h | ↗ |
| Crowd cylinder Max crowd force | 210 kN | ↗ |
| Crowd cylinder Max lifting force | 210 kN | ↗ |
| Crowd cylinder Max.stroke | 15.7 ft (4.8 m) | ↗ |
| Dimensions Transport state | 16576×3000×3731 mm | ↗ |
| Dimensions Working state | 8800×4200×21615 mm | ↗ |
| Engine Brand | Isuzu | ↗ |
| Engine Model | 6HK1X | ↗ |
| Engine Ratedpower | 212 kW | ↗ |
| Hydraulic system Operating weight | 154,324 lb (70 t) | ↗ |
| Hydraulic system Working pressure | 35 MPa | ↗ |
| Main winch Max.lifting force | 190 kN | ↗ |
| Main winch Max.line speed | 75 m/min | ↗ |
| Main winch Wire ropediameter | Ф28 mm | ↗ |
| Mast inclination Lateral/Forward/ Backward | ±4/5/90 ° | ↗ |
| Max. drilling depth | 52/65 m | ↗ |
| Max. drilling diameter | Ф1800 mm | ↗ |
| Max.span of track | 117–165 in (2,960–4,200 mm) | ↗ |
| Rotary drive Rated output torque | 220 kNm | ↗ |
| Rotary drive Working speed | 7-34 r/min | ↗ |
