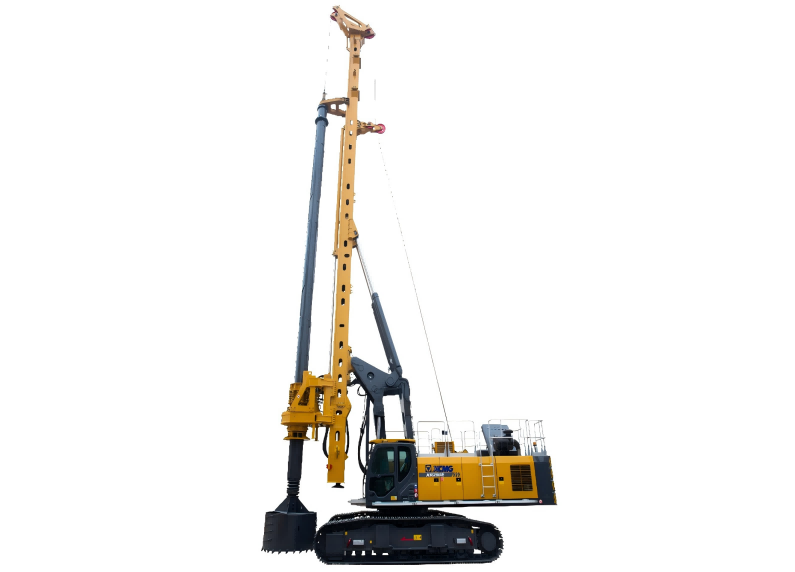

XCMG
XR280E
233,690 lb (106,000 kg)
Operating weight
Full specifications
| Auxiliary winch Max.lifting force | 100 kN | ↗ |
| Auxiliary winch Max.line speed | 41 m/min | ↗ |
| Auxiliary winch Wire rope diameter | Ф20 mm | ↗ |
| Chassis Max.gradeability | 35% | ↗ |
| Chassis Max.span of track | 138–189 in (3,500–4,800 mm) | ↗ |
| Chassis Track length | 242 in (6,150 mm) | ↗ |
| Chassis Track shoe width | 31.5 in (800 mm) | ↗ |
| Chassis Max traveling speed | 1.5 km/h | ↗ |
| Crowd cylinder Max crowd force | 280 kN | ↗ |
| Crowd cylinder Max lifting force | 340 kN | ↗ |
| Crowd cylinder Max.stroke | 19.7 ft (6 m) | ↗ |
| Dimensions Transport state | 19750×3500×3790 mm | ↗ |
| Dimensions Working state | 10825×4800×26500 mm | ↗ |
| Engine Brand | Volvo | ↗ |
| Engine Model | TAD1352VE | ↗ |
| Engine Ratedpower | 315 kW | ↗ |
| Hydraulic system Operating weight | 233,690 lb (106 t) | ↗ |
| Hydraulic system Working pressure | 33 MPa | ↗ |
| Main winch Max.lifting force | 330 kN | ↗ |
| Main winch Max.line speed | 80 m/min | ↗ |
| Main winch Wire ropediameter | Ф36 mm | ↗ |
| Mast inclination Lateral/Forward/ Backward | ±4/5/90 ° | ↗ |
| Max. drilling depth | 61/94 m | ↗ |
| Max. drilling diameter | Ф2500/Ф2300 mm | ↗ |
| Rotary drive Rated output torque | 300 kNm | ↗ |
| Rotary drive Working speed | 6-29 r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
