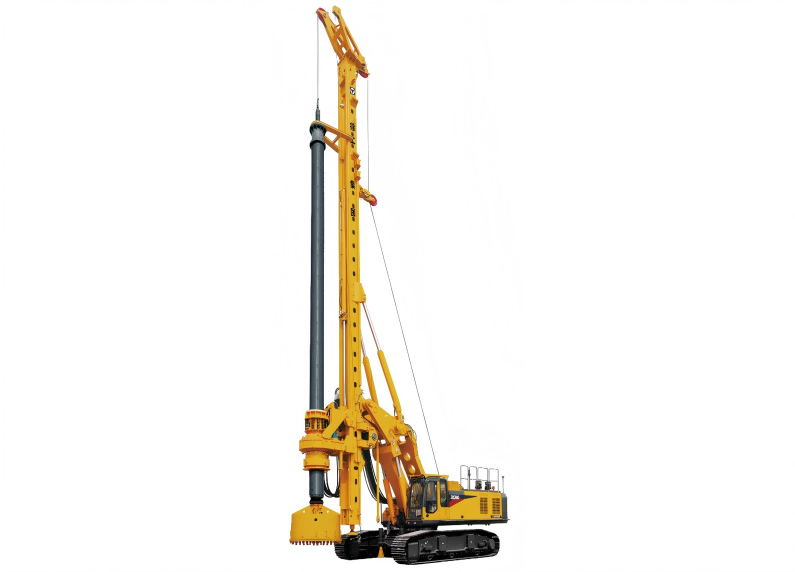

XCMG
XR360E
253,532 lb (115,000 kg)
Operating weight
Documents
Full specifications
| Auxiliary winch Max.lifting force | 100 kN | ↗ |
| Auxiliary winch Max.line speed | 41 m/min | ↗ |
| Auxiliary winch Wire rope diameter | Ф20 mm | ↗ |
| Chassis Max.gradeability | 35 % | ↗ |
| Chassis Max.span of track | 138–193 in (3,500–4,900 mm) | ↗ |
| Chassis Track length | 255 in (6,465 mm) | ↗ |
| Chassis Track shoe width | 31.5 in (800 mm) | ↗ |
| Chassis Max traveling speed | 1.6 km/h | ↗ |
| Crowd cylinder Max crowd force | 300 kN | ↗ |
| Crowd cylinder Max lifting force | 350 kN | ↗ |
| Crowd cylinder Max.stroke | 19.7 ft (6 m) | ↗ |
| Dimensions Transport state | 20651×3500×3984 mm | ↗ |
| Dimensions Working state | 11042×4900×26000 mm | ↗ |
| Engine Brand | Volvo | ↗ |
| Engine Model | TAD1353VE | ↗ |
| Engine Ratedpower | 345 kW | ↗ |
| Hydraulic system Operating weight | 253,532 lb (115 t) | ↗ |
| Hydraulic system Working pressure | 33 MPa | ↗ |
| Main winch Max.lifting force | 370 kN | ↗ |
| Main winch Max.line speed | 80 m/min | ↗ |
| Main winch Wire ropediameter | Ф36 mm | ↗ |
| Mast inclination Lateral/Forward/ Backward | ±4/5/90 ° | ↗ |
| Max. drilling depth | 69/103 m | ↗ |
| Max. drilling diameter | Ф2600 mm | ↗ |
| Rotary drive Rated output torque | 380 kNm | ↗ |
| Rotary drive Working speed | 6-28 r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
