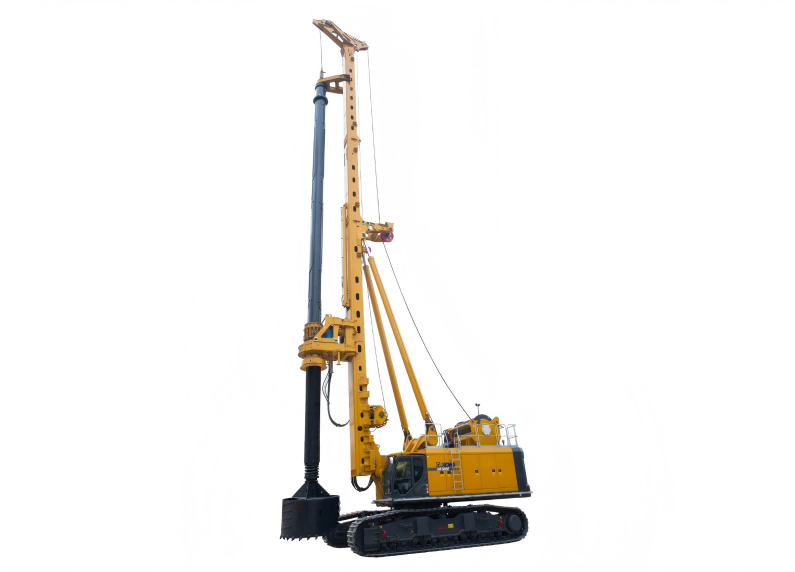

XCMG
XR500E
418,878 lb (190,000 kg)
Operating weight
Documents
Full specifications
| Auxiliary winch Max.lifting force | 180 kN | ↗ |
| Auxiliary winch Max.line speed | 60 m/min | ↗ |
| Auxiliary winch Wire rope diameter | Ф28 mm | ↗ |
| Chassis Max.gradeability | 35% | ↗ |
| Chassis Max.span of track | 159–217 in (4,050–5,500 mm) | ↗ |
| Chassis Track length | 287 in (7,281 mm) | ↗ |
| Chassis Track shoe width | 39.4 in (1,000 mm) | ↗ |
| Chassis Max traveling speed | 1 km/h | ↗ |
| Crowd cylinder Max crowd force | 500 kN | ↗ |
| Crowd cylinder Max lifting force | 500 kN | ↗ |
| Crowd cylinder Max.stroke | 19.7 ft (6 m) | ↗ |
| Dimensions Transport state | 18000×4050×3802 mm | ↗ |
| Dimensions Working state | 11500×5300×32811 mm | ↗ |
| Engine Brand | Cummins | ↗ |
| Engine Model | QSX15 | ↗ |
| Engine Ratedpower | 447 kW | ↗ |
| Hydraulic system Operating weight | 418,878 lb (190 t) | ↗ |
| Hydraulic system Working pressure | 32 MPa | ↗ |
| Main winch Max.lifting force | 600 kN | ↗ |
| Main winch Max.line speed | 65 m/min | ↗ |
| Main winch Wire ropediameter | Ф44 mm | ↗ |
| Mast inclination Lateral/Forward/ Backward | ±3/90/15 ° | ↗ |
| Max. drilling depth | 84/126 m | ↗ |
| Max. drilling diameter | Ф3500/Ф3200* mm | ↗ |
| Rotary drive Rated output torque | 500 kNm | ↗ |
| Rotary drive Working speed | 6-22 r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
