XCMG

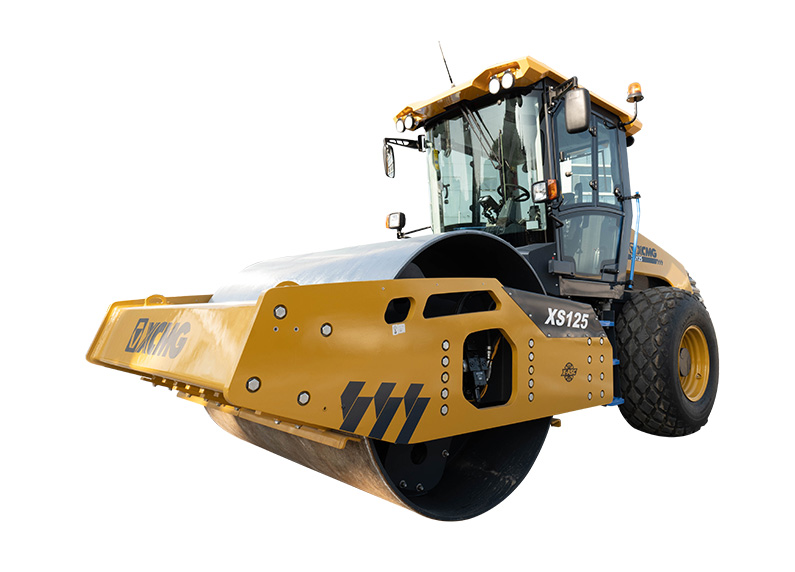

XS125(XS125PD)Stage V
154 hp
Engine power
27,337 lb (12,400 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Sany SSR212 | 97% | 145 hp | 27,337 lb (12,400 kg) |
| Volvo SD125B | 96% | 148 hp | 26,566 lb (12,050 kg) |
| Hamm HC 130i | 95% | 163 hp | 28,984 lb (13,147 kg) |
| Volvo SD115B | 95% | 148 hp | 25,613 lb (11,618 kg) |
| Ammann ARS 130 PD | 93% | 160 hp | 30,314 lb (13,750 kg) |
| Ammann ARS 130 | 93% | 134 hp | 27,426 lb (12,440 kg) |
Documents
Full specifications
| Dimensions | 5,990 x 2,300 x 2,990(XS125) / 5,990 x 2,300 x 3,145(XS125PD) mm | ↗ |
| Emission | EU Stage V | ↗ |
| Engine | F3.8 | ↗ |
| Gradeability | 60(XS125) /45(XS125PD) % | ↗ |
| Operating Weight | 12400(XS125) ;13250/13770(XS125PD) kg | ↗ |
| Rated power | 115 kW | ↗ |
| Rated speed | 2200 r/min | ↗ |
| Vibration frequency | 30/35 Hz | ↗ |
| Working speed | 0～11.0(XS125) /0～11.85(XS125PD) km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
