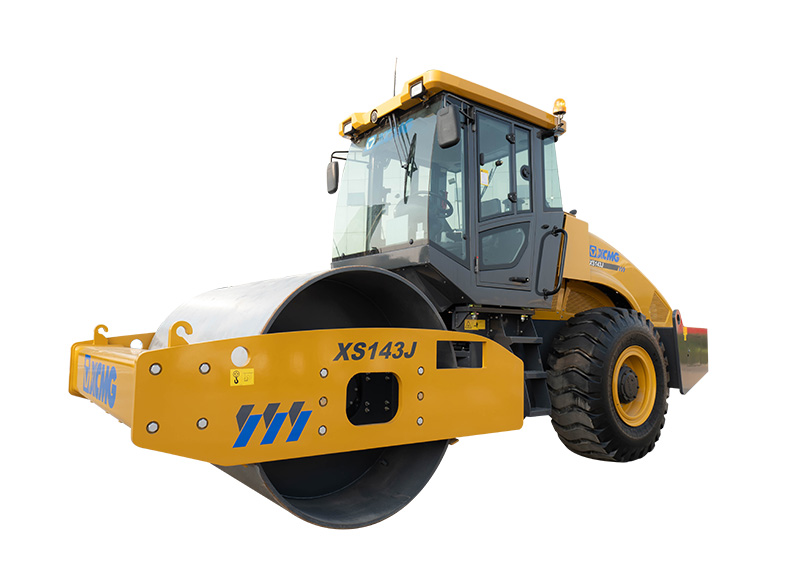

XCMG
XS143J
138 hp
Engine power
30,865 lb (14,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Bomag BW 27 RH | 97% | 134 hp | 29,983 lb (13,600 kg) |
| Ammann ARS 150 PD | 95% | 142 hp | 33,334 lb (15,120 kg) |
| Dynapac CA402D | 95% | 125 hp | 30,424 lb (13,800 kg) |
| JCB VM138D | 94% | 130 hp | 28,660 lb (13,000 kg) |
| Ammann ARS 130 | 93% | 134 hp | 27,426 lb (12,440 kg) |
| Ammann ARS 130 PD | 92% | 160 hp | 30,314 lb (13,750 kg) |
Full specifications
| Dimensions | 6,150 x 2,300 x 3,200 mm | ↗ |
| Emission | Stage Ⅱ | ↗ |
| Engine | Shangchai | ↗ |
| Gradeability | 30 % | ↗ |
| Operating Weight | 30,865 lb (14,000 kg) | ↗ |
| Rated power | 103 kW | ↗ |
| Rated speed | 1800 r/min | ↗ |
| Vibration frequency | 28/33 Hz | ↗ |
| Working speed | 2.85、5.08、11.17;2.88、5.02 km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
