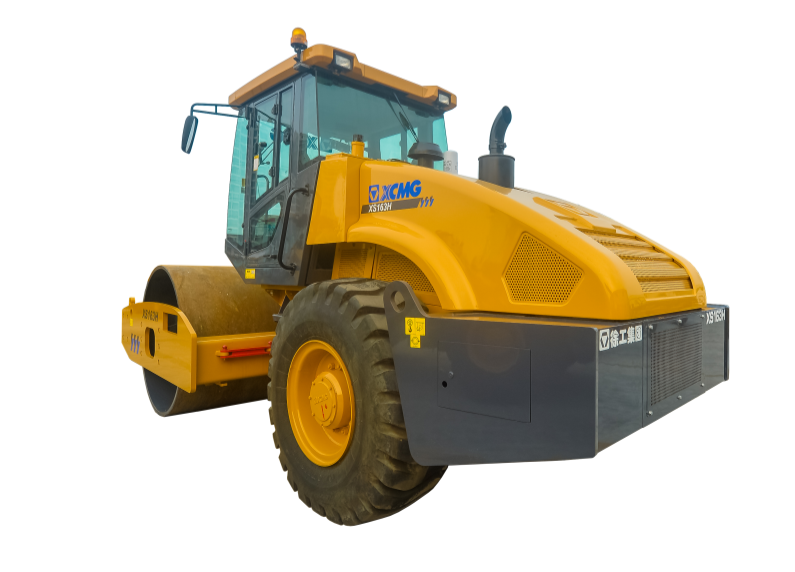

XCMG
XS163H
148 hp
Engine power
35,274 lb (16,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Ammann ARS 170 | 97% | 142 hp | 36,244 lb (16,440 kg) |
| Ammann ARS 170 PD | 96% | 160 hp | 34,877 lb (15,820 kg) |
| Ammann ARS 150 PD | 95% | 142 hp | 33,334 lb (15,120 kg) |
| Dynapac CA5000 | 93% | 173 hp | 35,274 lb (16,000 kg) |
| Dynapac CA500D | 91% | 173 hp | 33,951 lb (15,400 kg) |
| Dynapac CA512D | 90% | 173 hp | 37,479 lb (17,000 kg) |
Full specifications
| Dimensions | 6,150×2,300×3,200 mm | ↗ |
| Emission | Stage Ⅱ | ↗ |
| Engine | Shangchai | ↗ |
| Gradeability | 30 % | ↗ |
| Operating Weight | 35,274 lb (16,000 kg) | ↗ |
| Rated power | 110 kW | ↗ |
| Rated speed | 2200 r/min | ↗ |
| Vibration frequency | 28/33 Hz | ↗ |
| Working speed | 0~7.3 km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
