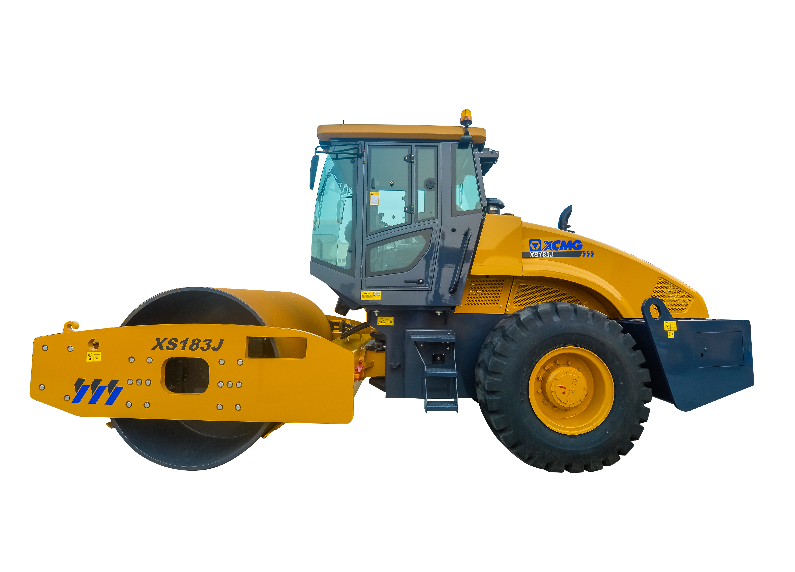

XCMG
XS183J
158 hp
Engine power
39,683 lb (18,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Ammann ARS 170 PD | 94% | 160 hp | 34,877 lb (15,820 kg) |
| Dynapac CA512PD | 94% | 173 hp | 37,920 lb (17,200 kg) |
| Dynapac CA512D | 93% | 173 hp | 37,479 lb (17,000 kg) |
| Ammann ARS 170 | 91% | 142 hp | 36,244 lb (16,440 kg) |
| Dynapac CA5000 | 90% | 173 hp | 35,274 lb (16,000 kg) |
| Dynapac CA500D | 89% | 173 hp | 33,951 lb (15,400 kg) |
Documents
Full specifications
| Dimensions | 6,320 x 2,300 x 3,200 mm | ↗ |
| Emission | Stage Ⅱ | ↗ |
| Engine | Shangchai | ↗ |
| Gradeability | 35 % | ↗ |
| Operating Weight | 39,683 lb (18,000 kg) | ↗ |
| Rated power | 118 kW | ↗ |
| Rated speed | 1800 r/min | ↗ |
| Vibration frequency | 28/33 Hz | ↗ |
| Working speed | 2.78/2.75 5.43/5.43 11.51 km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
