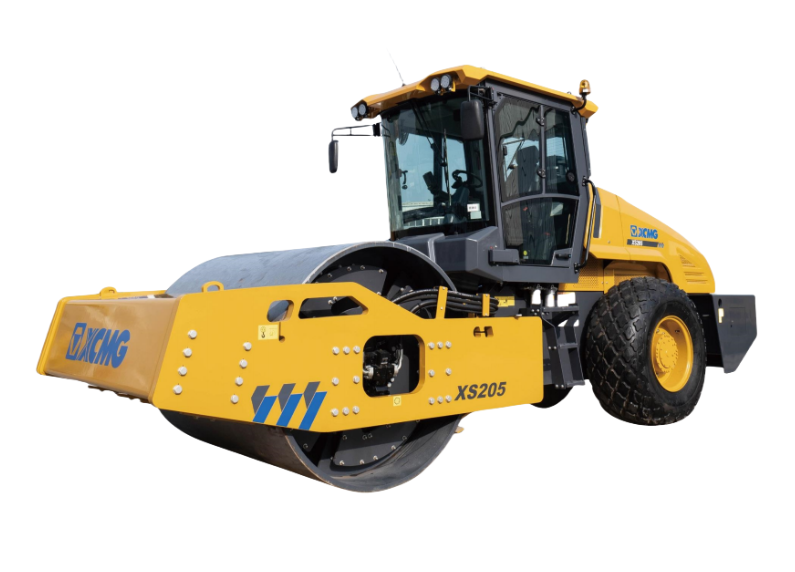

XCMG
XS205(XS205PD)Stage Ⅱ
190 hp
Engine power
29,762 lb (13,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Ammann ARS 130 PD | 91% | 160 hp | 30,314 lb (13,750 kg) |
| Hamm HC 130i | 91% | 163 hp | 28,984 lb (13,147 kg) |
| Dynapac CA500D | 89% | 173 hp | 33,951 lb (15,400 kg) |
| Dynapac CA5000 | 88% | 173 hp | 35,274 lb (16,000 kg) |
| Ammann ARS 170 PD | 85% | 160 hp | 34,877 lb (15,820 kg) |
| Bomag BW 27 RH | 85% | 134 hp | 29,983 lb (13,600 kg) |
Documents
Full specifications
| Dimensions | 6,990 x 2,350 x 3,200 mm | ↗ |
| Emission | EU Stage Ⅱ | ↗ |
| Engine | Cummins | ↗ |
| Gradeability | 50 % | ↗ |
| Operating Weight | 13500(XS205) \ 15000(XS205PD) kg | ↗ |
| Rated power | 142 kW | ↗ |
| Rated speed | 2000 r/min | ↗ |
| Vibration frequency | 28/33 Hz | ↗ |
| Working speed | 0-10.6(XS205)/0-11.3(XS205PD) km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
