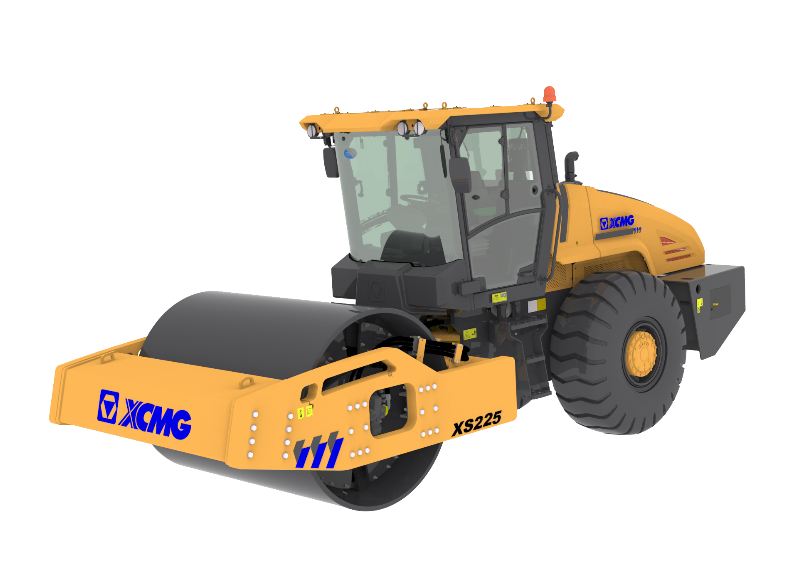

XCMG
XS225(XS225PD)
188 hp
Engine power
48,502 lb (22,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Ammann ARS 220 PD | 93% | 215 hp | 47,686 lb (21,630 kg) |
| Ammann ARS 220 | 93% | 215 hp | 47,686 lb (21,630 kg) |
| Dynapac CA610D | 93% | 173 hp | 45,525 lb (20,650 kg) |
| Ammann ARS 200 PD | 89% | 215 hp | 44,159 lb (20,030 kg) |
| Ammann ARS 200 | 89% | 215 hp | 43,872 lb (19,900 kg) |
| Dynapac CA512D | 85% | 173 hp | 37,479 lb (17,000 kg) |
Documents
Full specifications
| Dimensions | 6,990 x 2,350 x 3,200 mm | ↗ |
| Emission | Stage Ⅲ | ↗ |
| Engine | Shangchai | ↗ |
| Gradeability | 50 % | ↗ |
| Operating Weight | 22000(XS225) /23500(XS225PD) kg | ↗ |
| Rated power | 140 kW | ↗ |
| Rated speed | 2200 r/min | ↗ |
| Vibration frequency | 28/33 Hz | ↗ |
| Working speed | 0-10.6(XS225) /0-11.3(XS225PD) km/h | ↗ |
| Working width | 83.9 in (2,130 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
