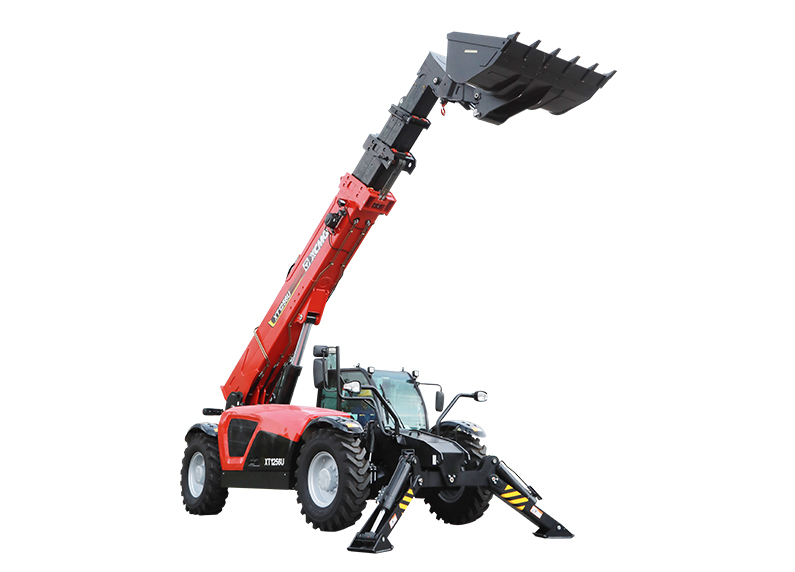

XCMG
XT1256U
Full specifications
| Lift capacity at maximum height | 5,000 lb (2,268 kg) | ↗ |
| Lift capacity at maximum reach | 3,500 lb (1,588 kg) | ↗ |
| Max.lifting capacity | 12,000 lb (5,443 kg) | ↗ |
| Max.lifting height | 56 ft (17.1 m) | ↗ |
| Max.outreach | 43 ft (13.1 m) | ↗ |
| Max.traction force | ≥65 kN | ↗ |
| Max.traveling speed | ≥20 mph | ↗ |
| Min.turning radius | ≤14.11 ft | ↗ |
| Rated power | 130/2000 hp/r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
