XCMG

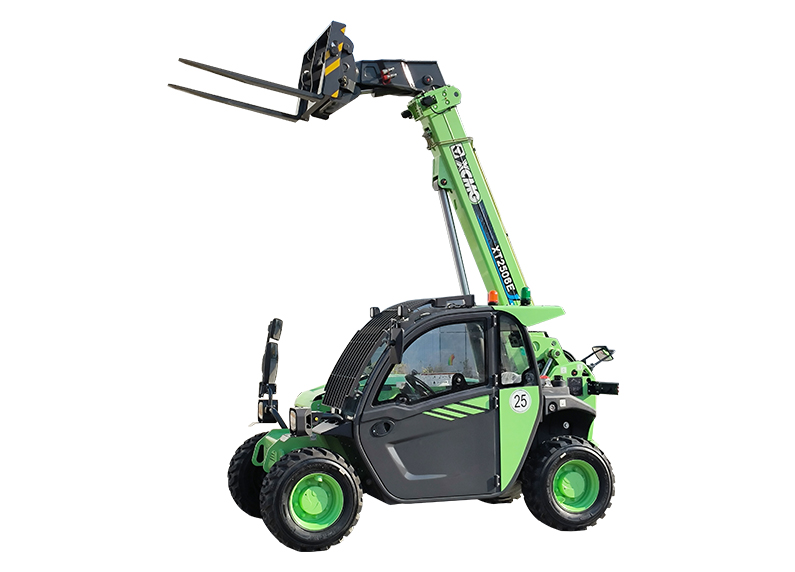

XT2506E
Full specifications
| Battery | 309V/150AH (standard) 309V/228AH (optional) | ↗ |
| Lift capacity at maximum height | 4,409 lb (2,000 kg) | ↗ |
| Lift capacity at maximum reach | 1,896 lb (860 kg) | ↗ |
| Max.lifting capacity | 5,512 lb (2,500 kg) | ↗ |
| Max.lifting height | 19.2 ft (5.8 m) | ↗ |
| Max.outreach | 11.3 ft (3.4 m) | ↗ |
| Max.traction force | 32 kN | ↗ |
| Max.traveling speed | 24.9 km/h | ↗ |
| Min.turning radius | 10.9 ft (3.3 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
