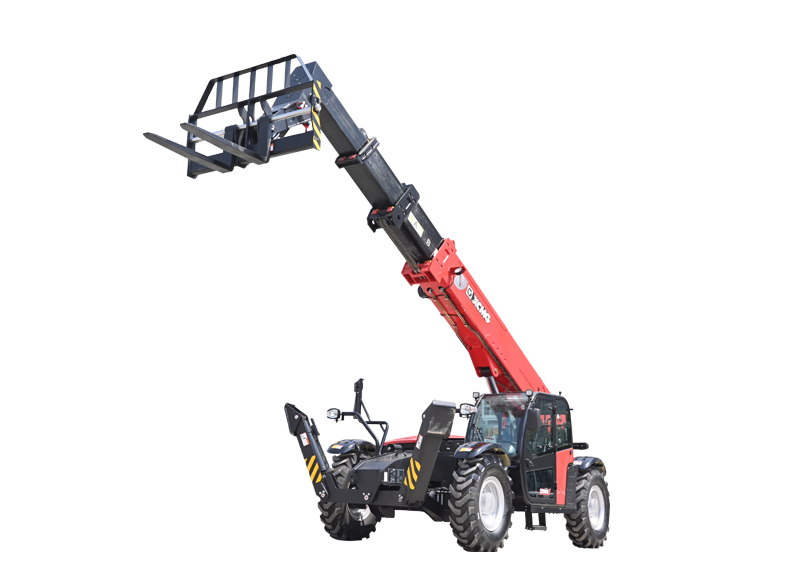

XCMG
XT5017K
Full specifications
| Lift capacity at maximum height | 4,982 lb (2,260 kg) | ↗ |
| Lift capacity at maximum reach | 2,998 lb (1,360 kg) | ↗ |
| Max.lifting capacity | 11,023 lb (5,000 kg) | ↗ |
| Max.lifting height | 56.1 ft (17.1 m) | ↗ |
| Max.outreach | 43.1 ft (13.2 m) | ↗ |
| Max.traction force | ≥60 kN | ↗ |
| Max.traveling speed | ≥32 km/h | ↗ |
| Min.turning radius | ≤4.3 m | ↗ |
| Rated power | 96/2200 kW/r/min | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
