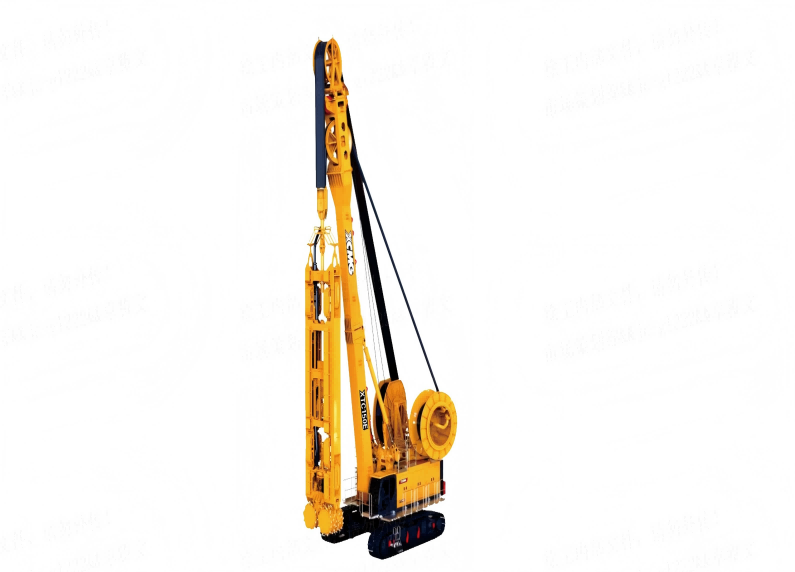

XCMG
XTC150E
711 hp
Engine power
Full specifications
| Construction depth | 344 ft (105 m) | ↗ |
| Cooling method | Water-cooling / | ↗ |
| Cutter wheel speed | 0-25 r/min | ↗ |
| Cutter wheel torque | 2×150/2×120 kN ·m | ↗ |
| Hoisting force | 2×390 kN | ↗ |
| Model | CAT-C18 / | ↗ |
| Power | 571@1900 kW@RPM | ↗ |
| Rated power | 530 kW | ↗ |
| Slurry pump flow | 450 m³/h | ↗ |
| Speed | 0-66 m/min | ↗ |
| Total operating weight | 195 ton | ↗ |
| Track length | 287 in (7,280 mm) | ↗ |
| Track retracted-extended width | 159–217 in (4,050–5,500 mm) | ↗ |
| Track shoe width | 39.4 in (1,000 mm) | ↗ |
| Trenching length | 110 in (2,800 mm) | ↗ |
| Trenching width | 31.5–70.9 in (800–1,800 mm) | ↗ |
| Wire rope diameter | 1.4 in (36 mm) | ↗ |
| Working dimensions | 11500×5500×23800 mm | ↗ |
| Working radius | 224–250 in (5,690–6,360 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
