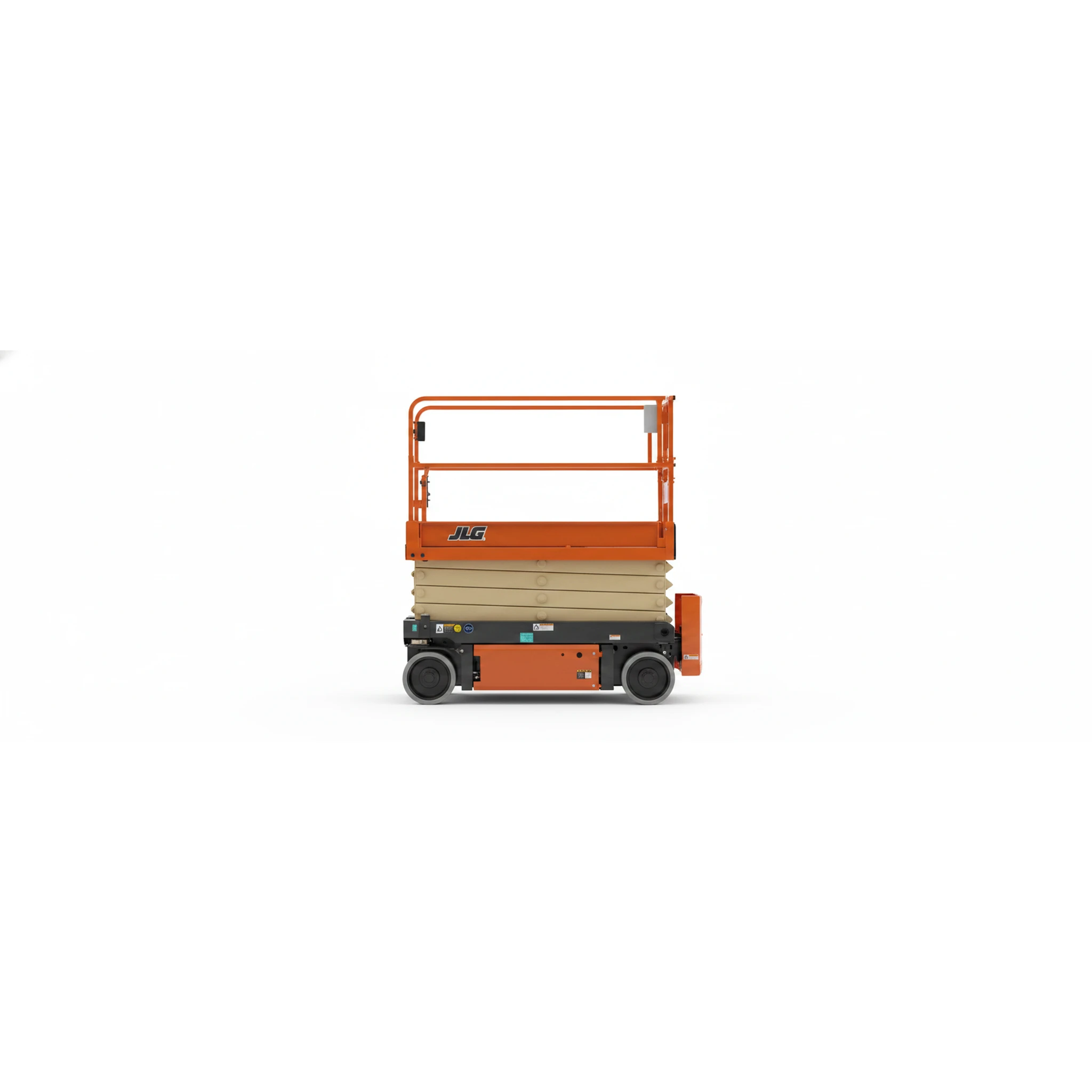

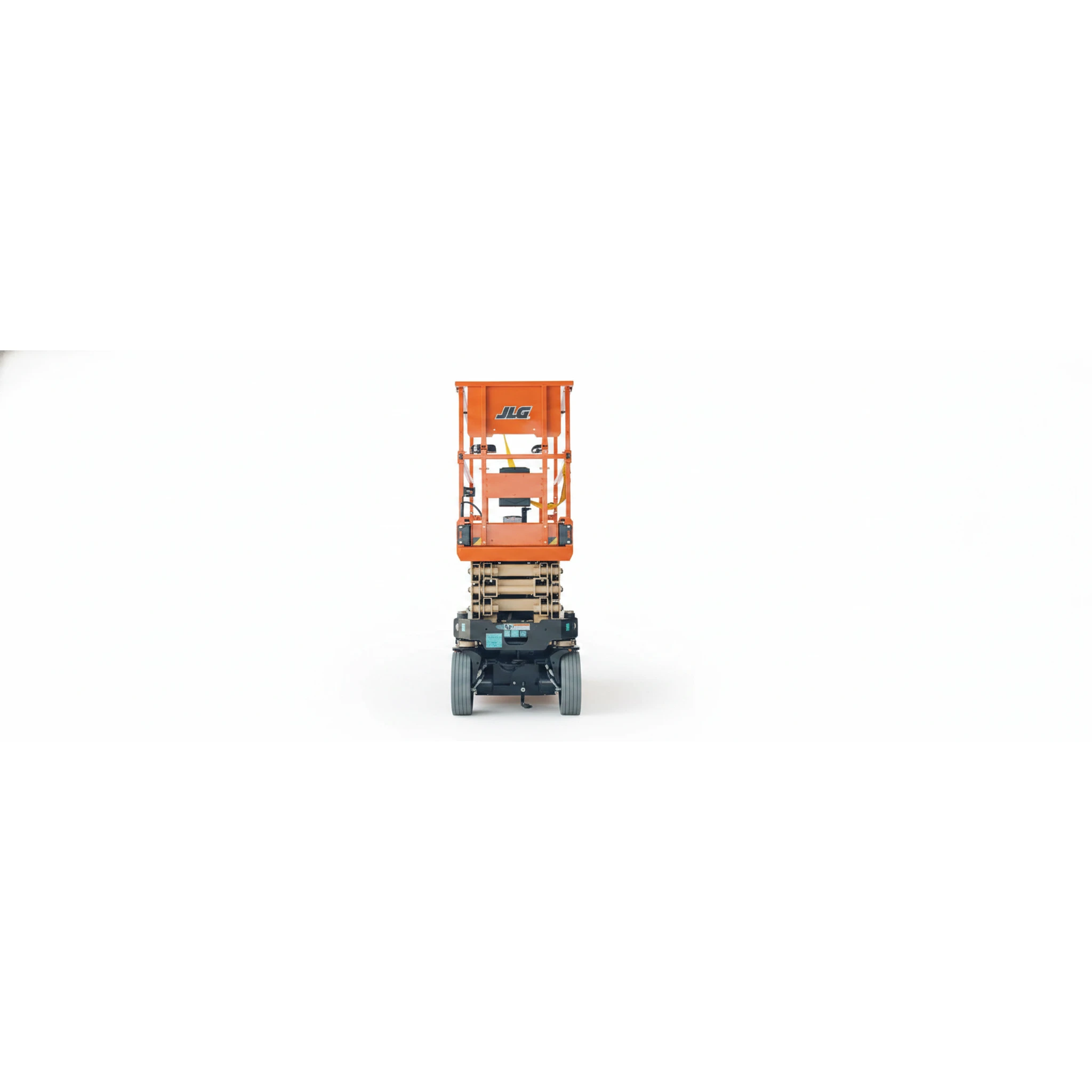

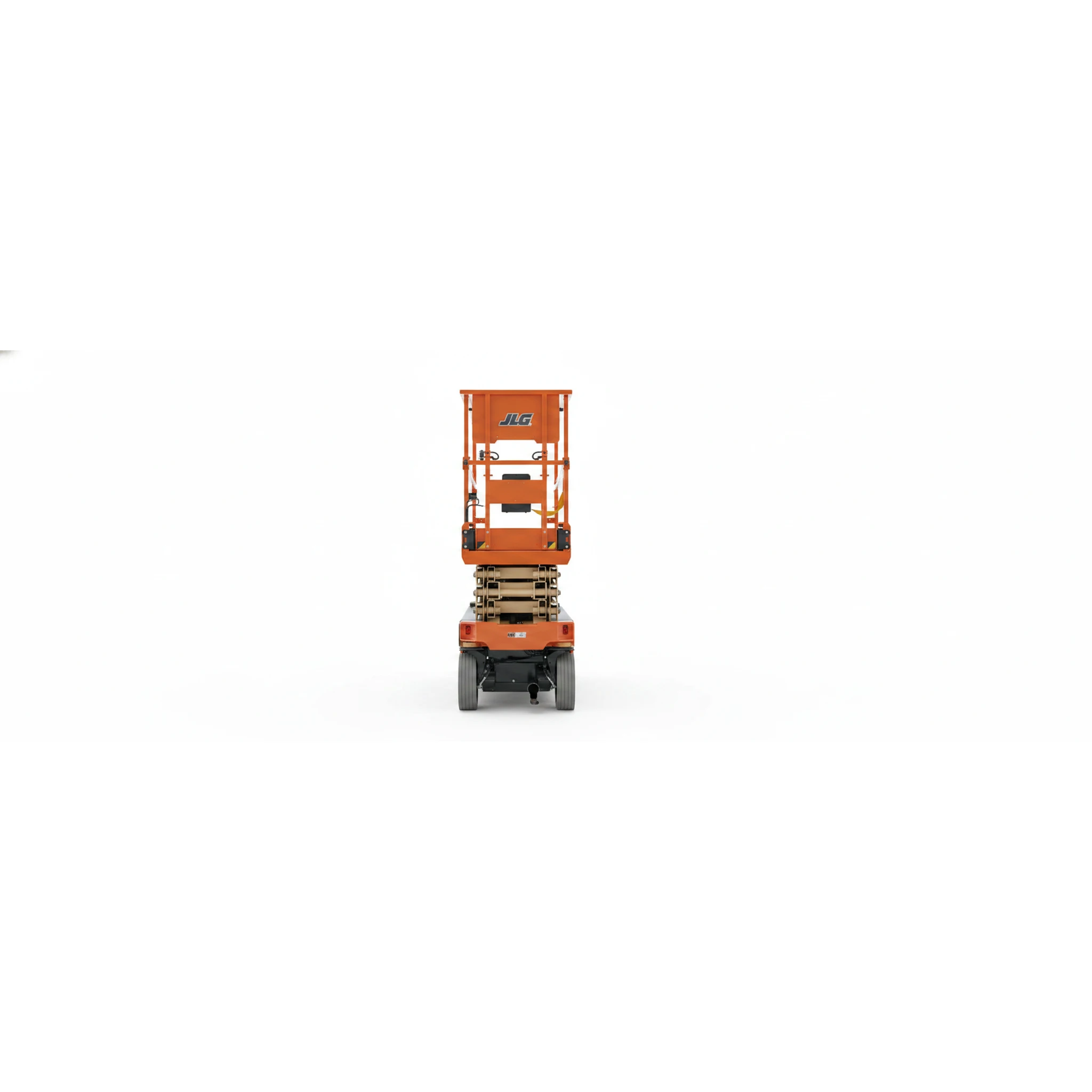

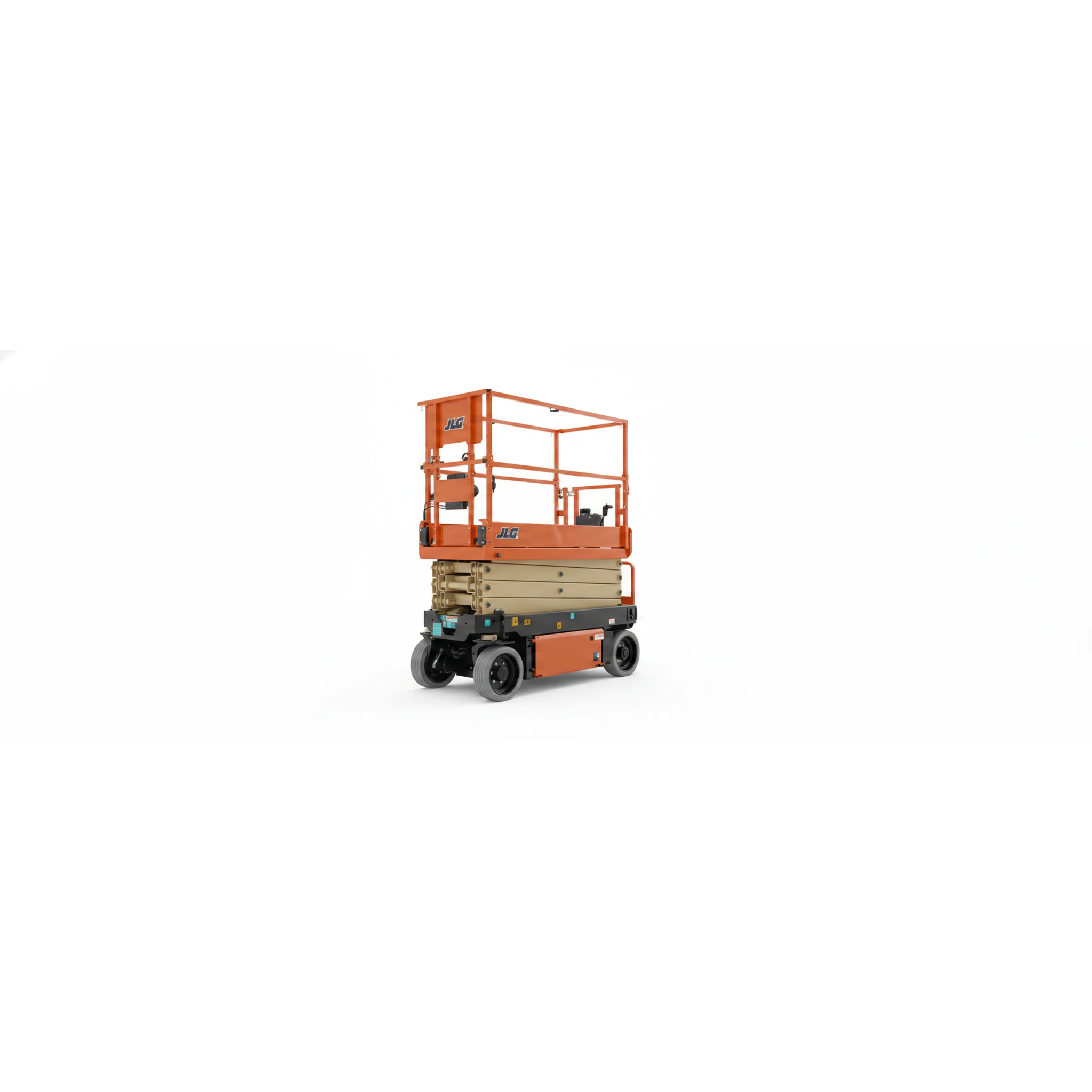

JLG
ERT3369
9,427 lb (4,276 kg)
Peso operativo
1,001 lb (454 kg)
Capacidad de plataforma
32 ft (9.8 m)
Altura de trabajo
5.6 km/h
drive speed lowered
40%
gradeability
33 ft (platform_height)
platform height
Equivalentes entre marcas
Comparar lado a lado →Máquinas comparables de otros fabricantes, evaluadas sobre especificaciones normalizadas de los fabricantes.
| Modelo | Coincidencia | Peso operativo | Capacidad de plataforma | Altura de trabajo |
|---|---|---|---|---|
| MEC 3369RT | 94% | - | 1,001 lb (454 kg) | 39.4 ft (12.0 m) |
| MEC 3369ERT | 91% | - | 1,001 lb (454 kg) | 39.4 ft (12.0 m) |
| Skyjack SJ6832 RT | 91% | 8,876 lb (4,026 kg) | - | 38.5 ft (11.7 m) |
| Snorkel S6933RTE | 91% | - | 1,001 lb (454 kg) | 39 ft (11.9 m) |
| Genie GS-68 | 89% | 6,374 lb (2,891 kg) | - | 32.5 ft (9.9 m) |
| Genie GS-68RT | 89% | 6,374 lb (2,891 kg) | - | 32.5 ft (9.9 m) |
Documentos
Especificaciones completas
| Gradeability | 35 | ↗ |
| Machine Height | 8–ft 6–in ft-in | ↗ |
| Machine Width | 69.3- in | ↗ |
| Max Platform Capacity | 1,000–lb | ↗ |
| Max Platform Height | 32–ft 10–in ft-in | ↗ |
| Max Tilt Rating | 2.5 Degree | ↗ |
| Number of Occupants | 4 | ↗ |
| Platform Capacity | 1,000 lb (454 kg) | ↗ |
| Platform Extension Capacity | 300 lb (136 kg) | ↗ |
| Platform Height | 32- ft | ↗ |
| Turning Radius | 6–ft 11–in ft-in | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
