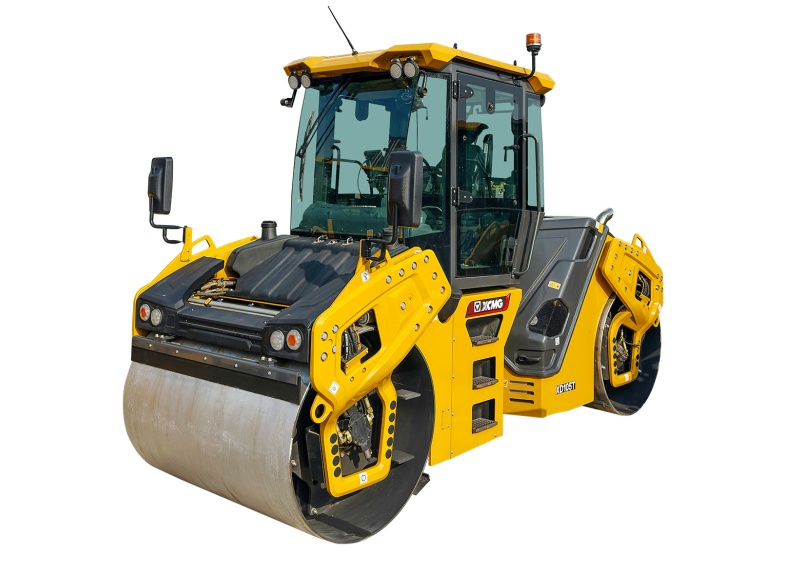

XCMG
XD105T(Stage Ⅲ)
140 hp
Potencia del motor
22,046 lb (10,000 kg)
Peso operativo
66.1 in (1,680 mm)
drum width
Equivalentes entre marcas
Comparar lado a lado →Máquinas comparables de otros fabricantes, evaluadas sobre especificaciones normalizadas de los fabricantes.
| Modelo | Coincidencia | Potencia del motor | Peso operativo | drum width |
|---|---|---|---|---|
| Bomag BW 161 AD-50 AM | 100% | 138 hp | 22,046 lb (10,000 kg) | 66.1 in (1,680 mm) |
| Bomag BW 161 AD-50 | 99% | 138 hp | 21,605 lb (9,800 kg) | 66.1 in (1,680 mm) |
| Bomag BW 161 ADO-5 | 99% | 138 hp | 21,385 lb (9,700 kg) | 66.1 in (1,680 mm) |
| Bomag BW 161 AC-50 | 98% | 138 hp | 20,944 lb (9,500 kg) | 66.1 in (1,680 mm) |
| Bomag BW 161 ADO-50 | 98% | 138 hp | 21,164 lb (9,600 kg) | 66.1 in (1,680 mm) |
| Bomag BW 161 AD-5 AM | 97% | 127 hp | 22,046 lb (10,000 kg) | 66.1 in (1,680 mm) |
Documentos
Especificaciones completas
| Drum width | 66.1 in (1,680 mm) | ↗ |
| Emission | EU Stage Ⅲ | ↗ |
| Excitation force | 110/101 kN | ↗ |
| Model | F3.8 | ↗ |
| Operating weight | 22,046 lb (10,000 kg) | ↗ |
| Rated power | 104 kW | ↗ |
| Rated speed | 2200 r/min | ↗ |
| Static linear load | 292/292 N/cm | ↗ |
| Theoretical gradeability | 35% | ↗ |
| Vibration frequency | 60/45 Hz | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
