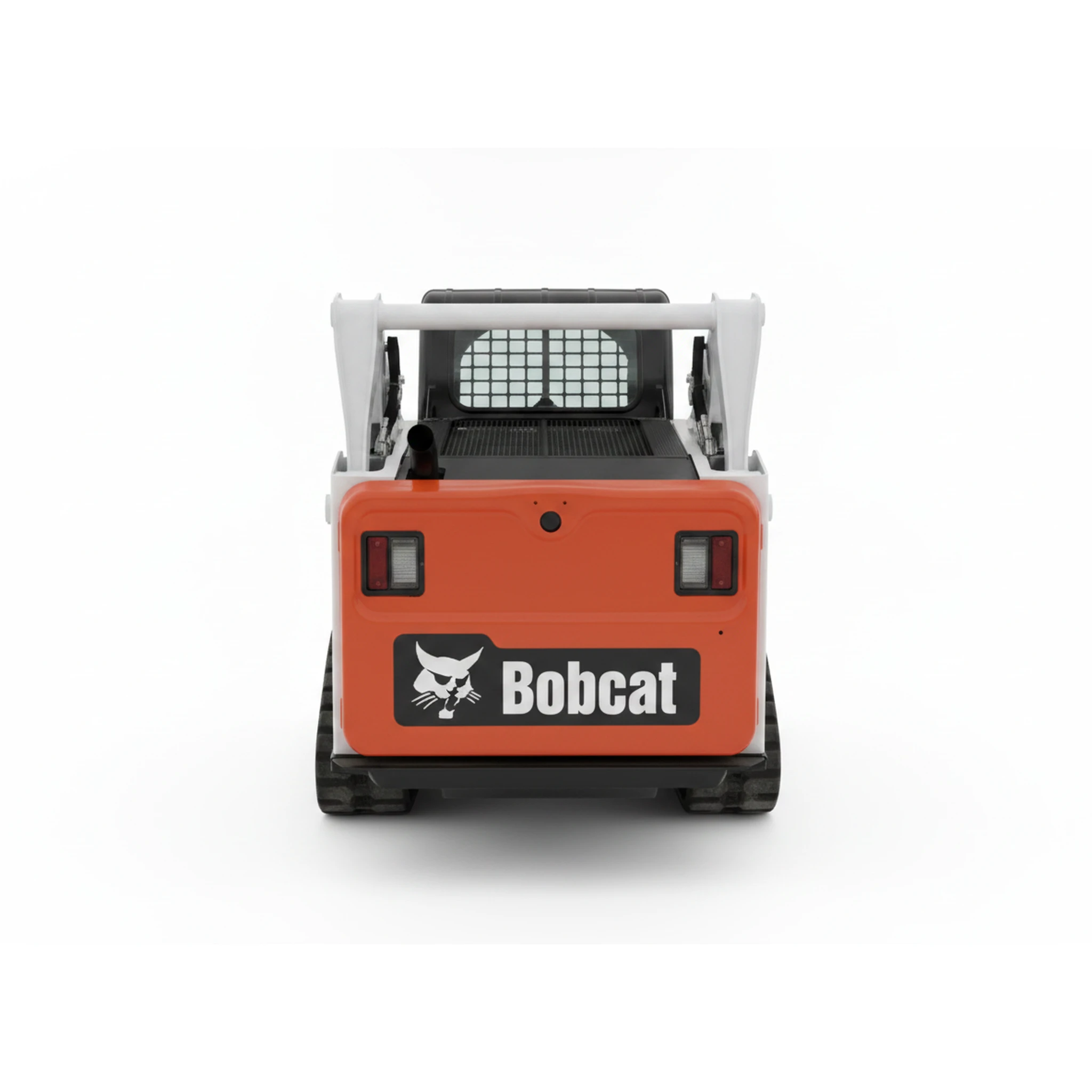

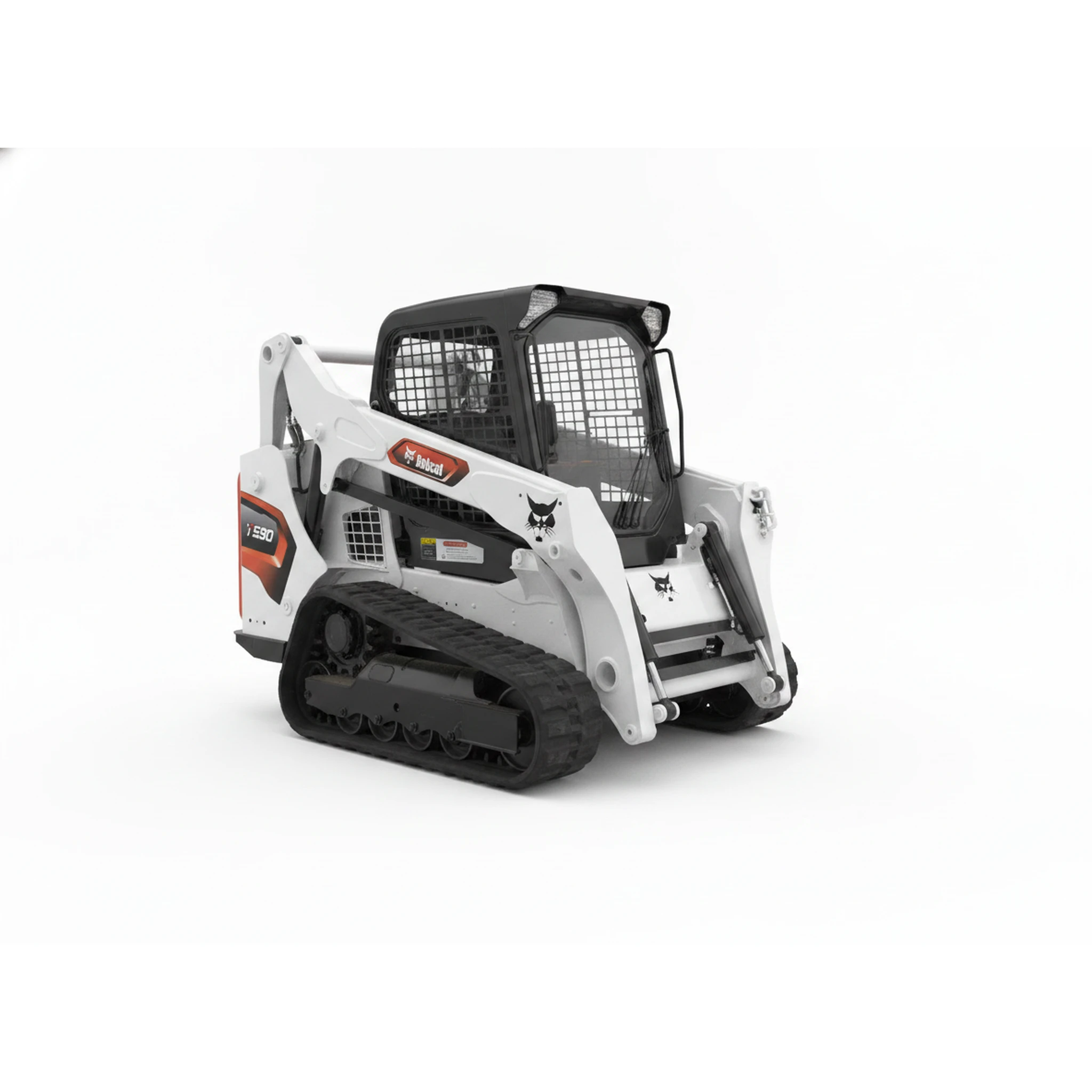

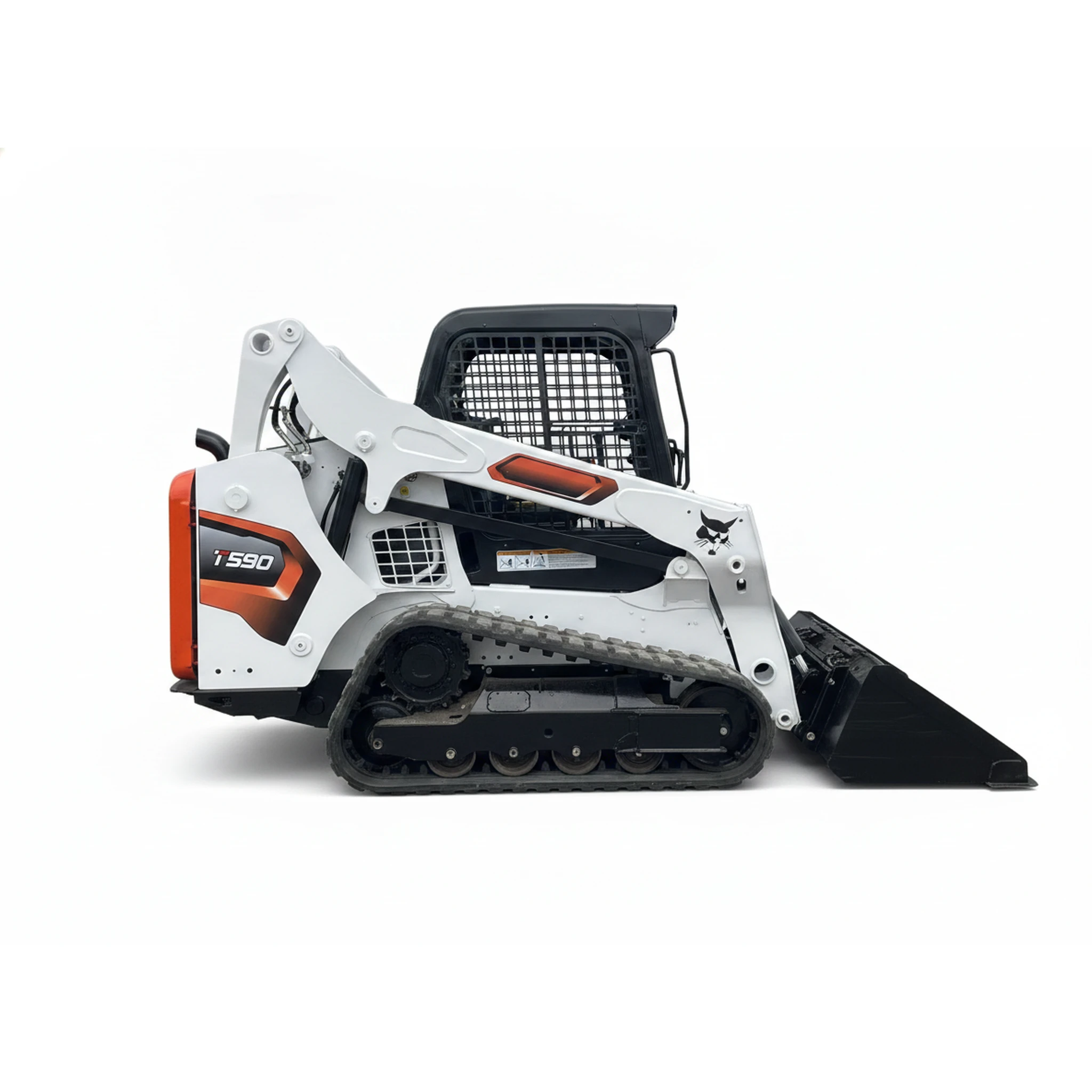

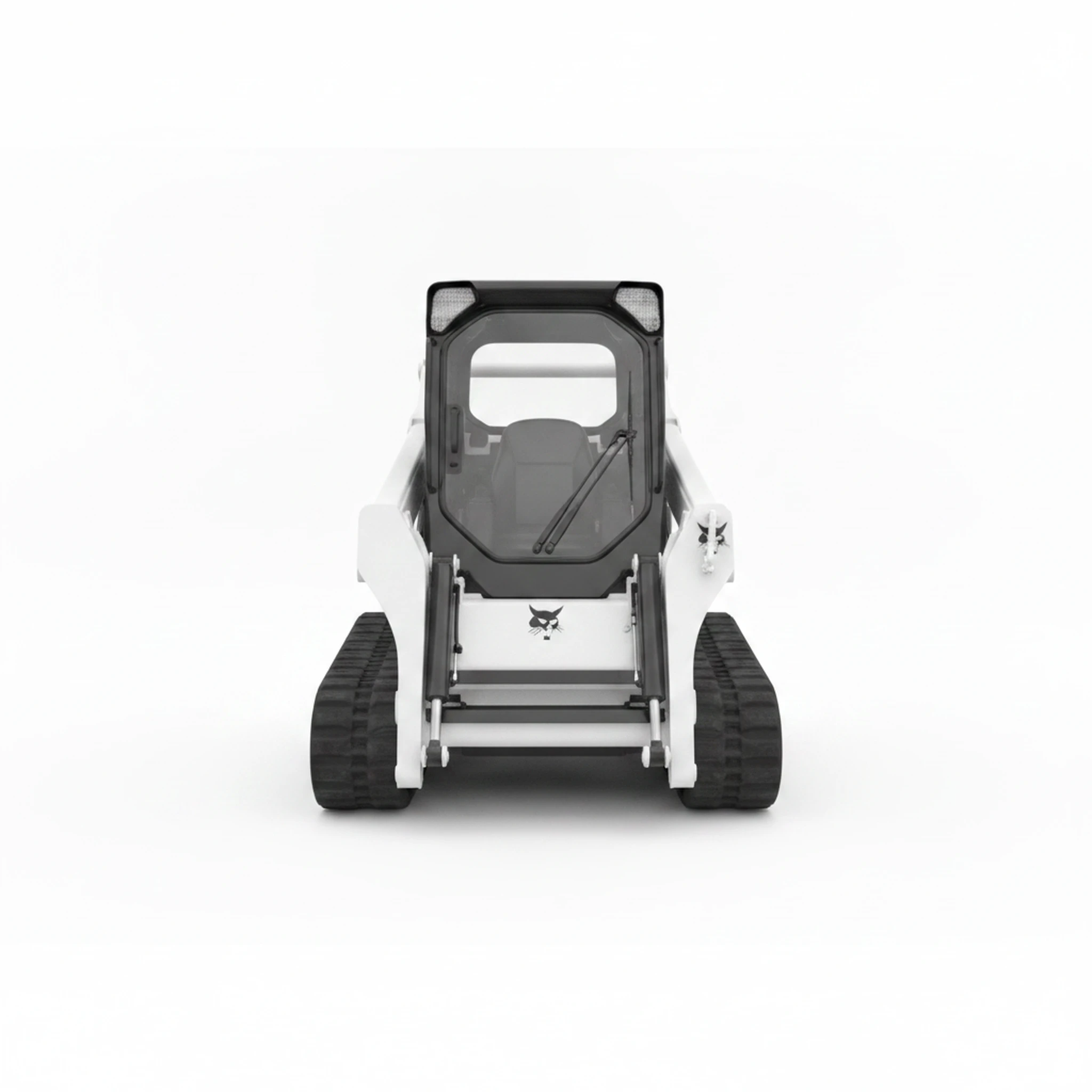

Bobcat
T590
7,822 lb (3,548 kg)
Poids en service
Documents
Spécifications complètes
| Bucket Width | 68 in. (1727 mm) | ↗ |
| Cab Height | 77.8 in. (1976 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 36.5 gal. (138.2 L) | ↗ |
| Ground Pressure (with optional tracks) | 4.1 psi (0.028 MPa) | ↗ |
| Ground Pressure (with standard tracks) | 5.1 psi (0.035 MPa) | ↗ |
| Height to Hinge Pin | 119.0 in. (3023 mm) | ↗ |
| Horsepower | 66 hp | ↗ |
| Hydraulic High Flow (optional) | 26.7 gpm (101.1 L/min.) | ↗ |
| Hydraulic Standard Flow | 17.1 gpm (64.7 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.3 MPa) | ↗ |
| Length of Track on Ground | 54.1 in. (1374 mm) | ↗ |
| Lift Arm Path | Vertical | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 3000 lb. (1361 kg) | ↗ |
| Operating Weight | 7822 lb. (3548 kg) | ↗ |
| ROC with Optional Roller Suspension | 1950 lb. (885 kg) | ↗ |
| Rated Operating Capacity (ROC) | 2100 lb. (953 kg) | ↗ |
| Tipping Load | 6000 lb. (2722 kg) | ↗ |
| Track Width – Optional | 15.75 in. (400 mm) | ↗ |
| Track Width – Standard | 12.6 in. (320 mm) | ↗ |
| Travel Speed – High Range | 10.4 mph (16.7 km/hr.) | ↗ |
| Travel Speed – Single Speed | 7.1 mph (11.4 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
