3,000-4,500 lb Narrow Aisle Reach Truck
The 3,000-4,500 lb narrow aisle reach truck is the medium-capacity class for warehouse operations handling heavier pallets and deep double-reach racking systems to 30 feet and beyond. This size band bridges light-duty pallet handling and heavy-load, high-lift applications. With 58 models from manufacturers including Crown, Raymond, Mitsubishi, and Hyster, this class offers the widest selection for balancing load capacity, lift height, and aisle width constraints.
81
Models
15
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
All sizes
81 models
Up to 3,000 lb
13 models
3,000-4,500 lb
58 models
4,500+ lb
7 models
Other sizes
3 models
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Load capacity | 1,360–2,040 kg (3,000–4,500 lb) | Defining range for this size class; handles heavier palletized goods and multi-pallet loads |
| Lift height | 5–59 ft (1.5–18.0 m) | Broad range supports ground-level staging through high-density racking systems over 30 ft |
| Reach depth | Double-reach capable | Pantograph mast extends to place and retrieve pallets two positions deep in racking |
| Aisle width requirement | 8–9 ft (2.4–2.7 m) | Operates in narrower aisles than counterbalance forklifts, maximizing warehouse density |
How to choose
This size class is appropriate for operations handling pallet loads routinely exceeding 3,000 lb or requiring deep double-reach capability in racking systems 30 feet and higher. When typical loads remain below 3,000 lb and lift heights stay under 30 feet, the Up to 3,000 lb Narrow Aisle Reach Truck offers adequate capacity with improved maneuverability and lower operating costs. For applications involving consistent loads above 4,500 lb, high-density storage exceeding 40 feet, or specialized heavy-pallet operations, the 4,500+ lb Narrow Aisle Reach Truck provides the necessary structural capacity and stability.
What this size handles
- High-density warehouse storage with double-deep racking at 30–40 ft
- Distribution centers handling full pallets of automotive parts or appliances
- Food and beverage warehouses storing heavy canned goods or bottled products
- Manufacturing facilities with elevated mezzanine storage requiring reach access
- Cold storage operations placing and retrieving frozen goods in multi-level racking
- Third-party logistics facilities managing mixed-weight inventory at height
Safety & operation
- Operators must hold certification for powered industrial trucks; reach truck training includes pantograph operation and load handling at height
- Overhead guards and load backrests are standard; capacity decreases as lift height increases, requiring adherence to load charts
- Stabilizing outrigger legs extend beyond chassis; adequate aisle clearance and floor condition are critical to prevent tipping
- Racking systems must be rated for double-deep loads and maintained to prevent pallet misplacement or reach mechanism interference
Transport & logistics
- Delivered on flatbed or enclosed trailers; machines typically weigh 4,000–7,000 lb depending on mast height and battery configuration
- Loading requires dock-height platform or ramps rated for combined machine and battery weight
- Narrow chassis and stabilizing outriggers require secure tie-down points and transit protection for mast assembly
Power & supply
- Electric battery-powered; most units use 36V, 48V, or 80V industrial battery packs requiring 208V or 480V three-phase charging infrastructure
- On-site charging stations must match battery voltage and amp-hour rating; opportunity charging or battery-swap programs support multi-shift operations
- Lithium-ion models accept faster charge cycles and eliminate battery changeout requirements
Frequently asked
What lift height is typical in this capacity class?
Models in this band commonly reach 30–40 ft, though configurations extend to 59 ft for specialized high-density racking. Load capacity diminishes at maximum lift heights per manufacturer load charts.
How does load capacity change with lift height?
Reach trucks experience de-rating as mast height increases; a machine rated for 4,000 lb at 10 ft may carry only 2,500–3,000 lb at 35 ft. Operators consult the load chart affixed to each unit.
What aisle width do these machines require?
This class typically operates in aisles 8–9 ft wide, narrower than counterbalance forklifts but wider than very narrow aisle (VNA) systems. Exact requirements depend on pallet size, load overhang, and turning radius.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Load capacity | Lift height | Engine power |
|---|---|---|---|
| Big Joe PDSR | 3,000 lb (1,361 kg) | 15.8 ft (4.8 m) | - |
| Crown RC 5700 | 3,501 lb (1,588 kg) | 23 ft (7.0 m) | - |
| Crown TSP 1000 | 3,300 lb (1,497 kg) | 44.2 ft (13.5 m) | - |
| Crown TSP 1500 | 3,300 lb (1,497 kg) | 56.2 ft (17.1 m) | - |
| Crown RR 5700 | 3,999 lb (1,814 kg) | 33.3 ft (10.1 m) | - |
| Crown RD 5700 | 3,199 lb (1,451 kg) | 33.3 ft (10.1 m) | - |
Related equipment
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
3,000-4,500 lb Narrow Aisle Reach Truck
58 models · Page 1 of 2 · Every spec cited to source
Big Joe PDSR
3,000 lb (1,361 kg)
15.8 ft (4.8 m)
→
Raymond 9700 Swing-Reach Truck
3,000 lb (1,361 kg)
42.8 ft (13.0 m)
→
Hyster R1.4
3,000 lb (1,361 kg)
→
Hyster W30ZMU L
3,000 lb (1,361 kg)
→
Noblelift PSR30
3,000 lb (1,361 kg)
→
Hyster W30ZR
3,000 lb (1,361 kg)
→
Vestil SL3-63-AA
3,000 lb (1,361 kg)
5.2 ft (1.6 m)
→
Raymond 9600 Swing-Reach Truck
3,000 lb (1,361 kg)
32.8 ft (10.0 m)
→
Mitsubishi RB14N3C
3,086 lb (1,400 kg)
→
Mitsubishi RB14N3L
3,086 lb (1,400 kg)
→
Hangcha XC Series Reach Truck 1.4-2.5t Lithium
3,086 lb (1,400 kg)
→
Crown RD 5700
3,199 lb (1,451 kg)
33.3 ft (10.1 m)
→
Crown RD 5700S
3,199 lb (1,451 kg)
36.8 ft (11.2 m)
→
Raymond 7000 Series Deep-Reach Truck
3,199 lb (1,451 kg)
45.2 ft (13.8 m)
→
Crown TSP 1000
3,300 lb (1,497 kg)
44.2 ft (13.5 m)
→
Crown TSP 1500
3,300 lb (1,497 kg)
56.2 ft (17.1 m)
→
Raymond 9800 Swing-Reach Truck
3,300 lb (1,497 kg)
48.7 ft (14.8 m)
→
Mitsubishi THD15N3
3,307 lb (1,500 kg)
→
Mitsubishi VNT15
3,307 lb (1,500 kg)
→
Mitsubishi VNT15XL
3,307 lb (1,500 kg)
→
EP Equipment CQD15SD
3,307 lb (1,500 kg)
37.7 ft (11.5 m)
→
Hangcha A Series Stand-on Reach Truck 1.5-1.8t Li-Ion
3,307 lb (1,500 kg)
→
Jungheinrich ETV 2i (ETV 214i/216i)
3,307 lb (1,500 kg)
35.1 ft (10.7 m)
→
Hyster R1.6
3,501 lb (1,588 kg)
→
Hyster R1.6HD
3,501 lb (1,588 kg)
→
Hyster R1.6N
3,501 lb (1,588 kg)
→
Hyster W35ZMU L
3,501 lb (1,588 kg)
→
Hyster W35ZMU M
3,501 lb (1,588 kg)
→
Hyster W35ZMU S
3,501 lb (1,588 kg)
→
Crown RC 5700
3,501 lb (1,588 kg)
23 ft (7.0 m)
→
Hyster N35ZDR2
3,501 lb (1,588 kg)
→

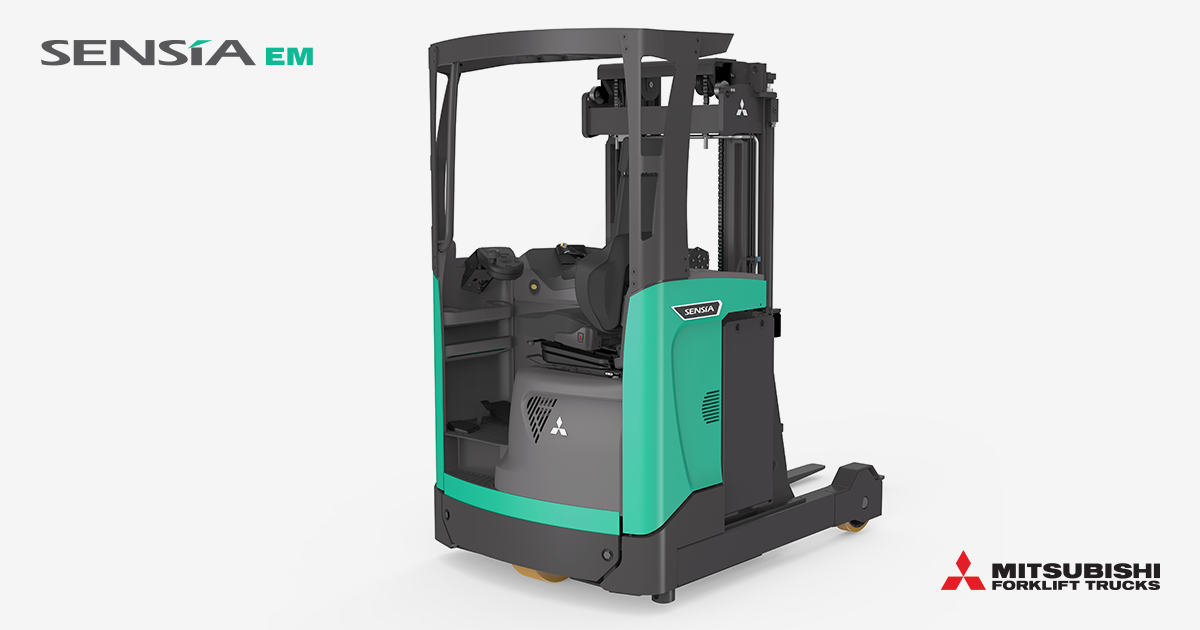

Mitsubishi RB16N3
3,527 lb (1,600 kg)
→
Mitsubishi RB16N3H
3,527 lb (1,600 kg)
→
Mitsubishi RB16N3HS
3,527 lb (1,600 kg)
→
Komatsu FR23K-3
3,750 lb (1,701 kg)
→
Clark NPX15-22
3,750 lb (1,701 kg)
→
Raymond 7200 Reach Fork Truck
3,750 lb (1,701 kg)
22.5 ft (6.9 m)
→
EP Equipment CQD18S2
3,968 lb (1,800 kg)
24.6 ft (7.5 m)
→
Crown RR 5700
3,999 lb (1,814 kg)
33.3 ft (10.1 m)
→
Raymond 7300 Reach Fork Truck
3,999 lb (1,814 kg)
31 ft (9.4 m)
→
Raymond 7500 DockStance Reach Truck
3,999 lb (1,814 kg)
37 ft (11.3 m)
→

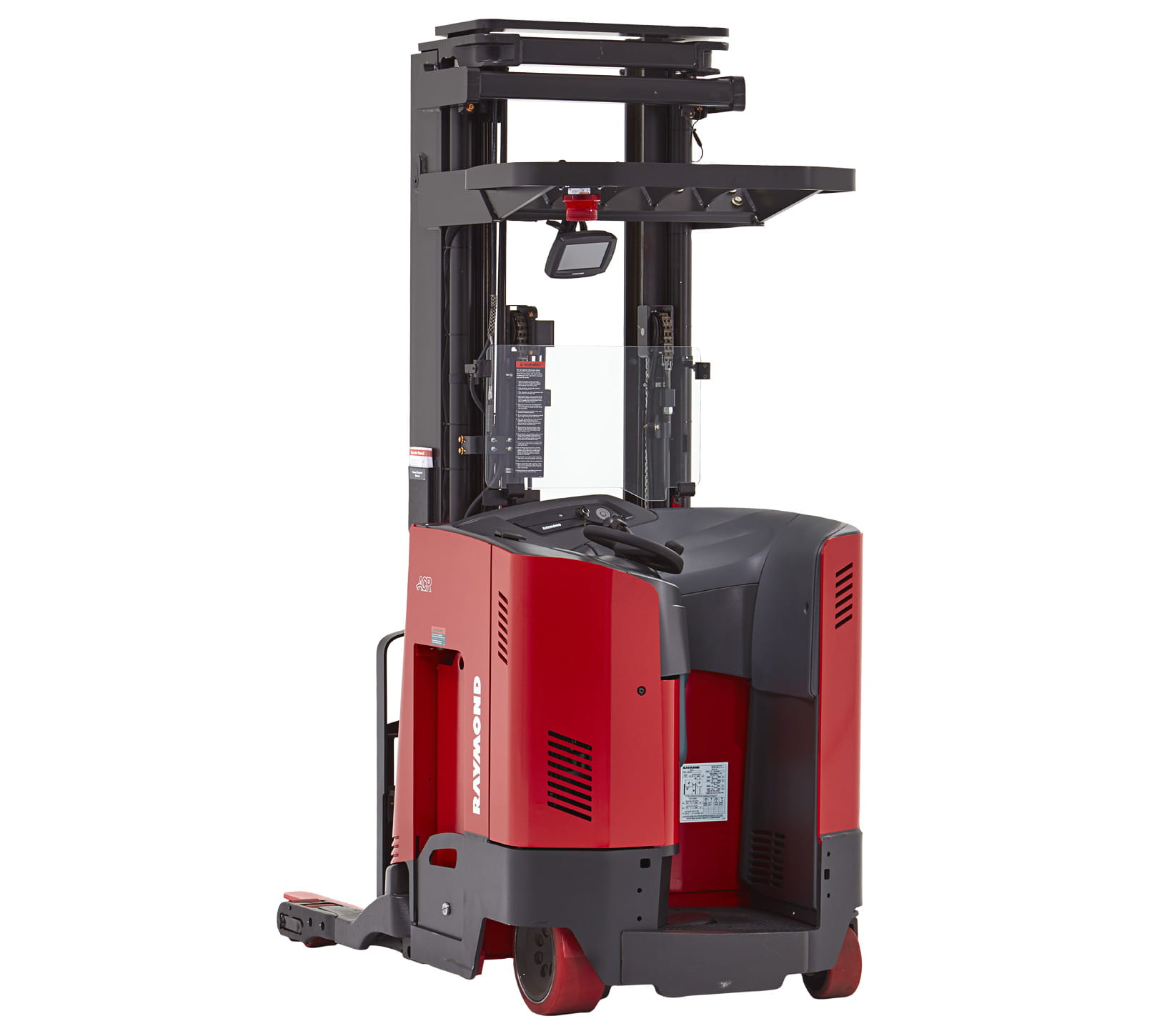

Raymond 7500 Universal Stance Reach Truck
3,999 lb (1,814 kg)
37 ft (11.3 m)
→
Raymond 7700 Sit/Stand Reach Truck
3,999 lb (1,814 kg)
37 ft (11.3 m)
→
Raymond Transtacker TRT
3,999 lb (1,814 kg)
59 ft (18.0 m)
→
Jungheinrich ETV 3i (ETV 314i–325i)
4,299 lb (1,950 kg)
45.9 ft (14.0 m)
→
Mitsubishi RB20N3
4,409 lb (2,000 kg)
→
Mitsubishi RB20N3H
4,409 lb (2,000 kg)
→
Mitsubishi RB20N3HX
4,409 lb (2,000 kg)
→
