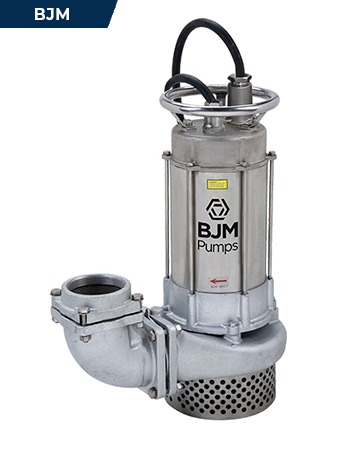

BJM Pumps
JX22SS
146 gpm
Flow rate
91 ft (27.7 m)
Max head
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Flow rate | Max head |
|---|---|---|---|
| Godwin GSP20SL | 84% | 140 gpm | 65 ft (19.8 m) |
| Godwin GSP20 | 76% | 110 gpm | 70 ft (21.3 m) |
| Ebara DVS | 74% | 238 gpm | 78.7 ft (24.0 m) |
| Gorman-Rupp SH Series | 74% | 280 gpm | 95 ft (29.0 m) |
| Ebara DG | 69% | 79 gpm | 108 ft (33.0 m) |
| Ebara BEST 2-5 | 66% | 95 gpm | 60.4 ft (18.4 m) |
Documents
Full specifications
| Discharge | 3" NPT-M | ↗ |
| Horsepower | 3.0 HP | ↗ |
| Max Flow | 146 GPM | ↗ |
| Max Head | 91 ft (27.7 m) | ↗ |
| Max Solids | 0.4 in (9.4 mm) | ↗ |
| Voltage | 208/230/460/575 V | ↗ |
| Weight | 96 lbs (43.5 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
