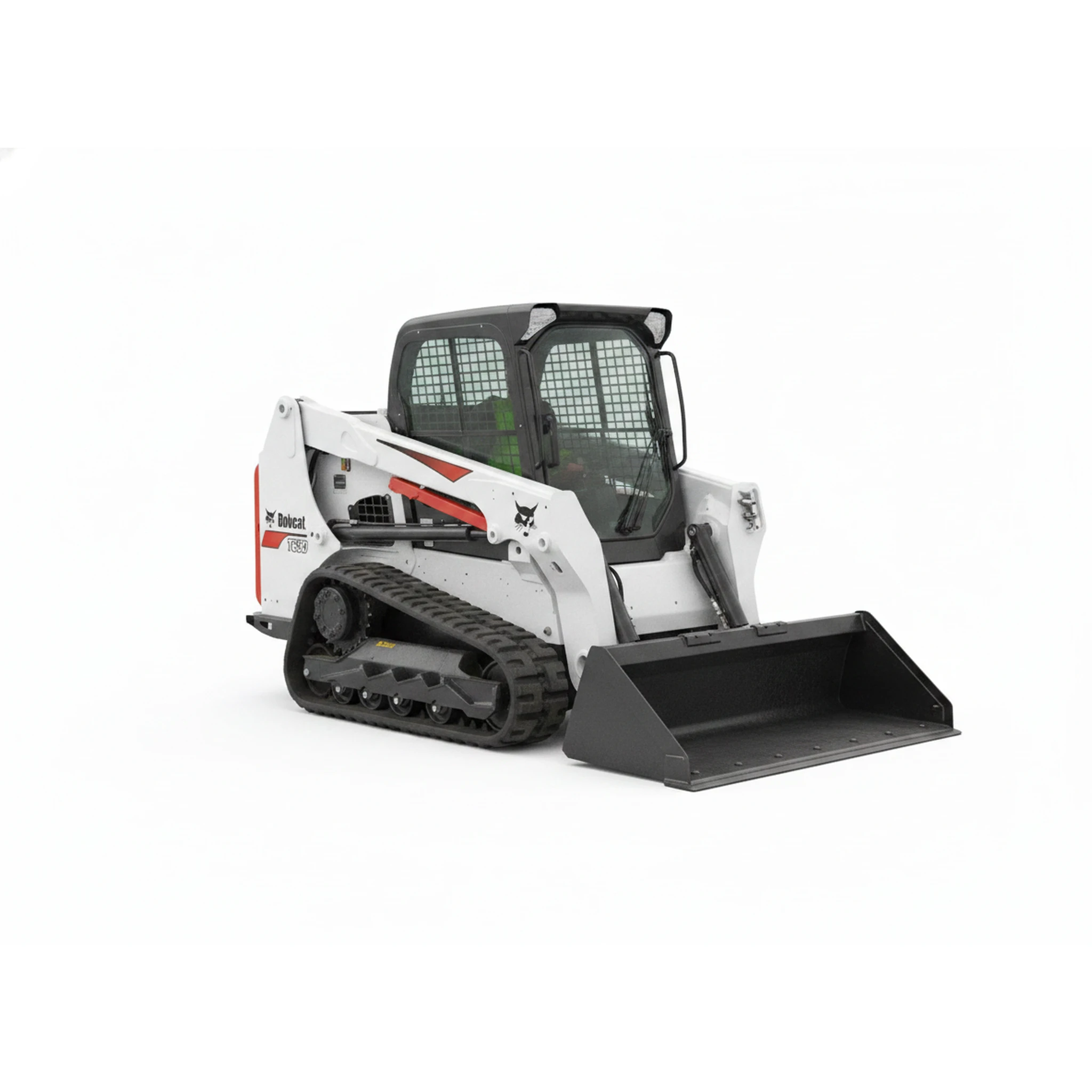

Bobcat
T630
74 hp
Engine power
166.2 l
fuel tank capacity
0.4 bar
ground pressure
2,101 lb (953 kg)
lift capacity
6,001 lb (2,722 kg)
tipping load
12.6 in (320 mm)
track width
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | fuel tank capacity | ground pressure |
|---|---|---|---|---|
| Takeuchi TL8R2 | 88% | 73 hp | 107 L | - |
| Caterpillar 259D3 | 83% | 72 hp | 94 L | - |
| Takeuchi TL6R | 82% | 65 hp | 76 L | - |
| Caterpillar 279D3 | 79% | - | 105 L | - |
| Case TR270B | 78% | 74 hp | 73.8 L | - |
| Case TV370B | 78% | 74 hp | 96.5 L | - |
Documents
Full specifications
| Bucket Width | 74 in. (1880 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 43.9 gal. (166.4 L) | ↗ |
| Ground Pressure (with optional tracks) | 3.8 psi (0.026 MPa) | ↗ |
| Ground Pressure (with standard tracks) | 5.3 psi (0.036 MPa) | ↗ |
| Height to Hinge Pin | 121.0 in. (3073 mm) | ↗ |
| Horsepower | 74 hp | ↗ |
| Hydraulic High Flow (optional) | 30.5 gpm (115.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.13 MPa) | ↗ |
| Length of Track on Ground | 58.5 in. (1486 mm) | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 3000 lb. (1361 kg) | ↗ |
| Operating Weight | 8555 lb. (3880 kg) | ↗ |
| ROC with Optional Roller Suspension | 2000 lbs. (907 kg) | ↗ |
| Rated Operating Capacity (ROC) | 2100 lb. (953 kg) | ↗ |
| Tipping Load | 6000 lb. (2722 kg) | ↗ |
| Track Width: Optional | 17.7 in. (450 mm) | ↗ |
| Track Width: Standard | 12.6 in. (320 mm) | ↗ |
| Travel Speed: High Range | 10.0 mph (16.0 km/hr.) | ↗ |
| Travel Speed: Single Speed | 6.6 mph (10.6 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
