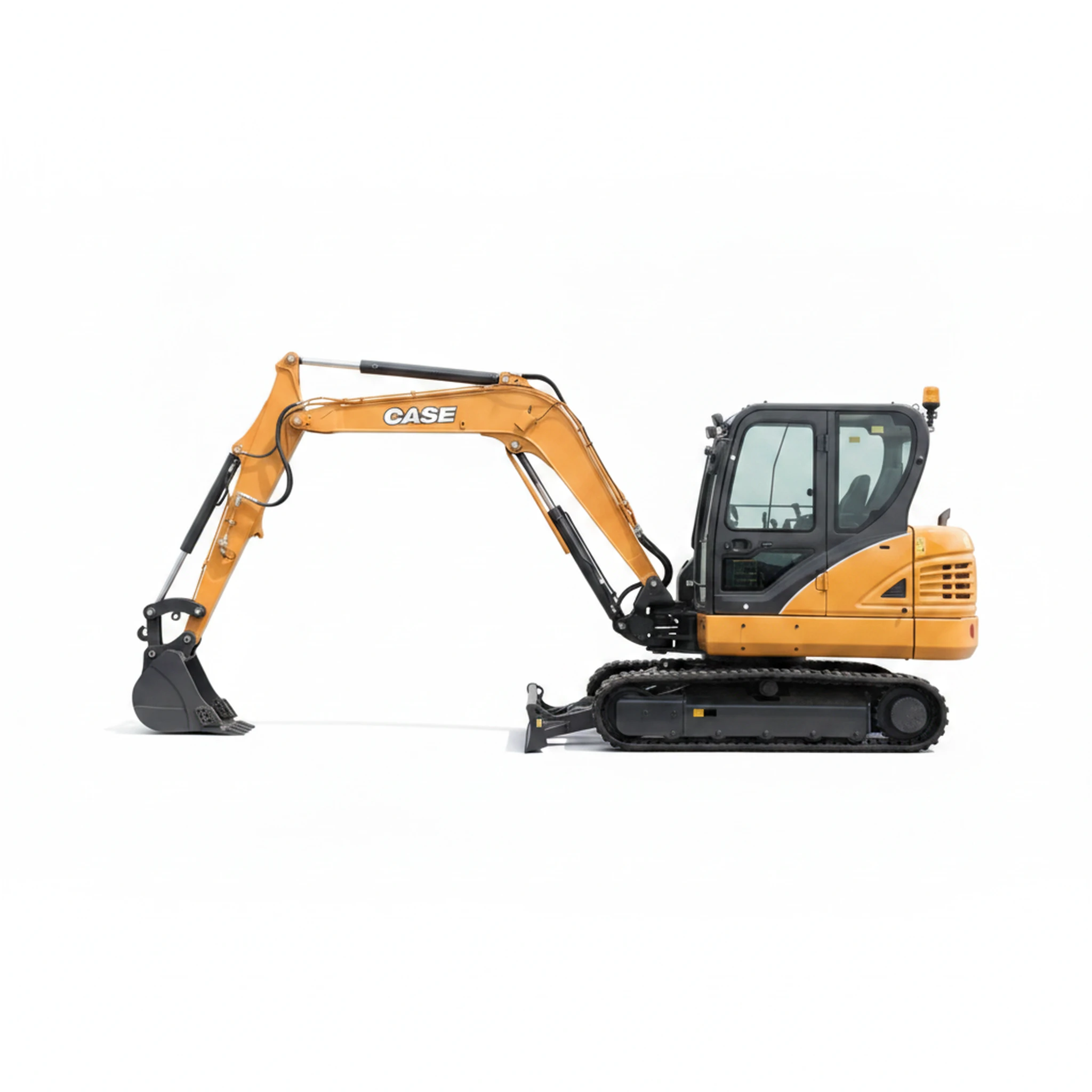

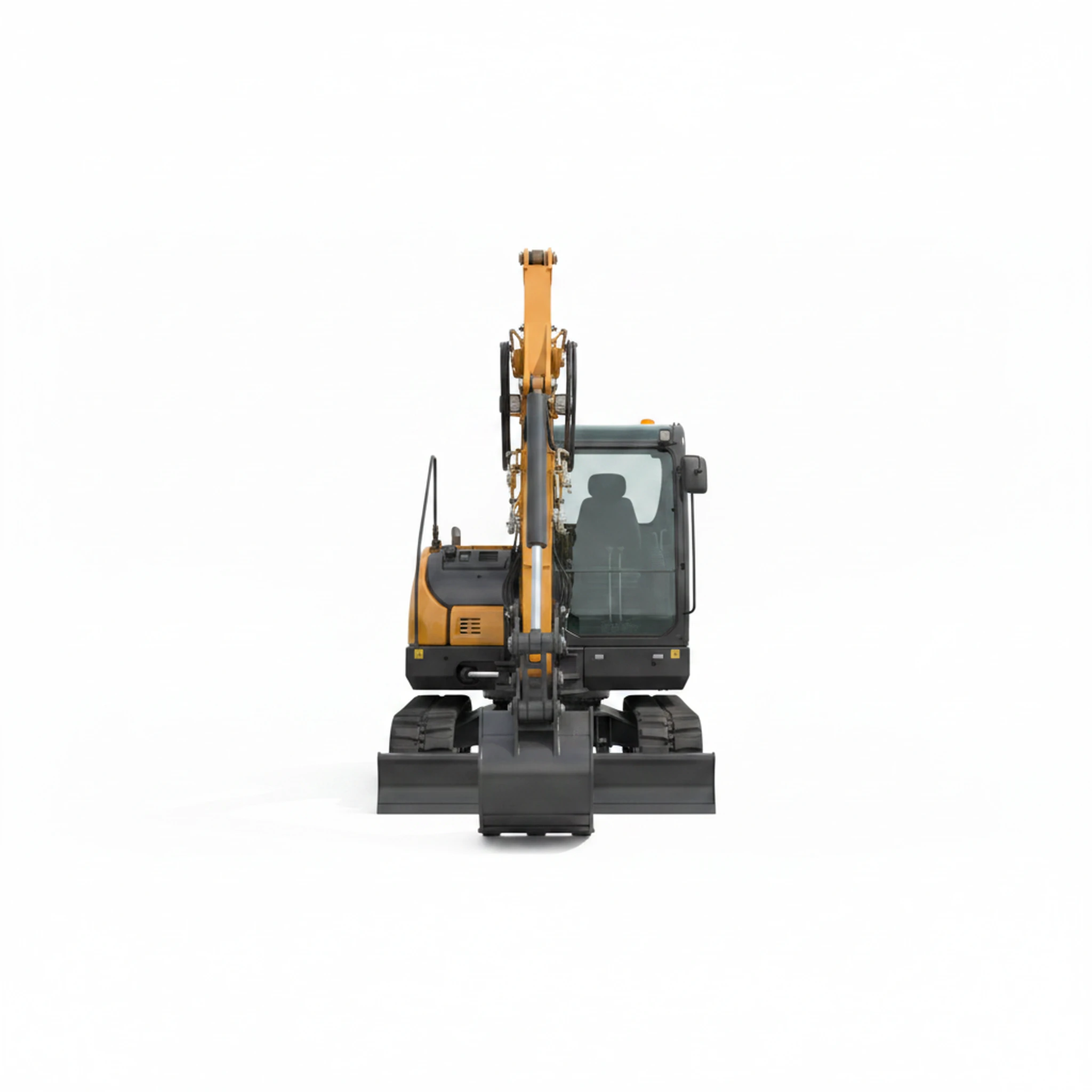

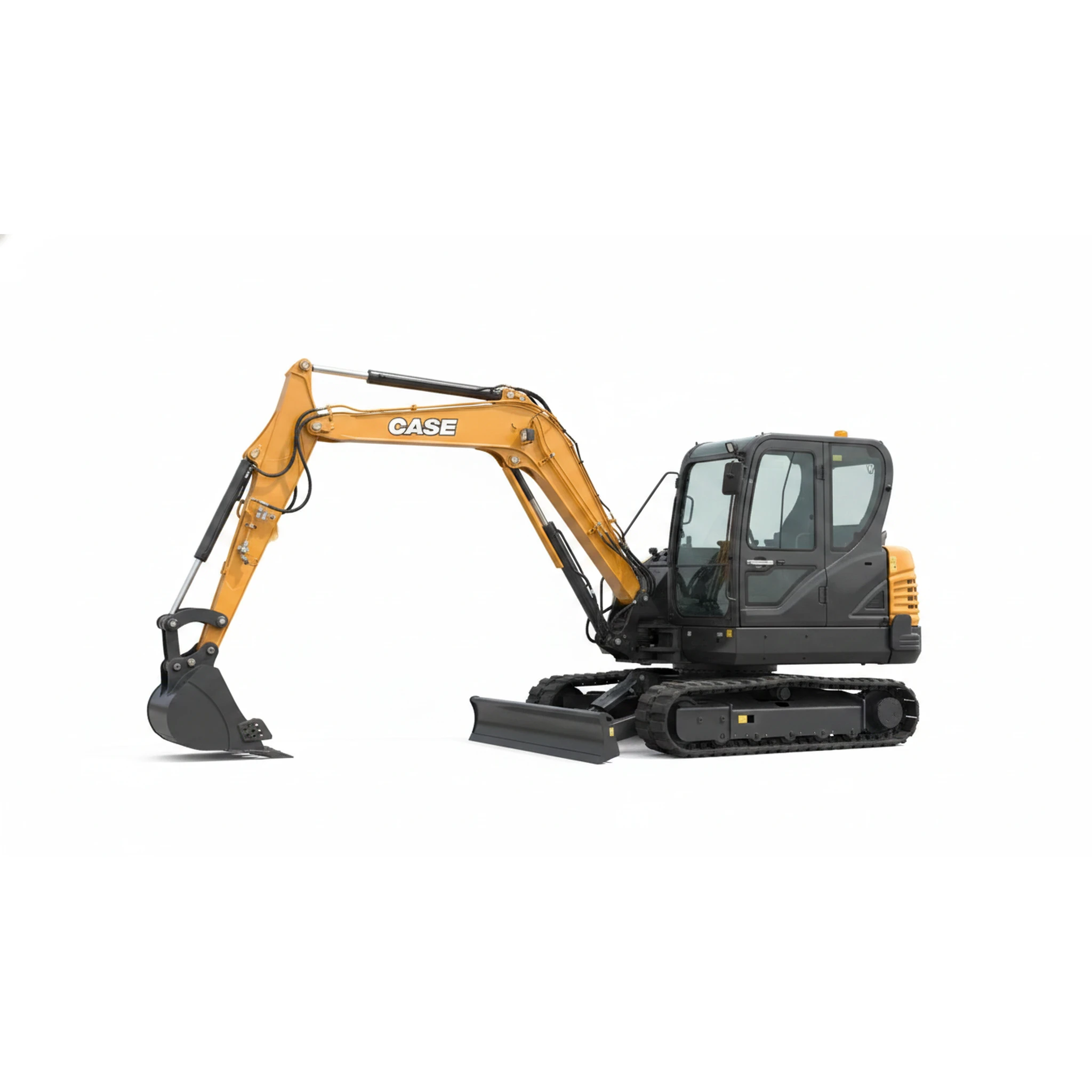

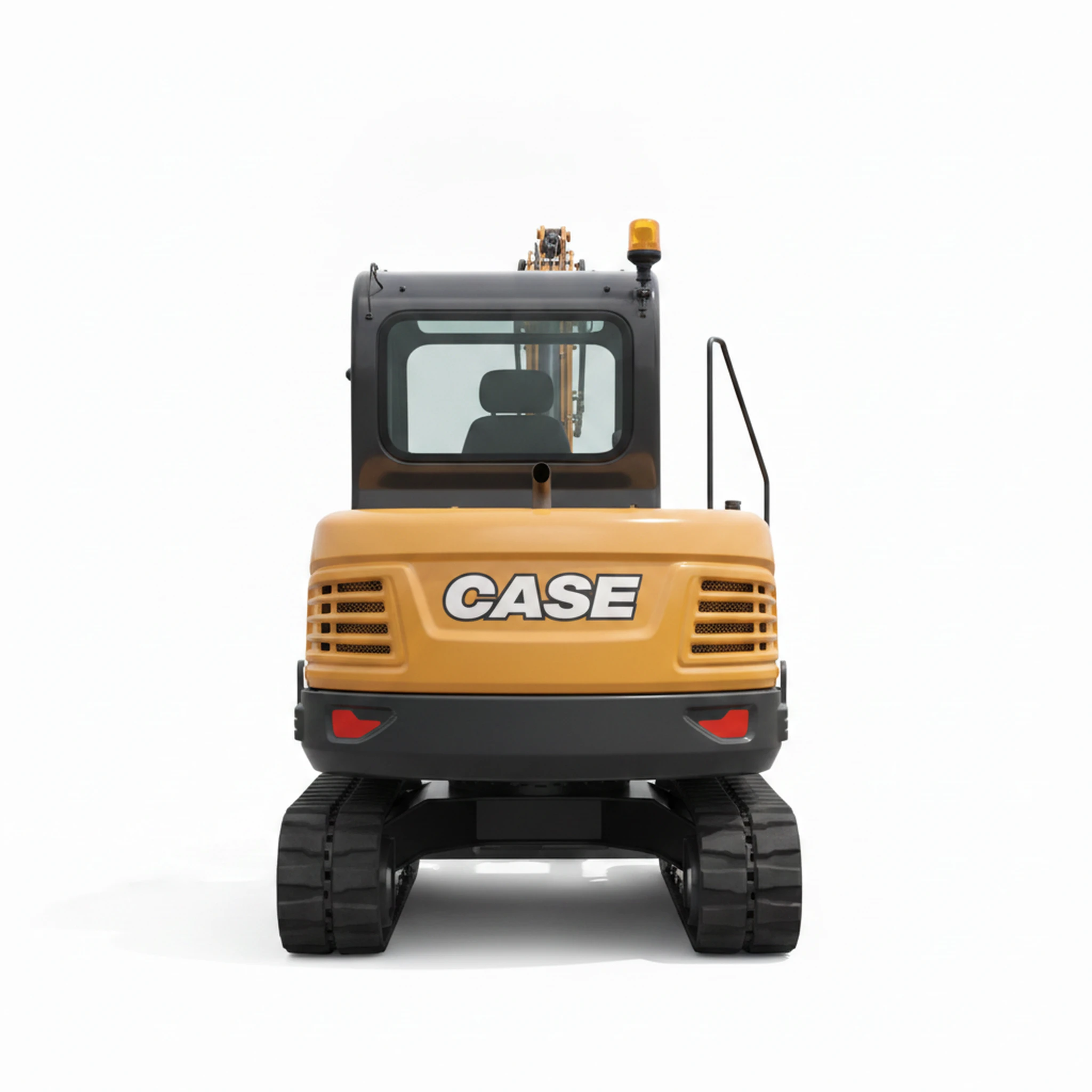

Case
CX57C
65 hp
Engine power
12.5 ft (3.8 m)
Max dig depth
12,269 lb (5,565 kg)
Operating weight
42.4 kN
bucket digging force
120 L
fuel tank capacity
0.3 kgf/cm2
ground pressure
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max dig depth | Operating weight |
|---|---|---|---|---|
| Hitachi ZX55U-6EB | 98% | - | 12.6 ft (3.8 m) | 11,751 lb (5,330 kg) |
| New Holland E57C | 97% | - | 12 ft (3.7 m) | 12,050 lb (5,466 kg) |
| Wacker Neuson ET58 | 96% | - | 13.2 ft (4.0 m) | 12,608 lb (5,719 kg) |
| Bobcat E55 | 94% | - | 11.4 ft (3.5 m) | 11,876 lb (5,387 kg) |
| New Holland E60D | 94% | - | 12 ft (3.7 m) | 13,162 lb (5,970 kg) |
| Bobcat E48 | 93% | - | 12.4 ft (3.8 m) | 10,666 lb (4,838 kg) |
Documents
Full specifications
| Cylinders | 4 | ↗ |
| Electrical System | 12 volt | ↗ |
| Engine | Yanmar 4TNV98C | ↗ |
| Heavy Counterweight | 220 lb (100 kg) | ↗ |
| LCD Display Size | 5.7 in (14.5 cm) | ↗ |
| Optional Long Arm | 6.2 ft (1.9 m) | ↗ |
| Power Outlet | 12 V | ↗ |
| Swing Boom Left | 80 ° | ↗ |
| Swing Boom Right | 50 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
