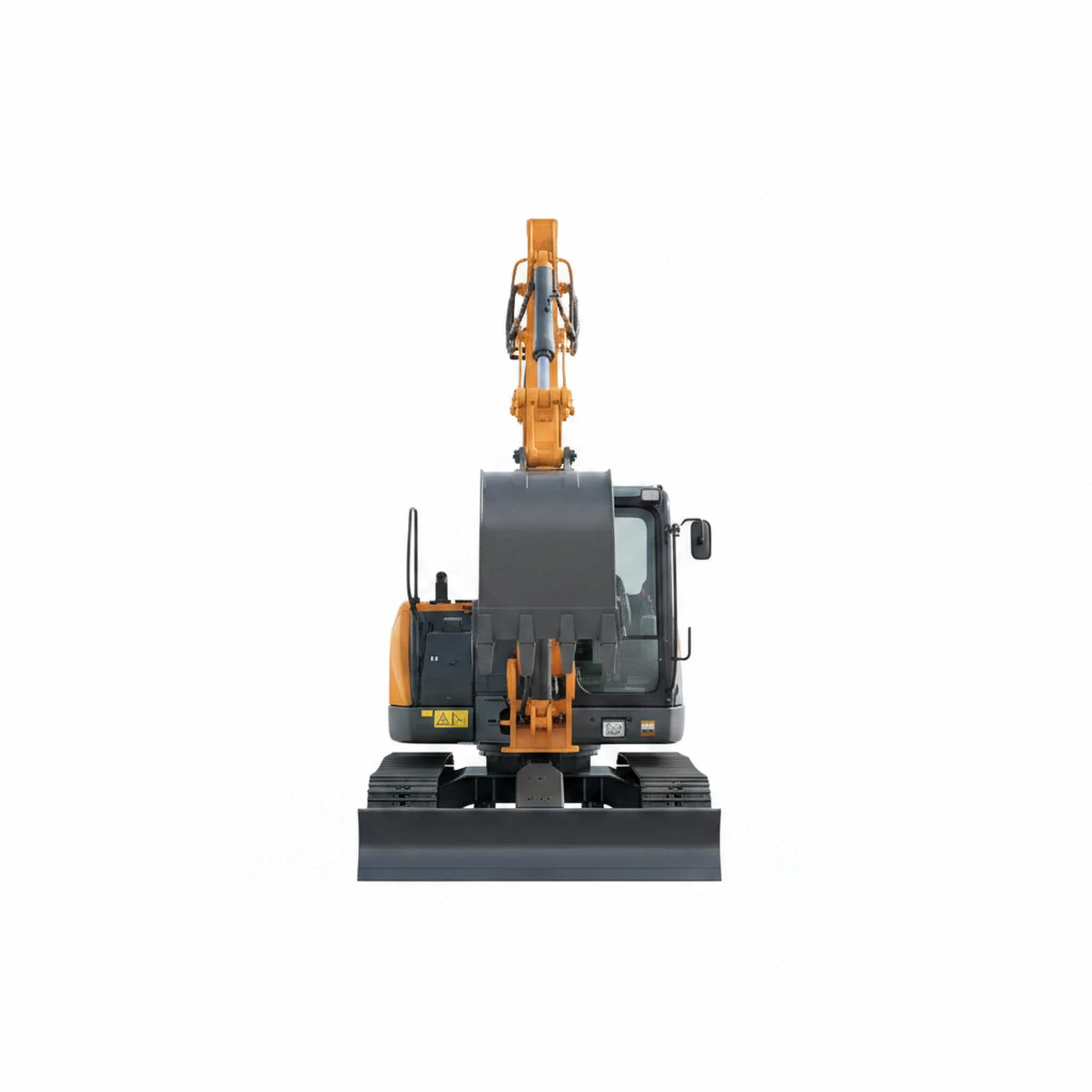

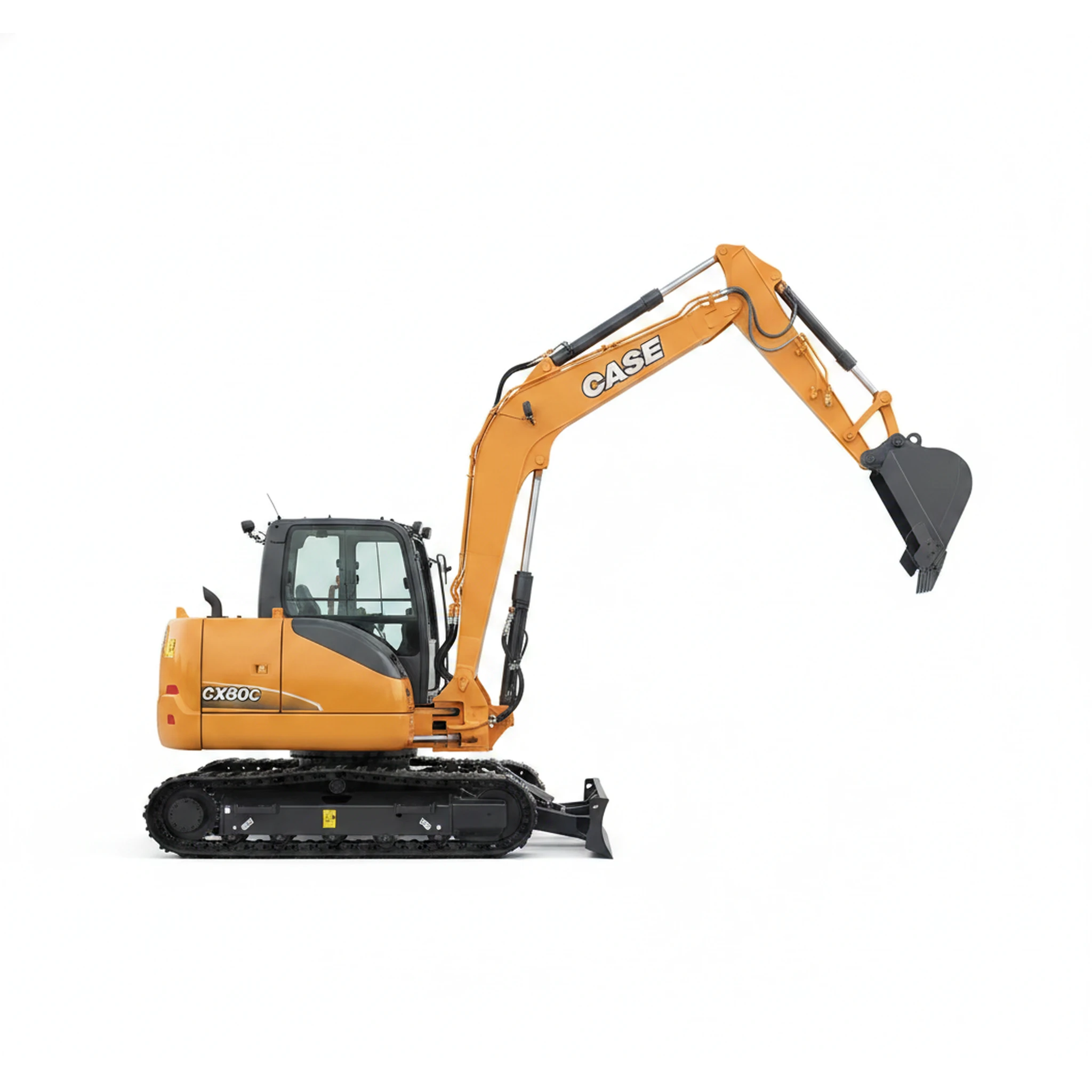

Case
CX80C
55 hp
Engine power
13.7 ft (4.2 m)
Max dig depth
56.9 kN
bucket digging force
120 L
fuel tank capacity
0.4 bar
ground pressure
23.3 ft (7.1 m)
max dig radius
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max dig depth | bucket digging force |
|---|---|---|---|---|
| Takeuchi TB290 | 87% | 69 hp | - | - |
| Hitachi ZX95US-USB-7 | 86% | 68 hp | 15.3 ft (4.7 m) | - |
| New Holland E85D | 83% | 73 hp | 12.5 ft (3.8 m) | - |
| Takeuchi TB280FR | 82% | 69 hp | - | - |
| Hyundai Construction Equipment R140LC-9S | 61% | 110 hp | 19.3 ft (5.9 m) | - |
| Volvo EC140E | 61% | 121 hp | 18 ft (5.5 m) | - |
Documents
Full specifications
| Cylinders | 4 | ↗ |
| Displacement | 133 in3 (2.2 L) | ↗ |
| Drawbar Pull | 59.2 kN | ↗ |
| Electrical System | 24 V | ↗ |
| Engine (ISO 14396) | 41.2 kW | ↗ |
| Engine Model | Isuzu AP-4LE2X (Tier 4 Final) | ↗ |
| Engine Power | 41.2 kW | ↗ |
| Max Torque | 199 Nm | ↗ |
| Max Travel Speed | 5.1 km/h | ↗ |
| Operating Weight | 19,489 lb (8,840 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
