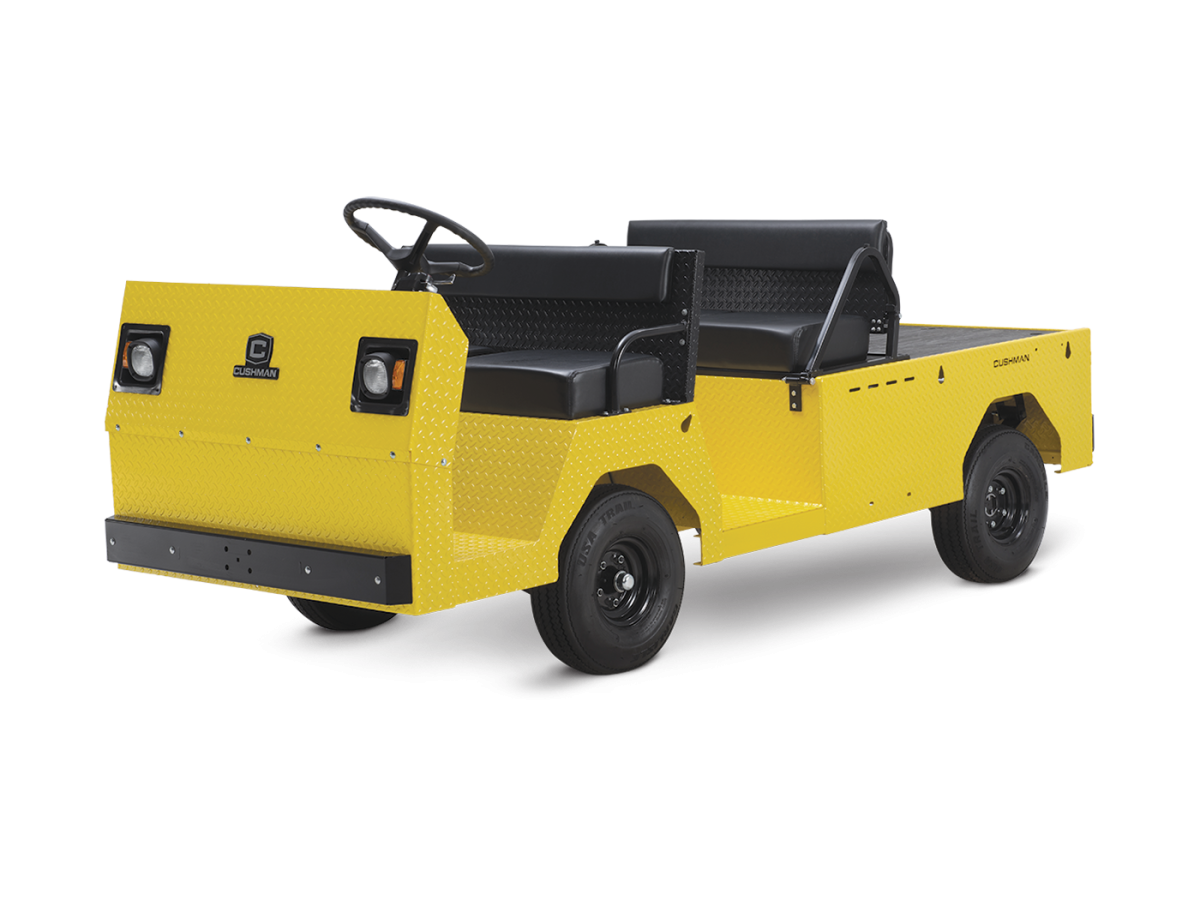

Cushman
Titan XD
3,000 lb (1,361 kg)
Load capacity
Documents
Full specifications
| Battery | Eight, 6V Deep Cycle, Swing Out | ↗ |
| Bed Load Capacity | 2,600 lb (1,179 kg) | ↗ |
| Curb Weight | 1,756 lb (797 kg) | ↗ |
| Ground Clearance | 4.8 in (12.1 cm) | ↗ |
| Horsepower | 17.2 hp | ↗ |
| Maximum Speed | 14 mph | ↗ |
| Overall Height | 47 in (119 cm) | ↗ |
| Overall Length | 114 in (290 cm) | ↗ |
| Overall Width | 44.5 in (113 cm) | ↗ |
| Speed Controller | 450 Amp AC | ↗ |
| Towing Capacity | 8,000 lb (3,629 kg) | ↗ |
| Vehicle Load Capacity | 3,000 lb (1,361 kg) | ↗ |
| Weight Without Batteries | 1,260 lb (572 kg) | ↗ |
| Wheelbase | 72 in (183 cm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
